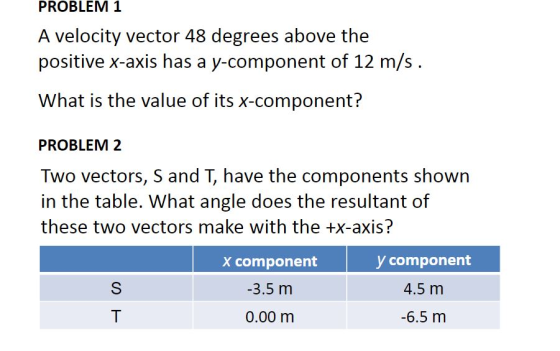

PROBLEM 1 A velocity vector 48 degrees above the positive x-axis has a y-component of 12 m/s. What is the value of its x-component? PROBLEM 2 Two vectors, S and T, have the components shown in the table. What angle does the resultant of these two vectors make with the +x-axis? x component -3.5 m 0.00 m y component 4.5 m -6.5 m

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

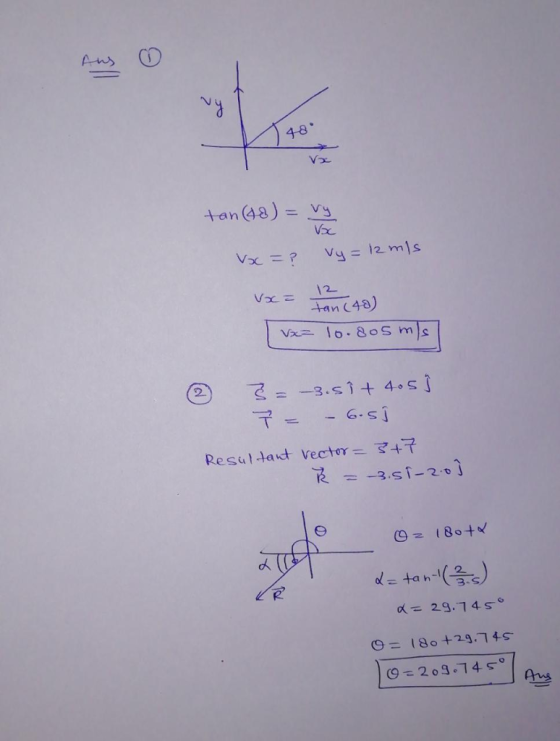

4-8 tan(48) = 12 v lo.OS ms 3-S α = 29.74 so (9 203-7 45。 ees

0 0
Add a comment
Know the answer?
Add Answer to:
PROBLEM 1 A velocity vector 48 degrees above the positive x-axis has a y-component of 12...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A velocity vector 47 ∘ above the positive x-axis has a y-component of 11 m/s ....

    A velocity vector 47 ∘ above the positive x-axis has a y-component of 11 m/s . What is the value of its x-component?

  • what angle does the velocity vector make with the +x-axis and the -y-axis? Required information Problem...

    what angle does the velocity vector make with the +x-axis and the -y-axis? Required information Problem 02.017-Velocity vector of a sprinting cheetah - DEPENDENT MULTI-PART PROBLEM-ASSIGN ALL PARTS The velocity vector of a sprinting cheetah has x- and y-components vy+33.4 m/s and vy-26.3 m/s. Problem 02.017.a- Magnitude of the velocity vector What is the magnitude of the velocity vector? m/s

  • A vector has an x-component of 15.0 m/s and a y-component of -5.0 m/s. E.Determine the...

    A vector has an x-component of 15.0 m/s and a y-component of -5.0 m/s. E.Determine the magnitude of the vector (include units with answer) What is the angle of the vector of Part E measured counterclockwise (CCW) from the positive x-axis? Answer must within 0.5 degrees (include units with answer) F. A vector has an x-component of -13.8 m/s and a y-component of -4.6 m/s. What is the angle of the vector measured counterclockwise (CCW) from the positive x-axis? Answer...

  • 1.) Vectors Can the x or y component of a vector ever have a greater magnitude...

    1.) Vectors Can the x or y component of a vector ever have a greater magnitude than the vector itself has? Yes. The x component can, but the y component cannot. Yes, but only when the x and y components have equal magnitudes. Yes. Both components can. Yes. The y component can, but the x component cannot. No. Neither component can. 2.) A force vector has a magnitude of 370 newtons (N) and points at an angle of 53.0° below...

  • need help in solving these problems. thank you Geometric and Component Vector Addition 7 of 10...

    need help in solving these problems. thank you Geometric and Component Vector Addition 7 of 10 Learning Goal To use geometric and component addition of What are the magnitude and direction of the resultant vector, R, when the parallelogram law is applied to A and B? Express the magnitude to three significant figures. Express the angle to one decimal place, measured counterclockwise from the positive xaxis. Separate your answers by a comma. Four vectors A, B, C, and D are...

  • Part C please! Homework 1 (Chapter 2) Geometric and Component Vector Addition 14 of 14 Learning...

    Part C please! Homework 1 (Chapter 2) Geometric and Component Vector Addition 14 of 14 Learning Goal: To use geometric and component addition of vectors. Correct Four vectors A, B, C, and D are shown (not to scale). Vector A has magnitude 20.9 and acts at an angle of 13.9 degrees with respect to the positive x axis. Vector B has magnitude 13.1 and acts at an angle of 66.7 degrees with respect to the positive x axis. Vector C...

  • 1) What are the x and y components of this vector? x-component: 2) y-component 3)The x...

    1) What are the x and y components of this vector? x-component: 2) y-component 3)The x component of a vector is 12.5 m and the y component of a vector is 25 m. What is the magnitude and direction (with respect to the positive x-axis) of this vector? magnitude: 4)direction: A vector has a magnitude of A = 16.5 m and makes an angle of 0 = 5.4 ° with the negative x-axis. A

  • 5。00 The x-component of a velocity vector that has an angle of 37° to the +x-axis...

    5。00 The x-component of a velocity vector that has an angle of 37° to the +x-axis has a magnitude of 4.8 m/s. (a) What is the magnitude of the velocity? (b) What is the magnitude of the y-component of the velocity?

  • Z- A+B+C+D Z:x component Z: y component W=A-B-C+D W :x component W: y component in the...

    Z- A+B+C+D Z:x component Z: y component W=A-B-C+D W :x component W: y component in the dagram tothe let Vecor A has a magnitude of 5.8 units and makes an angle of 31 degrees with respect to the positive x axis. Vector B has a magnitude of S units and makes an angle of 53.1 degrees with respect to the negative x axis. 53 319 What are the components of the resultant of: A+B

  • MAE 241-002 Fall 2018 David Extra Credit 1 Geometric and Component Vector Addition 1 of2 View...

    MAE 241-002 Fall 2018 David Extra Credit 1 Geometric and Component Vector Addition 1 of2 View Available Hint(s) Learning Goal: To use geometric and component addition of vectors. Four vectors A, B, C, and D are shown (not to scale). Vector A has magnitude 16.1 and acts at an angle of 16.9 degrees with respect to the positive x axis. Vector B has magnitude 13.3 and acts at an angle of 70.1 degrees with respect to the positive x axis....
