Calculate the shear modulus for a given cylindrical metal specimen and test results of T= 1500...

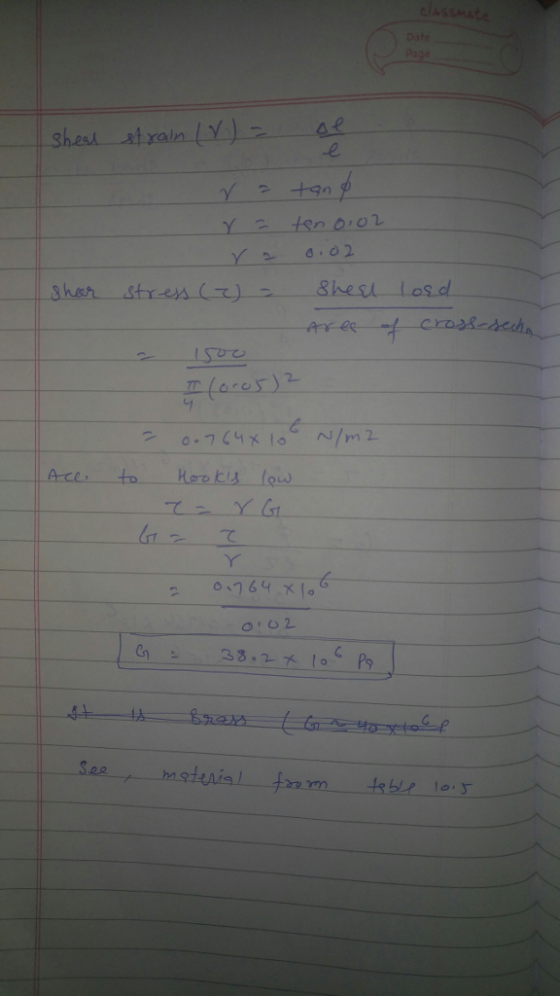

Calculate the shear modulus for a given cylindrical metal specimen and test results of T= 1500 N·m, L= 20 cm, D= 5cm, φ= 0.02 rad. Can you guess what the material may be? (hint, use shear modulus eqn then look up value on Table 10.5 to determine material)
Homework Answers
Add Answer to:
