Please help with all three parts
Three point charges are at z 1.2m F Value
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

q1 = 18 μC, x1 = 0, q2 = 32 μC, x2 = 0.60 m, q3 = -10 μC, x3 = 1.2 m

A) force on q1 = -kq1q2/(x2 - x1)^2 + kq1|q3|/(x3 - x1)^2 = -13.1 N
q1 = (-9*10^9*18*10^-6*32*10^-6)/(0.60-0)^2 + (9*10^9*18*10^-6*10*10^-6)/(1.2-0)^2
q1 = 13.27 N

B) force on q2 = kq1q2/(x2 - x1)^2 + kq2|q3|/(x3 - x2)^2 = 22.4 N

C) force on q3 = -kq1|q3|/(x3 - x1)^2 - kq2|q3|/(x3 - x2)^2 = -9.12 N

0 0
Add a comment
Know the answer?
Add Answer to:
Please help with all three parts Three point charges are at z 1.2m F Value
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Help with all parts Four 6 mu C point charges are at the corners of a...

    Help with all parts Four 6 mu C point charges are at the corners of a square of side 5 m. Find the potential at the center of the square (relative to zero potential at infinity) for each of the following conditions. All the charges are positive kV Submit Three of the charges are positive and one is negative kV Submit Two are positive and two are negative kV Submit

  • HELP WITH ALL THREE PLEASE!! 1.) Two point charges are fixed on the y axis: a...

    HELP WITH ALL THREE PLEASE!! 1.) Two point charges are fixed on the y axis: a negative point charge q1 = -26 µC at y1 = +0.23 m and a positive point charge q2 at y2 = +0.30 m. A third point charge q = +9.0 µC is fixed at the origin. The net electrostatic force exerted on the charge q by the other two charges has a magnitude of 20 N and points in the +y direction. Determine the...

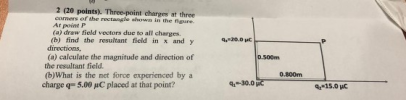

  • please help with ALL the parts to the question: A B and A and B 2...
