Sheet pile Draw a flow net for a single row of sheet piles driven into a...

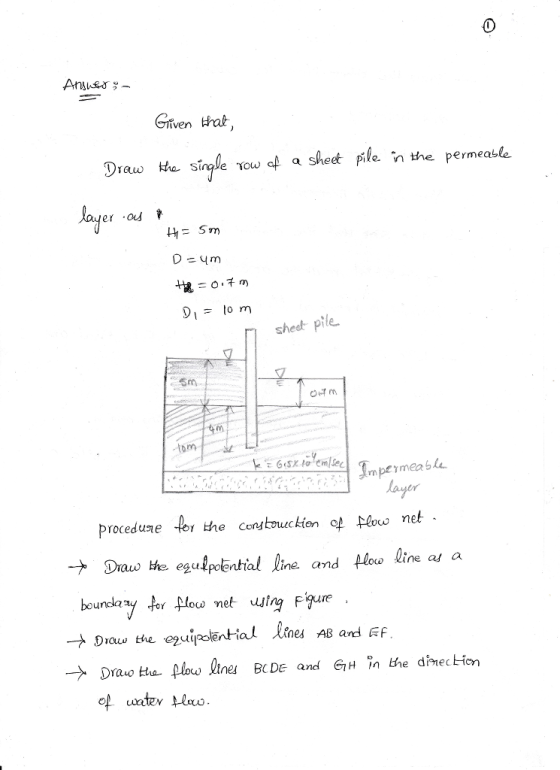

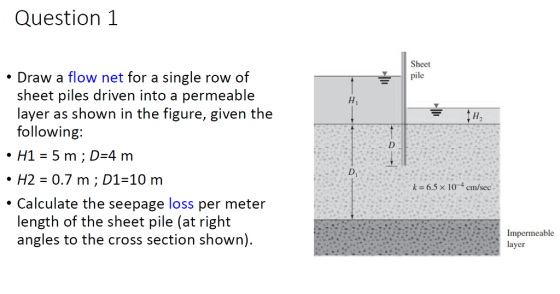

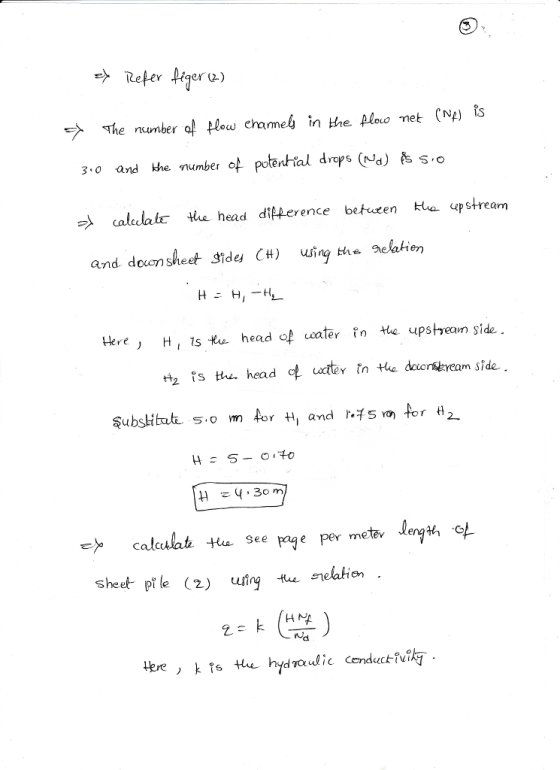

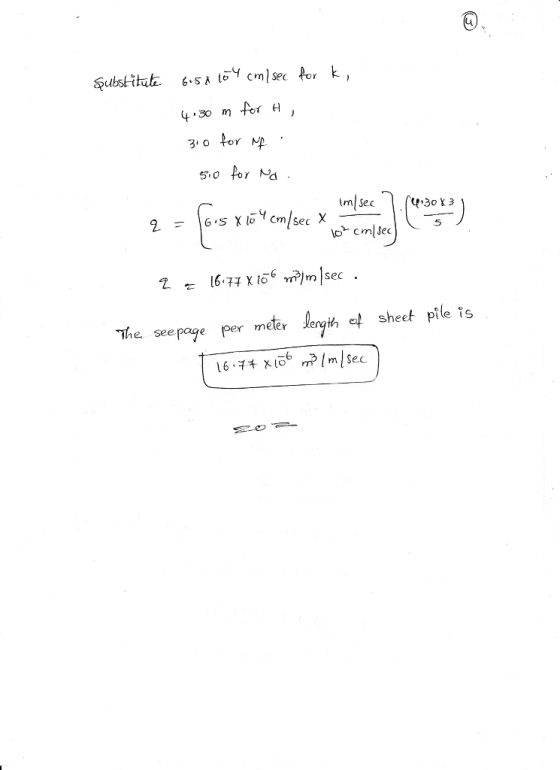

Sheet pile Draw a flow net for a single row of sheet piles driven into a permeable layer as shown in the figure, given the following: Hi H, H2-0.7 m; D1-10 m Calculate the seepage loss per meter length of the sheet pile (at right angles to the cross section shown) k6.5x 104em/see Impermeable layer
PROBLEM 3 (25 PTS) A lau net for the assessment of low around a single row f sheet piles in a per...
PROBLEM 3 (25 PTS) A lau net for the assessment of low around a single row f sheet piles in a permeable soil layer is shown below. (A) Calculate the poreavater pressure at points a and "d," ground surface, respectively. (B) If the piles have bee ground surface, calculate the uct pressura acting at the bottom and of the sheet pile ic, the difference in water pressures acting on the back and front sides of the wall. (Unit weight of...
Draw a flow network for a sheet pile in a waterproof layer as shown in the...
Draw a flow network for a sheet pile in a waterproof layer as shown in the figure. The values are; H1 5m, H2 0.7m, D 4m and D1 = 10m. Calculate the infiltration loss. Tablaestaca H н, k 6.5 x10-4cm/s Estrato impermeable
Draw a flow network for a sheet pile in a waterproof layer as shown in the figure. The values are; H1 5m, H2 0.7m, D 4m and D1 = 10m. Calculate the infiltration loss. Tablaestaca H н, k...
Problem 3 Calculate the seepage loss per meter length of the sheet pile as shown in...
Problem 3 Calculate the seepage loss per meter length of the sheet pile as shown in Fig. 3. Given that: H 6 m, H2-1.5 m, and permeability of the soil, k 4x10 cm/sec Sheet pile Water level Water level H2 Soi 2Impervious layer3s Fig. 3 for Problem 3
2) Find the flow rate in m/sec/m length (at right angles to the cross section shown)...
2) Find the flow rate in m/sec/m length (at right angles to the cross section shown) through the permeable soil layer shown in figure below given H=8m, Hı=3m, h=4m, L=50 m, a=8°, and k=0.08 cm/sec. H Direction of flow Impervious layer Permeable layer
(1) The flow net with approximate square cells for a concrete dam is shown. The silt...
(1) The flow net with approximate square cells for a concrete dam is shown. The silt has a hydraulic conductivity of 0.2 ft hr. (a) What is the approximately seepage rate (ft/hr/ft)? (b) What are the total head (hr), elevation head (he), and pressure head (h) at points A and B h e (ft) he (ft) hrift) Point A (2) The flow net with approximate square cells for a single sheet pile is shown as below. The hydraulic conductivity of...
Question 1: For the flow net shown in the figure below the sheet pile, what is...
Question 1:
For the flow net shown in the figure below the sheet pile, what
is the flow rate per foot? Given: H1 = 46 ft,
H2 = 2 ft, k = 2.06x 10-4
ft/sec.
QUESTION 1 For the flow net shown in the figure below the sheet pile, what is the flow rate per foot? Given: H1 - 46 ft, H2 = 2 ft, k = 2.06x 10-4 ft/sec. = II, a. 1.18 x 10-3cfs/ft b.2.94 x 10-3cfs/ft C....
Internet Explore $687081941 35738676269802sSielSBN-97813059711968nbid 10185538ksnapshotid-1 0185538id 40866380548 AP Refer to the figure below Sheet pile Hy...
Internet Explore $687081941 35738676269802sSielSBN-97813059711968nbid 10185538ksnapshotid-1 0185538id 40866380548 AP Refer to the figure below Sheet pile Hy H2 0%) Di 4 x 10-4cm/se Impermesble layer Given H1-5 m, H -1.7 m, D -3 m, and D,-6m The result of the flow net study gave Ne- 4 and Na-8 Calculate the sepage loss per meter length of the Round your final answer to three significant figures Seepage lossday/m Submt Next
Problem 13 a. Draw the flow net for the dam shown below (datum is at the...
Problem 13 a. Draw the flow net for the dam shown below (datum is at the 54 ft bedrock-soil interface). The dam has a 36-ft sheet pile driven into the granular soil layer. Redraw the schematic to scale. Use solid 24 ft 21 ft lines to indicate flow lines and dashed lines to indicate Soil equipotential lines. b. Calculate the rate of seepage at 36 ft the exit of the dam in ft/day per 60 ft Sheet pile unit width...
9. Estimate the flow rate for the sheet pile shown below, with H1-15m, H2-5m, k- 3...
9. Estimate the flow rate for the sheet pile shown below, with H1-15m, H2-5m, k- 3 x10-6 m/sec, and a homogeneous soil layer of 5m and a sheet pile embedment of a) lm, b) 2m and c) 3m. Use the given flow net and compare results with the approximate designs given in the sheet pile chart discussed in the lecture notes. Sheet pile Water level Water level Impervious
Sheet pile Draw a flow net for a single row of sheet piles driven into a permeable layer as shown in the figure, given the following: Hi H, H2-0.7 m; D1-10 m Calculate the seepage loss per meter length of the sheet pile (at right angles to the cross section shown) k6.5x 104em/see Impermeable layer
PROBLEM 3 (25 PTS) A lau net for the assessment of low around a single row f sheet piles in a permeable soil layer is shown below. (A) Calculate the poreavater pressure at points a and "d," ground surface, respectively. (B) If the piles have bee ground surface, calculate the uct pressura acting at the bottom and of the sheet pile ic, the difference in water pressures acting on the back and front sides of the wall. (Unit weight of...
Draw a flow network for a sheet pile in a waterproof layer as shown in the figure. The values are; H1 5m, H2 0.7m, D 4m and D1 = 10m. Calculate the infiltration loss. Tablaestaca H н, k 6.5 x10-4cm/s Estrato impermeable
Draw a flow network for a sheet pile in a waterproof layer as shown in the figure. The values are; H1 5m, H2 0.7m, D 4m and D1 = 10m. Calculate the infiltration loss. Tablaestaca H н, k...
Problem 3 Calculate the seepage loss per meter length of the sheet pile as shown in Fig. 3. Given that: H 6 m, H2-1.5 m, and permeability of the soil, k 4x10 cm/sec Sheet pile Water level Water level H2 Soi 2Impervious layer3s Fig. 3 for Problem 3
2) Find the flow rate in m/sec/m length (at right angles to the cross section shown) through the permeable soil layer shown in figure below given H=8m, Hı=3m, h=4m, L=50 m, a=8°, and k=0.08 cm/sec. H Direction of flow Impervious layer Permeable layer
(1) The flow net with approximate square cells for a concrete dam is shown. The silt has a hydraulic conductivity of 0.2 ft hr. (a) What is the approximately seepage rate (ft/hr/ft)? (b) What are the total head (hr), elevation head (he), and pressure head (h) at points A and B h e (ft) he (ft) hrift) Point A (2) The flow net with approximate square cells for a single sheet pile is shown as below. The hydraulic conductivity of...
Question 1:
For the flow net shown in the figure below the sheet pile, what
is the flow rate per foot? Given: H1 = 46 ft,
H2 = 2 ft, k = 2.06x 10-4
ft/sec.
QUESTION 1 For the flow net shown in the figure below the sheet pile, what is the flow rate per foot? Given: H1 - 46 ft, H2 = 2 ft, k = 2.06x 10-4 ft/sec. = II, a. 1.18 x 10-3cfs/ft b.2.94 x 10-3cfs/ft C....
Internet Explore $687081941 35738676269802sSielSBN-97813059711968nbid 10185538ksnapshotid-1 0185538id 40866380548 AP Refer to the figure below Sheet pile Hy H2 0%) Di 4 x 10-4cm/se Impermesble layer Given H1-5 m, H -1.7 m, D -3 m, and D,-6m The result of the flow net study gave Ne- 4 and Na-8 Calculate the sepage loss per meter length of the Round your final answer to three significant figures Seepage lossday/m Submt Next
Problem 13 a. Draw the flow net for the dam shown below (datum is at the 54 ft bedrock-soil interface). The dam has a 36-ft sheet pile driven into the granular soil layer. Redraw the schematic to scale. Use solid 24 ft 21 ft lines to indicate flow lines and dashed lines to indicate Soil equipotential lines. b. Calculate the rate of seepage at 36 ft the exit of the dam in ft/day per 60 ft Sheet pile unit width...
9. Estimate the flow rate for the sheet pile shown below, with H1-15m, H2-5m, k- 3 x10-6 m/sec, and a homogeneous soil layer of 5m and a sheet pile embedment of a) lm, b) 2m and c) 3m. Use the given flow net and compare results with the approximate designs given in the sheet pile chart discussed in the lecture notes. Sheet pile Water level Water level Impervious
