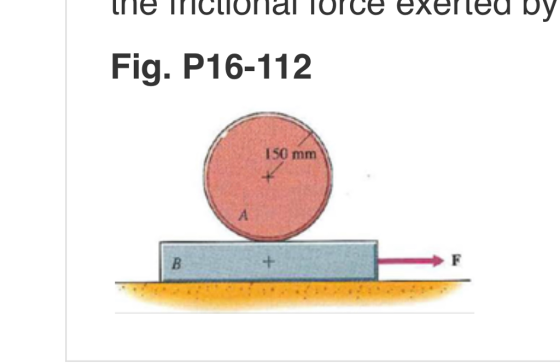

A 50-kg solid circular cylinder A rests on a 35-kg block B as
shown in Fig. P16-112. When a force F is applied to the block, the
block accelerates at a rate of 5 m/s2. If the coefficients of
friction between the block and the cylinder and between the block
and the horizontal surface are both μs = μk = 0.25, determine the
magnitude of F and the frictional force exerted by the block on the
cylinder.

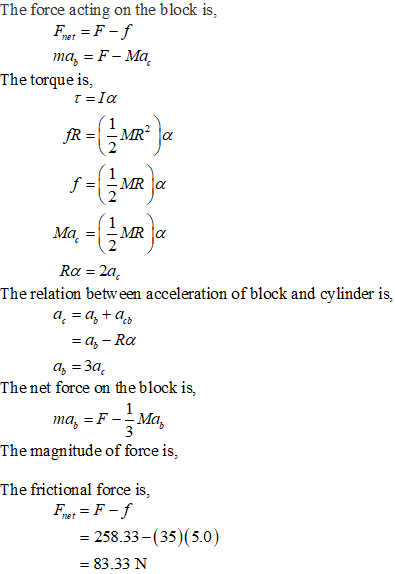

Homework Answers
