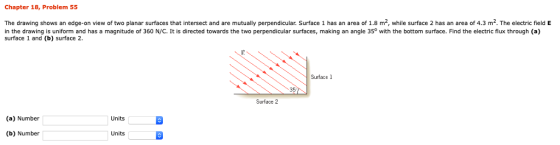

Chapter 18, Problem 55 The drawing shows an edge-on view of two planar surfaces that intersect...
The drawing shows an edge-on view of two planar surfaces that intersect and are mutually perpendicular....
The drawing shows an edge-on
view of two planar surfaces that intersect and are mutually
perpendicular. Surface 1 has an area of 1.7 m2, while surface 2 has
an area of 4.3 m2. The electric field E in the drawing is uniform
and has a magnitude of 320 N/C. It is directed towards the two
perpendicular surfaces, making an angle 35o with the bottom
surface. Find the electric flux through (a) surface 1 and (b)
surface 2.
The drawing shows an edge-on view of two planar surfaces that intersect and are mutually perpendicular....
The drawing shows an edge-on view of two planar surfaces that intersect and are mutually perpendicular. Surface 1 has an area of 2.0 m2, while surface 2 has an area of 2.5 m2. The electric field E in the drawing is uniform and has a magnitude of 210 N/C It is directed towards the two perpendicular surfaces, making an angle 350 ith the bottom surface. Find the electric flux through (a) surface 1 and (b) surface 2. Surface 1 35...
The drawing shows an edge-on view of two planar surfaces that intersect and are mutually perpendicular....
The drawing shows an edge-on view of two planar surfaces that intersect and are mutually perpendicular. Surface 1 has an area of 1.9 m^2, while surface 2 has an area of 3.5 m^2. The electric field E in the drawing is uniform and has a magnitude of 245 N/C. (a) Find the electric flux through surface 1. N middot m^2/C (b) Find the electric flux through surface 2. N middot m^2/C
The drawing shows an edge-on view of two planar surfaces that intersect and are mutually perpendicular....
The drawing shows an edge-on view of two planar surfaces that
intersect and are mutually perpendicular. Surface (1) has an area
of 1.90 m², while surface (2) has an area of 3.40 m². The electric
field in the drawing is uniform and has a magnitude of 275 N/C.
Find the magnitude of the electric flux through surface (1) if the
angle ? made between the electric field with surface (2) is
36.0°.
Put answer in Nm^2/C
https://general.physics.rutgers.edu/gifs/CJ/18-81.jpg
The drawing shows an edge-on
view of two planar surfaces that intersect and are mutually
perpendicular. Surface 1 has an area of 1.7 m2, while surface 2 has
an area of 4.3 m2. The electric field E in the drawing is uniform
and has a magnitude of 320 N/C. It is directed towards the two
perpendicular surfaces, making an angle 35o with the bottom
surface. Find the electric flux through (a) surface 1 and (b)
surface 2.
The drawing shows an edge-on view of two planar surfaces that intersect and are mutually perpendicular. Surface 1 has an area of 2.0 m2, while surface 2 has an area of 2.5 m2. The electric field E in the drawing is uniform and has a magnitude of 210 N/C It is directed towards the two perpendicular surfaces, making an angle 350 ith the bottom surface. Find the electric flux through (a) surface 1 and (b) surface 2. Surface 1 35...
The drawing shows an edge-on view of two planar surfaces that intersect and are mutually perpendicular. Surface 1 has an area of 1.9 m^2, while surface 2 has an area of 3.5 m^2. The electric field E in the drawing is uniform and has a magnitude of 245 N/C. (a) Find the electric flux through surface 1. N middot m^2/C (b) Find the electric flux through surface 2. N middot m^2/C
