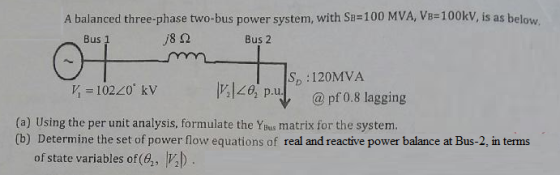

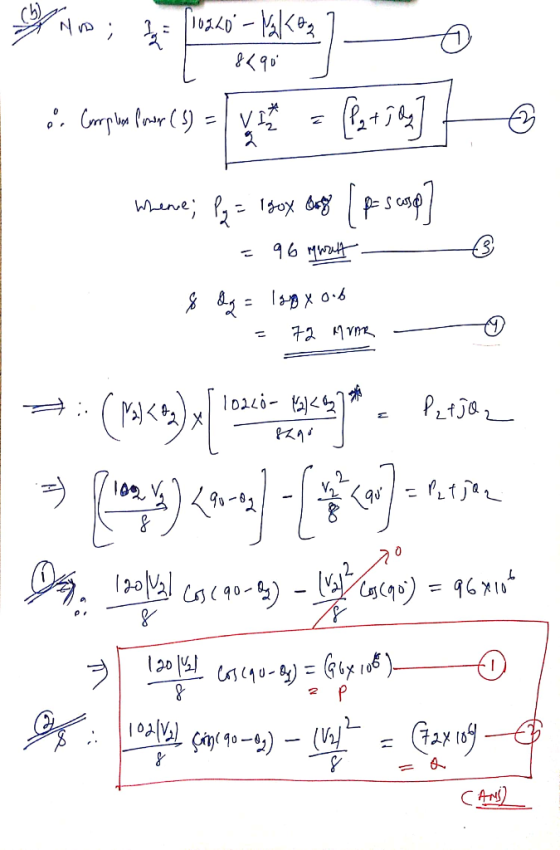

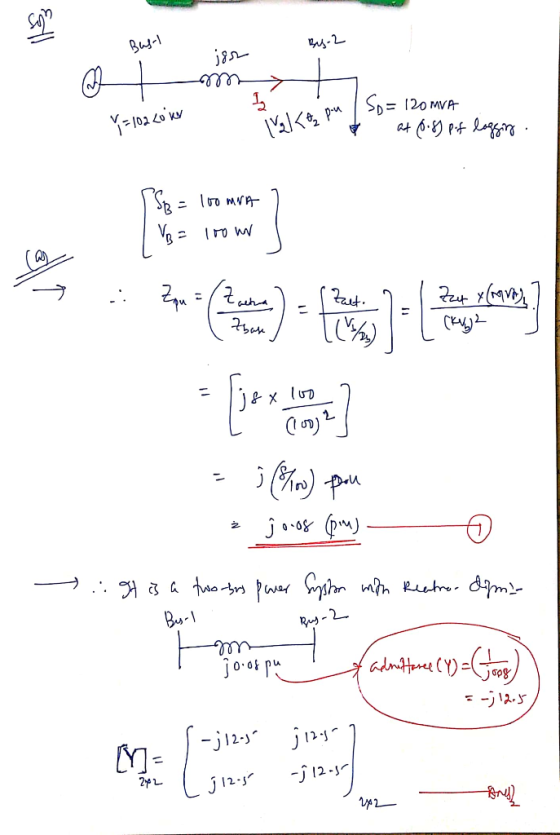

A balanced three-phase two-bus power system, with Sa 100 MVA, VB-100kV, is as below Bus 1...
3. (20pts) A balanced three phase twe-bu power system with S-100 MVA, V-100kv, is below Bus Bus 2 :150MVA @ pf0.8 lagging (1) Using the per unit analysis, formulate the Yes matrix (2) Determine the set of equations that equations that solve the voltage at Bus-2: (, D powver flow equations that solve the voltage at Bus-2: (e,, b G) Choose a reasonable initial guess of(e,. P'D. determine the Newton-Raphson iteration 's) and the power mismatch of the powe the...
Draw the reactance diagram for the power system shown in Fig. 1 on a 1200 MVA base and 26 kV base at G4 If each motor is operating at its rated current and voltage and 0.9 power factor lagging, find the voltage at bus C. Component Ratin 500 MVA, 22 kV 600 MVA, 23 kV 1200 MVA, 24 kV/500 kV 1500 MVA, 500 kV/13.8 kV Each: 400 MVA, 13.8 kV 700 MVA, 26 kV Three single-phase transformers, each 250 MVA,...
6.28 Consider the simplified electric power system shown in Figure 6.17 for which the power- flow solution can be obtained without resorting to iterative techniques. (a) Compute the elements of the bus admittance matrix Ybus. (b) Calculate the phase angle δ, by using the real power equation at bus 2 (voltage-controlled bus). (c) Determine IV and os by using both the real and reactive power equations at bus 3 (load bus). (d) Find the real power generated at bus 1...
Four-bus power system shown in Fig. 1 are as follows: Generator G1: 200 MVA, 7.2 kv, X -0.15 p.u Generator G2: 250 MVA, 9.6 kV, X-0.12 p.u Generator G3: 500 MVA, 10 kV, X-0.25 p.u Transformer T1:200 MVA, 7.2 Δ /132 Y kV, X= 0.05 p.u Transformer T2: 250 MVA, 9.6 Δ /132 Y kV, X =0.15 p.u Transformer T3: 500 MVA, 10 Δ /132 Y kV, x-0.1 p.u Each 132-kV line:X,-10 Ω 1- A three-phase short circuit occurs at...
Please show all the clearly step
Y11 ist j30 and Y44 isnt -j12.85
Consider the 4-bus power system shown in Fig. 1. The system parameters are given below: 50 MVA, 20 kV, X-2090 40 MVA, 20 kV, X-20%, X, = 5% 50 MVA, 20 kV Δ /110 kV Ý, X= 1090 50 MVA, 20 kV MI 10 kV Ý, X= 10% Xi-24.2 Ω Generator G: Motor M: Transformer T1 : Transformer T2 : Transmission line: 3 4 T2 nu)M Fig....
Problem #2: A three-phase synchronous generator is rated 16 kV and 200 MVA, has negligible losses and has reactance of 1.65 pu. The generator is operated on an infinite bus of 15 kV voltage and delivers 100 MVA at 0.8 Power Factor, lagging. a)Determine the internal voltage (E_i), the power angle (5), and the line current of the machine. b)If the field current of the machine is reduced by 10%, while the mechanical power input to the machine is maintained...
2. nBase MVA 100p LI Base KV G1 20kV Base KV Lines 220kv G13 phase 20 kv, 100 MVA Xd-1, Xd-0.3, Xd"-0.2, Xo-0.8 H-1s T1 3 phase 100 MVA20kv -220kv, DY,X-0.1 L1, L2 Ro X1-0.2 pu on given base Y ignored L2 The infinite bus voltage is 1 PU The generator supplies 0.6 pu real power at 0.8 pf lagging to the infinite bus a. Sketch an impedance diagram appropriate for transient stability analysis b. Calculate the internal transient voltage...
A 13.8 kV, 10 MVA, 0.8 pf lagging, 60 Hz two-pole star-connected steam-turbine generator has a synchronous reactance of 12 Ω per phase and an armature resistance of 1.5 Ω per phase. This generator is operating in parallel with a large power system (infinite bus). At the absolute maximum power possible, how much reactive power will this generator be supplying or consuming? Sketch the corresponding phasor diagram. (Assume IF is still unchanged.)
Problem 7. Three-phase Balanced Fault Analysis. For the two-generator system below, a three-phase short occurs at point A. Ignoring prefault currents and assuming a prefault bus voltage of 1.0 р.u., determine the fault current, in kA, contributed from generator G Assume base values of 50 MVA and 50 kV on transmission line side. 25 kV 50 MVA, 2.5% 1:2 50 MVA, 2090 25 kV 75.MVA, 15% г,-0.4% Figure 1
Problem 7. Three-phase Balanced Fault Analysis. For the two-generator system below,...
The single-line diagram of a three-phase live-bus power system is shown in Fig. 1. All lines have an impedance 0.0099 + 0.0990j pu. Line charging admittance can be neglected. a) Find the Ybus matrix of this system. b) Classify the buses in this system as slack, PV or PQ bus. c) For each bus, state the given and unknown power how variables. d) Find the net power Injection (scheduled power) for buses 2, 3, 4, and 5.
