- Consider the circuit below:
- Write the output equation symbolically

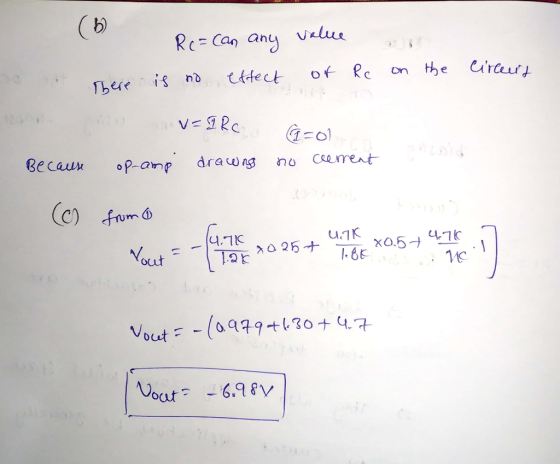

- Solve for Rc
- Solve for the output voltage given the resistors and input voltages
Homework Answers
Add Answer to:

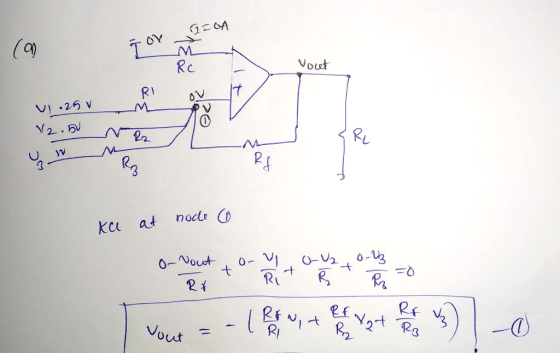

Consider the circuit below:
Write the output equation symbolically
Solve for Rc
Solve for the output...
1 Shown in the figure below is an electrical circuit containing three resistors and two batteries....
1
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R3 10 R 4 12 11 R1 ♡ Write down the Kirchhoff Junction equation and solve it for 11 in terms of 12 and 13. Write the result here: 11 - Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 Write down the Kirchhoff Loop equation for...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R3...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R3 10 R2 R1 11 Write down the Kirchhoff Junction equation and solve it for 11 in terms of 12 and 13. Write the result here: 11 = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = Write down the Kirchhoff Loop equation for a loop that...
Shown in the figure below is an electrical circuit containing three resistors and two batteries, 13...
Shown in the figure below is an electrical circuit containing three resistors and two batteries, 13 w R3 10 R₂ w 12 R w I Write down the Kirchhoff Junction equation and solve it for I, in terms of 12 and 13. Write the result here: 2 + 13 Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = X Write down the...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. RA...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. RA R3 4 10 L w R2 13 Write down the Kirchhoff Junction equation and solve it for I, in terms of Iz and 13. Write the result here: 11 = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = Write down the Kirchhoff Loop equation for...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. I...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. I R3 + 10 R₂ 4 + I I R, L Write down the Kirchhoff Junction equation and solve it for 1, in terms of 12 and 13. Write the result here: [ = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = Write down the Kirchhoff...
1. Find the expression for the output voltage Vou for the circuit shown below in terms...
1. Find the expression for the output voltage Vou for the circuit shown below in terms of the resistors Ri, R, R and Rs and the input voltages Vi. V2 and V Calculate Vout when R.-R: = R.-1? and R.-10kfand V, = 4nnV, V,-5mV and V,-6m1V. N3. 2. Find the expression for the output voltage in the circuit shown below and calculate the output voltage Vou where R-R-2.2 k2 and R R-10kQ. V-4 V and V the output voltage when...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R 13 10 R2 + 12 R1 4 I Write down the Kirchhoff Junction equation and solve it for Ij in terms of Iz and 13. Write the result here: 11 = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. Write down the Kirchhoff Loop equation for a...
3) Find the output voltage for the circuit shown below. Rf 10K +12V DC R1 Vaw...
3) Find the output voltage for the circuit shown below. Rf 10K +12V DC R1 Vaw 2.2K IC1 UA741 Vb R2 W 2.2K -12V DC R3 Z RL 10K Fig 1 Differential amplifier using one opamp
Shown in the figure below is an electrical circuit containing three resistors and two batteries 13...
Shown in the figure below is an electrical circuit containing three resistors and two batteries 13 ww Rz G 10 R2 W 12 RA "L Write down the Kirchhoff Junction equation and solve it for Iz in terms of Iz and 13. Write the result here: Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 left Write down the Kirchhoff Loop equation loop...
. Topic: Difference Amplifier Problem: For the following difference amplifier circuit, write the output equation. Also,...
. Topic: Difference Amplifier Problem: For the following difference amplifier circuit, write the output equation. Also, write the output expression in terms of resistors (R1, R2, etc.) R3 R4 R8 R7 1 Meg 1 Meg R2 100k 10k R6 500k R1 20k opamp R5 opamp 250k 100k vo =
1
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R3 10 R 4 12 11 R1 ♡ Write down the Kirchhoff Junction equation and solve it for 11 in terms of 12 and 13. Write the result here: 11 - Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 Write down the Kirchhoff Loop equation for...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R3 10 R2 R1 11 Write down the Kirchhoff Junction equation and solve it for 11 in terms of 12 and 13. Write the result here: 11 = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = Write down the Kirchhoff Loop equation for a loop that...
Shown in the figure below is an electrical circuit containing three resistors and two batteries, 13 w R3 10 R₂ w 12 R w I Write down the Kirchhoff Junction equation and solve it for I, in terms of 12 and 13. Write the result here: 2 + 13 Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = X Write down the...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. RA R3 4 10 L w R2 13 Write down the Kirchhoff Junction equation and solve it for I, in terms of Iz and 13. Write the result here: 11 = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = Write down the Kirchhoff Loop equation for...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. I R3 + 10 R₂ 4 + I I R, L Write down the Kirchhoff Junction equation and solve it for 1, in terms of 12 and 13. Write the result here: [ = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 = Write down the Kirchhoff...
1. Find the expression for the output voltage Vou for the circuit shown below in terms of the resistors Ri, R, R and Rs and the input voltages Vi. V2 and V Calculate Vout when R.-R: = R.-1? and R.-10kfand V, = 4nnV, V,-5mV and V,-6m1V. N3. 2. Find the expression for the output voltage in the circuit shown below and calculate the output voltage Vou where R-R-2.2 k2 and R R-10kQ. V-4 V and V the output voltage when...
Shown in the figure below is an electrical circuit containing three resistors and two batteries. R 13 10 R2 + 12 R1 4 I Write down the Kirchhoff Junction equation and solve it for Ij in terms of Iz and 13. Write the result here: 11 = Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. Write down the Kirchhoff Loop equation for a...
3) Find the output voltage for the circuit shown below. Rf 10K +12V DC R1 Vaw 2.2K IC1 UA741 Vb R2 W 2.2K -12V DC R3 Z RL 10K Fig 1 Differential amplifier using one opamp
Shown in the figure below is an electrical circuit containing three resistors and two batteries 13 ww Rz G 10 R2 W 12 RA "L Write down the Kirchhoff Junction equation and solve it for Iz in terms of Iz and 13. Write the result here: Write down the Kirchhoff Loop equation for a loop that starts at the lower left corner and follows the perimeter of the circuit diagram clockwise. 0 left Write down the Kirchhoff Loop equation loop...
. Topic: Difference Amplifier Problem: For the following difference amplifier circuit, write the output equation. Also, write the output expression in terms of resistors (R1, R2, etc.) R3 R4 R8 R7 1 Meg 1 Meg R2 100k 10k R6 500k R1 20k opamp R5 opamp 250k 100k vo =
