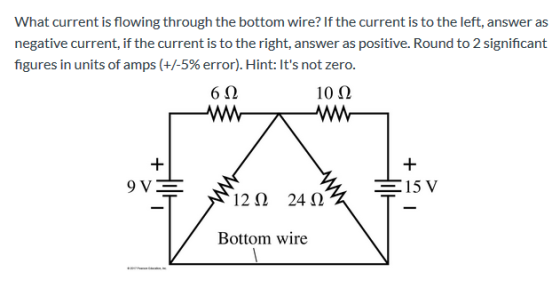

What current is flowing through the bottom wire? If the current
is to the left, answer as negative current, if the current is to
the right, answer as positive. Round to 2 significant figures in
units of amps (+/-5% error). Hint: It's not zero.

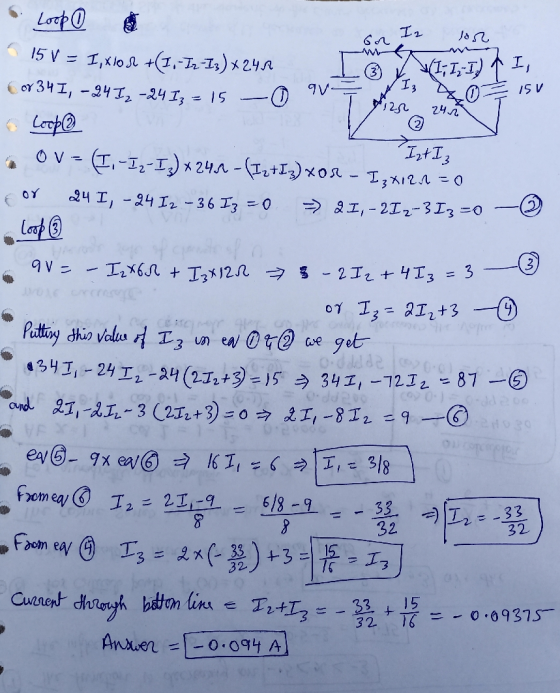

Homework Answers
Add Answer to:
What current is flowing through the bottom wire? If the current
is to the left, answer...
Part A How much current flows through the bottom wire in the figure(Figure 1) ? Express...
Part A
How much current flows through the bottom wire in the
figure(Figure 1) ?
Express your answer to two significant figures and include the
appropriate units.
Part B
In which direction current flows through the bottom wire in the
figure?
9 V 100 6 (2 12 24 Bottom wire 15 V
In the figure, R 2 ohms. Replace the 9 ohm resistor at the bottom by a...
In the figure, R 2 ohms. Replace the 9 ohm resistor at the bottom by a wire. Use MNA to determine the current flowing from right to left through that wire, in amps. Note: In this problem, you may only submit numerical answers. (i.e. If 4 is the correct answer, 4 will be marked as correct, but 2+2 will be marked as incorrect.) Figure 7 10 3 7V 3 3 1Ov 9 The current flowing from right to left through...
How much current flows through the bottom wire in the figure ? In which direction current...
How much current flows through the bottom wire in the figure
?
In which direction current flows through
thebottom wire in the figure? Explain
to the right
to the left
A square loop of wire carries a current I. Current is flowing in a counterclockwise direction...
A square loop of wire carries a current I. Current is flowing in
a counterclockwise direction as shown.
16) If this loop is placed in a
uniform magnetic field pointing out the page, what is the direction
of the net force on the loop?
up
down
left
right
zero
17) Now the loop is placed near a
horizontal wire with current moving to the left. If the horizontal
wire is right below the loop (in the plane of the page), what is...
What is the phase of the current through L1 flowing left to right? (unit: rad) I...
What is the phase of the current through L1 flowing
left to right? (unit: rad)
I got every part right, including the amplitude
through L1, correct, but the phase is wrong. If you could do it in
MATLAB that'd be helpful so I can see where I messed up
Problem 02 C1 - m Vs1 ) C2 In the circuit, the amplitude and phase of the voltage and current sources are: Vs1: 8 V and 0.05 rad; Is1: 3 A...
Wire 1 has a large current i flowing out of the page, as shown in the...
Wire 1 has a large current i flowing out of the page, as shown in the diagram. Wire 2 has a large current i flowing into the page. In what direction does the magnetic field point at position P? Р (X) Tout in Toward the top of the page. To the left. To the right. Toward the bottom of the page. O None of the above.
There is an infinitely long wire with conventional electric current flowing to the left. An electron...
There is an infinitely long wire with conventional electric current flowing to the left. An electron is located just above the wire. What is the direction of magnetic force on the electron that is moving upwards? A) Into the board. B) Out of the board C) To the left D) To the right Up Down G) None of the above Please provide the details of your solution. No credit will be given without a substantiating solution.
A long straight conductor has a constant current flowing to the right. A wire rectangle is situated above the wire, and also has a constant current flowing through it (as shown in the figure)
A long straight conductor has a constant current flowing to the right. A wire rectangle is situated above the wire, and also has a constant current flowing through it (as shown in the figure). It what direction is the net force on the wire rectangle? A) out of page B) up C) down D) force is zero E) left 8) A solid cylinder of radius R = 5.0 mm caries a uniform current density of 1.50 x 106 A/m2. What is the magnitude of the magnetic...
Find the Thévenin equivalent with respect to the terminals a,b for the circuit in (Figure 1)...
Find the Thévenin equivalent with respect to the terminals a,b for the circuit in (Figure 1) if v = 360 V, i = 4 A. Figure 1 of 1The figure shows a rectangular circuit. A vertical cross wire connects the top and bottom wires. An 8-ohm resistor is located on this cross wire. A 40-ohm and a 10-ohm resistors are located on the top wire to the left and right from the cross wire, respectively. Independent voltage source v, with...
6) The power dissipated by a resistor with a current flowing through it is a) negative...
6) The power dissipated by a resistor with a current flowing through it is a) negative d) depends on the direction of the voltage an current through the resistor e) none of the above b) zero e) positive
Part A
How much current flows through the bottom wire in the
figure(Figure 1) ?
Express your answer to two significant figures and include the
appropriate units.
Part B
In which direction current flows through the bottom wire in the
figure?
9 V 100 6 (2 12 24 Bottom wire 15 V
In the figure, R 2 ohms. Replace the 9 ohm resistor at the bottom by a wire. Use MNA to determine the current flowing from right to left through that wire, in amps. Note: In this problem, you may only submit numerical answers. (i.e. If 4 is the correct answer, 4 will be marked as correct, but 2+2 will be marked as incorrect.) Figure 7 10 3 7V 3 3 1Ov 9 The current flowing from right to left through...
How much current flows through the bottom wire in the figure
?
In which direction current flows through
thebottom wire in the figure? Explain
to the right
to the left
A square loop of wire carries a current I. Current is flowing in
a counterclockwise direction as shown.
16) If this loop is placed in a
uniform magnetic field pointing out the page, what is the direction
of the net force on the loop?
up
down
left
right
zero
17) Now the loop is placed near a
horizontal wire with current moving to the left. If the horizontal
wire is right below the loop (in the plane of the page), what is...
What is the phase of the current through L1 flowing
left to right? (unit: rad)
I got every part right, including the amplitude
through L1, correct, but the phase is wrong. If you could do it in
MATLAB that'd be helpful so I can see where I messed up
Problem 02 C1 - m Vs1 ) C2 In the circuit, the amplitude and phase of the voltage and current sources are: Vs1: 8 V and 0.05 rad; Is1: 3 A...
Wire 1 has a large current i flowing out of the page, as shown in the diagram. Wire 2 has a large current i flowing into the page. In what direction does the magnetic field point at position P? Р (X) Tout in Toward the top of the page. To the left. To the right. Toward the bottom of the page. O None of the above.
There is an infinitely long wire with conventional electric current flowing to the left. An electron is located just above the wire. What is the direction of magnetic force on the electron that is moving upwards? A) Into the board. B) Out of the board C) To the left D) To the right Up Down G) None of the above Please provide the details of your solution. No credit will be given without a substantiating solution.
6) The power dissipated by a resistor with a current flowing through it is a) negative d) depends on the direction of the voltage an current through the resistor e) none of the above b) zero e) positive
