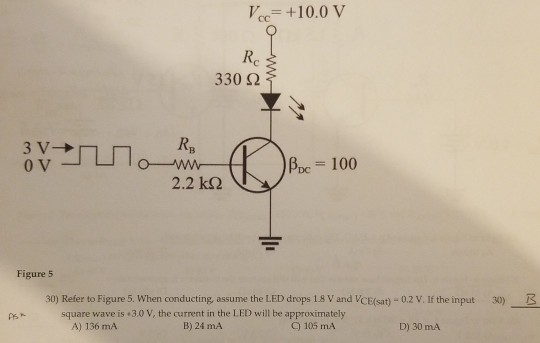

please answer question # 30 showing all work
Homework Answers
Cosidering voltage drp across LED diode be 1.8V.
Then applying KVL to collector circuit
VCC - 1.8 - I x Rc - VCE = 0
10 - 1.8 - 330I - VCE(sat) = 0
I = 8/330
= 24.24 mA
B) 24 mA
please rate also.
