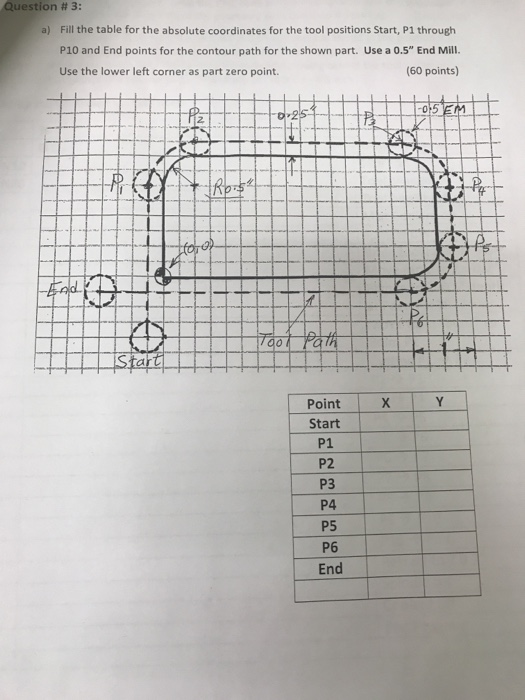

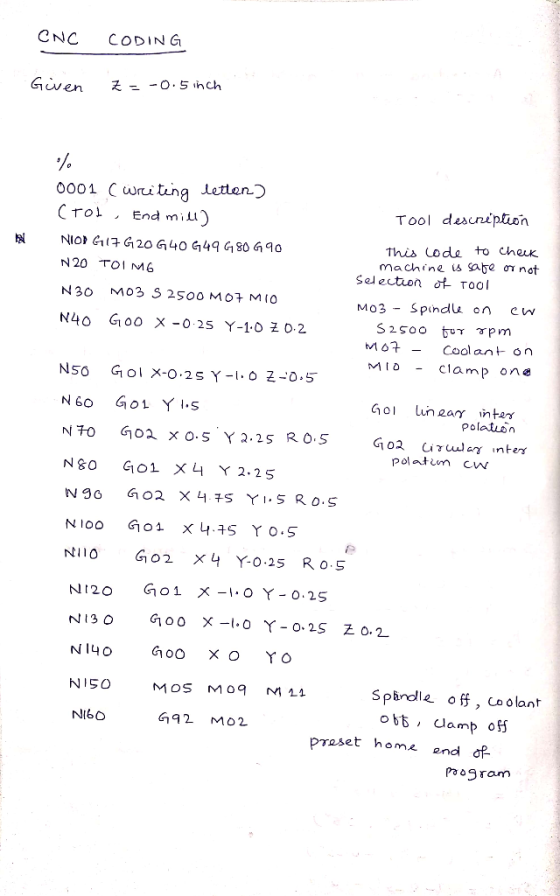

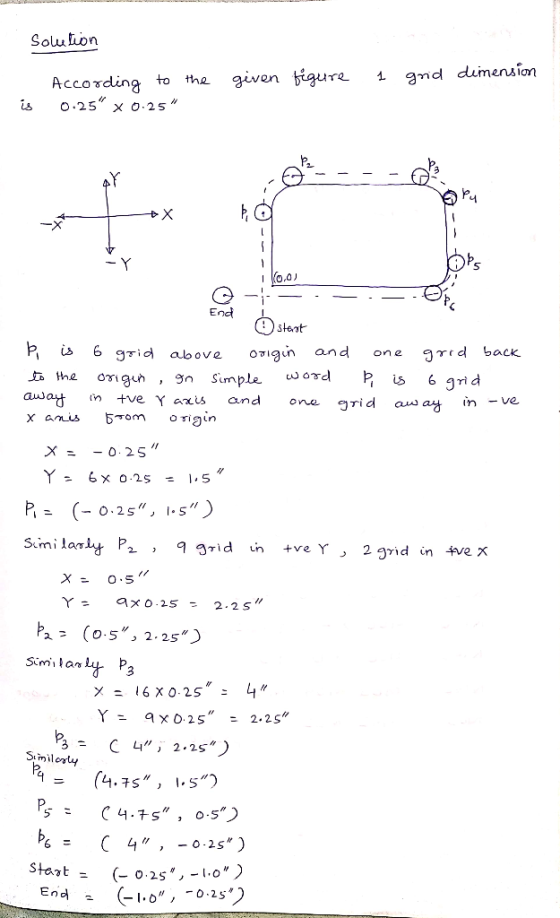

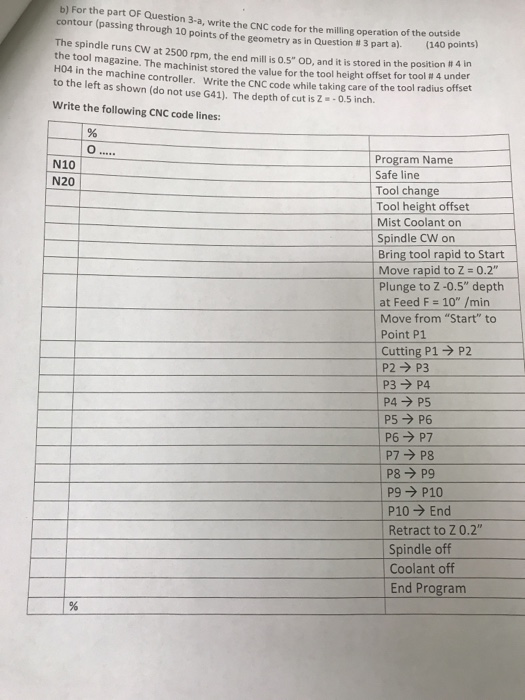

Question # 3 a) Fill the table for the absolute coordinates for the tool positions Start,...
Write a part program manually (that is, use G, M, T, etc.) to mill the edge...
Write a part program manually (that is, use G, M, T, etc.) to mill the edge of the late shown in Figure below. The dimensions are in millimeters, and the raw material, a rectangular plate, has a thickness of 15 mm; its bottom face has the z coordinate of 0. The characteristics of the NC controller to be used are as follows. You can assume any other information such as feedrate, spindle direction and speed, etc. that are needed to...
1. Write a part program to mill the step shown in the next figure. The tool...
1. Write a part program to mill the step shown in the next figure. The tool material is HSS. The work material is aluminum. The maximum spindle power is 1 hp. The tool, a flat bottom end mill, will have 4 teeth, a diameter of 0.5 in and a flute 0.75 in long. The (0,0,0) reference point will be point A in the figure. The depth of cut will be 0.030 in (same as the step width). Use the optimum...
G00 Rapid move G0 X# Y# Z# up to eight axes or GO Z# X# Gol Feed Rate move G 1 X# Y# Z# up to eight axes or G1 Z# X# G02 Clockwise move X# Y#1# J# G03 Counter Clockwise move X# Y#1# G04 Dwell time G0...
G00 Rapid move G0 X# Y# Z# up to eight axes or GO Z# X# Gol Feed Rate move G 1 X# Y# Z# up to eight axes or G1 Z# X# G02 Clockwise move X# Y#1# J# G03 Counter Clockwise move X# Y#1# G04 Dwell time G04 L# G08 Spline Smoothing On G09 Exact stop check, Spline Smoothing Off G10 A linear feedrate controlled move with a decelerated stop G11 Controlled Decel stop G17 XY PLANE G18 XZ PLANE...
50x40 chame 2) piace Figure 11.18 Print and tool paths for producing the part for 11.1 Setup Note...
50x40 chame 2) piace Figure 11.18 Print and tool paths for producing the part for 11.1 Setup Notes Set XoYs at the upper left- hand comer 2 Zo is the top of the part 3 The part is drilled by hoiding the biank against three pins by two clamps, See Figure 11.19 4 Stop the machine after using too 1 Hoid down the part by three 38 screws thru holes that have been dritied Remove three pins and two clamps...
Create a class to represent a term in an algebraic expression. As defined here, a term...
Create a class to represent a term in an algebraic expression. As defined here, a term consists of an integer coefficient and a nonnegative integer exponent. E.g. in the term 4x2, the coefficient is 4 and the exponent 2 in -6x8, the coefficient is -6 and the exponent 8 Your class will have a constructor that creates a Term object with a coefficient and exponent passed as parameters, and accessor methods that return the coefficient and the exponent. Your class...
Write a part program manually (that is, use G, M, T, etc.) to mill the edge of the late shown in Figure below. The dimensions are in millimeters, and the raw material, a rectangular plate, has a thickness of 15 mm; its bottom face has the z coordinate of 0. The characteristics of the NC controller to be used are as follows. You can assume any other information such as feedrate, spindle direction and speed, etc. that are needed to...
1. Write a part program to mill the step shown in the next figure. The tool material is HSS. The work material is aluminum. The maximum spindle power is 1 hp. The tool, a flat bottom end mill, will have 4 teeth, a diameter of 0.5 in and a flute 0.75 in long. The (0,0,0) reference point will be point A in the figure. The depth of cut will be 0.030 in (same as the step width). Use the optimum...
G00 Rapid move G0 X# Y# Z# up to eight axes or GO Z# X# Gol Feed Rate move G 1 X# Y# Z# up to eight axes or G1 Z# X# G02 Clockwise move X# Y#1# J# G03 Counter Clockwise move X# Y#1# G04 Dwell time G04 L# G08 Spline Smoothing On G09 Exact stop check, Spline Smoothing Off G10 A linear feedrate controlled move with a decelerated stop G11 Controlled Decel stop G17 XY PLANE G18 XZ PLANE...
50x40 chame 2) piace Figure 11.18 Print and tool paths for producing the part for 11.1 Setup Notes Set XoYs at the upper left- hand comer 2 Zo is the top of the part 3 The part is drilled by hoiding the biank against three pins by two clamps, See Figure 11.19 4 Stop the machine after using too 1 Hoid down the part by three 38 screws thru holes that have been dritied Remove three pins and two clamps...
