Question

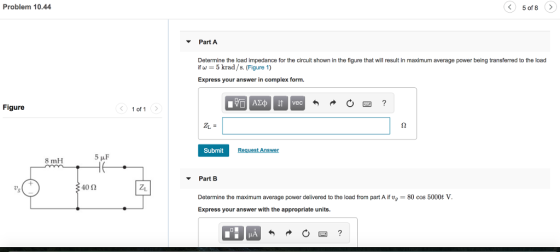

Problem 10.44 ? 5of8 Part A Determine the load impedance for the circuit shown in the figure that will result in maximum average power being transferred to the load if ?-5 krad /s. (Figure 1) Express your answer in complex form. Figure of 1 S2 Submit 8 mH Part B 4012 Determine the maximum average power delivered to the load from part A if t, 80 cos 5000t V Express your answer with the appropriate units.

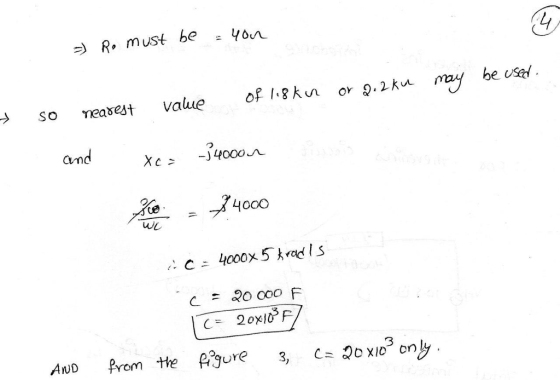

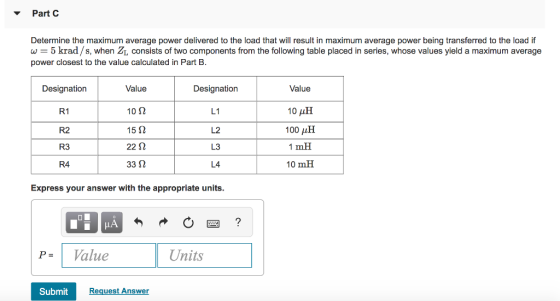

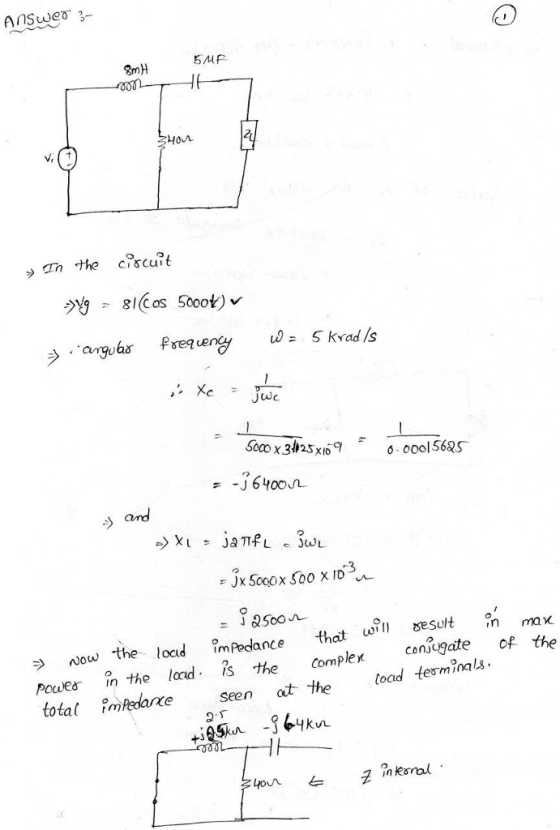

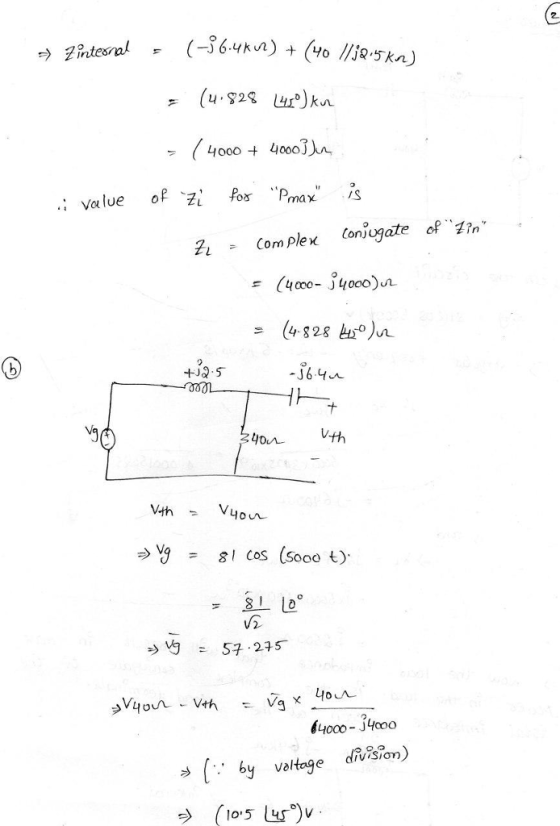

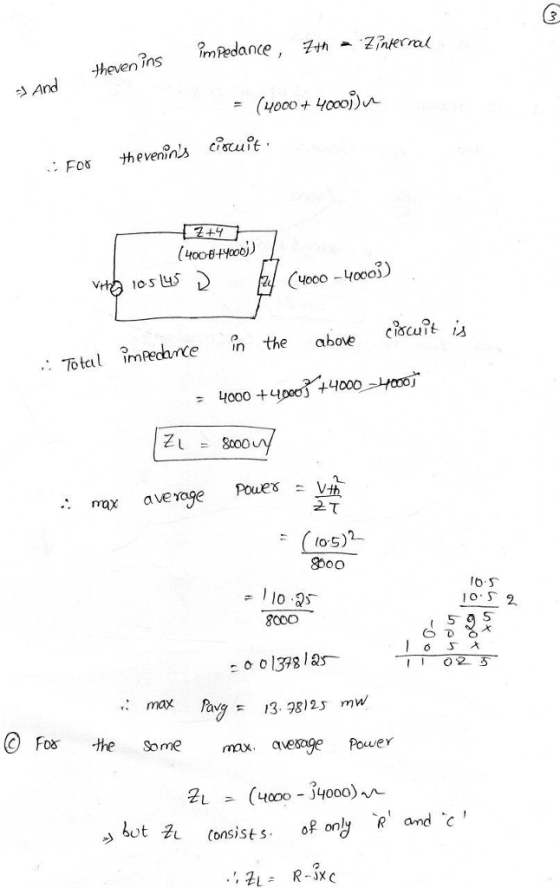

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
Problem 10.44 ? 5of8 Part A Determine the load impedance for the circuit shown in the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Problem 7 Consider the circuit shown in (Figure 1). Suppose that 9,= 130 cos 10,000+ V,...

    Problem 7 Consider the circuit shown in (Figure 1). Suppose that 9,= 130 cos 10,000+ V, where t is in seconds Part A Determine the load impedance for the circuit that will result in maximum average power being transferred to the load. Express your answer in ohms to three significant figures. Enter your answer in rectangular form. View Available Hint(s) VO AXO vec ? 2 = Submit Part B Figure 1 of 1 Determine the maximum average power delivered to...

  • Part A Find the average power delivered by the ideal current source in the circuit in...

    Part A Find the average power delivered by the ideal current source in the circuit in the figure if ig-4 cos 5000t mA.(Figure 1) Express your answer with the appropriate units. P. Value Units igure 1 of 1 Submit Request Answer Provide Feedback 500 Ω 1000 Ω 100 mH 160 nF

  • Problem 7 Re Consider the circuit shown in (Figure 1). Suppose that va = 130 cos...

    Problem 7 Re Consider the circuit shown in (Figure 1). Suppose that va = 130 cos 10,000+ V, where is in seconds. Part A Determine the load impedance for the circuit that will result in maximum average power being transferred to the load. Express your answer in ohms to three significant figures. Enter your answer in rectangular form. View Available Hints) 21 = 20.0 20.00 22 Previous Answers Correct Here we learn how to find the impedance of the circuit...

  • Review | Constants Consider the circuit shown in (Figure 1). Suppose that vg 145 cos 10,000+...

    Review | Constants Consider the circuit shown in (Figure 1). Suppose that vg 145 cos 10,000+ V, where t is in seconds. = Part A Determine the load impedance for the circuit that will result in maximum average power being transferred to the load. Figure < 1 of 1 > Express your answer in ohms to three significant figures. Enter your answer in rectangular form. ► View Available Hint(s) 4 mH 2.5 F | ΑΣφ If vec ☺ ? 25...

  • For the circuit shown above, (a) determine the impedance ZL results in maximum average power transfer...

    For the circuit shown above, (a) determine the impedance ZL results in maximum average power transfer to ZL ? (b) What is the maximum average power transferred to the load impedance determined in (a) ? 20/0° © 2003 -j6n+ Z For the circuit shown above, (a) determine the impedance ZL results in maximum average power transfer to ZL? (b) What is the maximum average power transferred to the load impedance determined in (a) ?

  • Consider the circuit shown in (Figure 1). Suppose that Vg = 125 cos 250 V 80...

    Consider the circuit shown in (Figure 1). Suppose that Vg = 125 cos 250 V 80 uF 50 Ω ug +1 3100 mH Load Find the average power absorbed by the load in the circuit. Use positive value if the power is absorbed and negative value if the power is delivered. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) ID μΑ PR ? P = Value Units Find the reactive power absorbed by...

  • Part G What is the value of Co for the condition of Part E? Express your answer with the appropriate units Value Units Submit Request Answer Review Constants The peak amplitude of the sinusoidal volt...

    Part G What is the value of Co for the condition of Part E? Express your answer with the appropriate units Value Units Submit Request Answer Review Constants The peak amplitude of the sinusoidal voltage source in the circuit shown in the figure is 150 V, and its frequency is 5000 rad /s. The load resistor can be varied from 0 to 4000 Ω, and the load capacitor can be varied from 0.1 μF to 0.5 μF (Figure 1) Figure...

  • 3. The load impedance Z, in the following povwier circuit is adjusted until the maximum average...

    3. The load impedance Z, in the following povwier circuit is adjusted until the maximum average delivered to the load is delivered to it Find the value of the maximum average power mpedance. (25) 10?

  • (C) 5016 Constants Part A The h parameters for the two-portamolfier circuit in (Figure 1) are...

    (C) 5016 Constants Part A The h parameters for the two-portamolfier circuit in (Figure 1) are hu - 500 hig = 10- hg1 = 50; hy - 50 S. Find the mms value of V Express your answer to three significant figures and include the appropriate units. The internal impedance of the source is 1500+ 0 and the load impedance is 10,000+ 30 The ideal voltage source is generating a voltage ug - 270 cos 40,000t mV. MA O ?...

  • Problem 10.7 9 of 14 >> A Review Constants Consider the circuit in (Figure 1). Part...

    Problem 10.7 9 of 14 >> A Review Constants Consider the circuit in (Figure 1). Part A Find the average power delivered by the ideal current source in the circuit ift= 100 cos 1250/ mA. Express your answer to three significant figures and include the appropriate units. P= Value Units Submit Request Answer Figure 1 of 1 > Provide Feedback Next > 5k 80 nF
