1. For the Switching Algebra write the truth table of the following Logical Functions.

a.) Write schematic and truth table resulting from:

F = A' BC + B' (A + C)

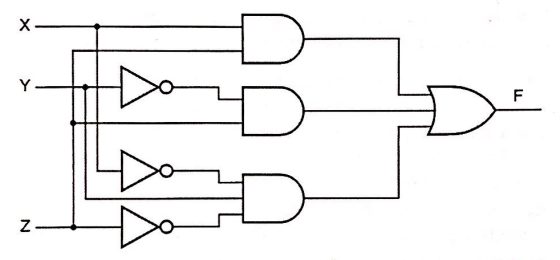

b.) Write the equation and the resulting truth table:

engineering Electrical-Engineering

Answer 1

Answer #1

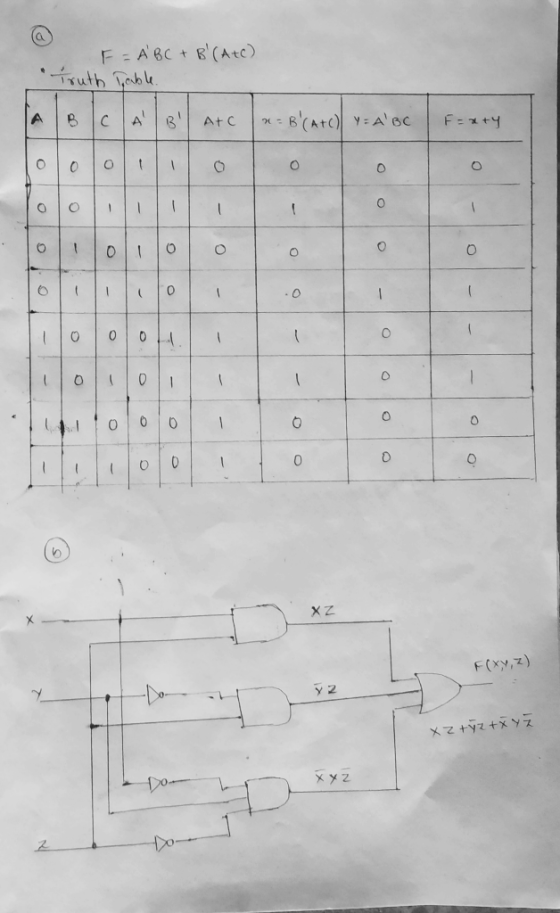

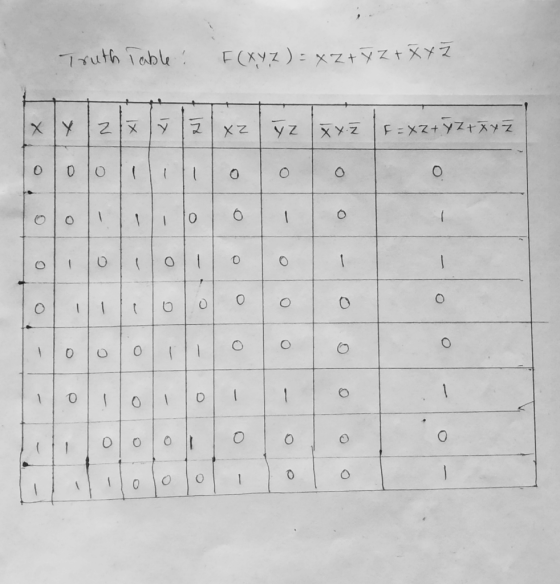

Truth Tebl 0 0 F(xy ) (1,101010|1
