The uniform solid block in the figure has mass 45.5 kg and edge lengths a =...

Question

Question

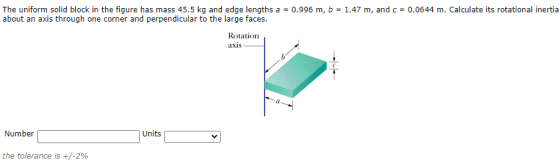

The uniform solid block in the figure has mass 45.5 kg and edge lengths a = 0.996 m, b = 1.47 m, and c = 0.0644 m. Calculate

science physics

Answer 1

Answer #1

Moment of Inertia about Cente. Im 12 (a%eb%) Izs theorem axis parallel using Mer through corner 2 (१ + + E 4 4 I s Z m + (9²+

Answer 2

Similar Homework Help Questions

The uniform solid block in the figure has mass 33.1 kg and edge lengths a =...

The uniform solid block in the figure has mass 33.1 kg and edge lengths a = 0.853 m, b = 1.77 m, and c = 0.130 m. Calculate its rotational inertia about an axis through one corner and perpendicular to the large faces.
The figure shows a uniform solid block of mass M = 9.4 kg and edge lengths...

The figure shows a uniform solid block of mass M = 9.4 kg and edge lengths a = 6.0 m, b = 7.0 m, and c = 2.0 m. Calculate its rotational inertia about an axis through one corner and perpendicular to the large faces of the block.
The uniform solid block in right figure has mass 0.2 kg and edge lengths a =...

The uniform solid block in right figure has mass 0.2 kg and edge lengths a = 5.0 cm, b = 8.0 cm, and c = 2.0 cm. Calculate its rotational inertia about an axis through one corner and perpendicular to the large faces.

The uniform solid block in the figure has mass 21.8 kg and edge lengths a 0.785m,...

The uniform solid block in the figure has mass 21.8 kg and edge lengths a 0.785m, b -1.91 m, and c-0.0535 m. Calculate its rotational inertia about an axis through one comer and perpendicular to the large faces. M Number Units the once
Chapter 10, Problem 043 The uniform solid block in the figure has mass 37.1 kg and...

Chapter 10, Problem 043 The uniform solid block in the figure has mass 37.1 kg and edge lengths a = 0.685 m, b = 1.33 m, and c = 0.130 m. Calculate its rotational inertia about an axis through one corner and perpendicular to the large faces. Rotation axis - Number Unitsy the tolerance is +/-5% Click if you would like to Show Work for this question: Open Show Work
The uniform solid block in Fig. 11-36 has a mass of M = 5.35 kg and...

The uniform solid block in Fig. 11-36 has a mass of M = 5.35 kg and edge lengths a = 16.0 cm, b = 26.5 cm, and c = 2.25 cm. Calculate its rotational inertia about an axis through one corner and perpendicular to the large faces. 1.709 x kg•m2 Rotation axis

In a physics lab, Asha is given a 10.7 kg uniform rectangular plate with edge lengths...

In a physics lab, Asha is given a 10.7 kg uniform rectangular plate with edge lengths 67.3 cm by 53.5 cm . Her lab instructor requires her to rotate the plate about an axis perpendicular to its plane and passing through one of its corners, and then prepare a report on the project. For her report, Asha needs the plate's moment of inertia ? with respect to given rotation axis. Calculate ? .
In the figure, a 8.28 g bullet is fired into a 0.996 kg block attached to...

In the figure, a 8.28 g bullet is fired into a 0.996 kg block attached to the end of a 0.611 m nonuniform rod of mass 0.490 kg. The block-rod-bullet system then rotates in the plane of the figure, about a fixed axis at A. The rotational inertia of the rod alone about A is 0.0857 kg-m^2. Treat the block as a particle, (a) What then is the rotational inertia of the block-rod-bullet system about point A? (b) If the...
In your physics lab you are given a 11.7-kg uniform rectangular plate with edge lengths 64.7...

In your physics lab you are given a 11.7-kg uniform rectangular plate with edge lengths 64.7 cm by 53.9 cm. Your lab instructor requires you to rotate it about an axis perpendicular to its plane and passing through one of its corners and then prepare a report on the project. For your report you will need the plate's moment of inertia with respect to this axis. Calculate it here first. Number kg m

The figure shows a communications satellite that is a solid cylinder with mass 1430 kg, diameter...

The figure shows a communications satellite that is a solid cylinder with mass 1430 kg, diameter 1.24 m, and length 1.64 m. Prior to launch from the shuttle cargo bay, the satellite is set spinning at 1.37 rev/s about its long axis. What are (a) its rotational inertia about the rotation axis and (b) its rotational kinetic energy?
