Focus on Concepts, Question 20 Your answer is partially correct. Try again. Light of wavelength 500...

Question

Question

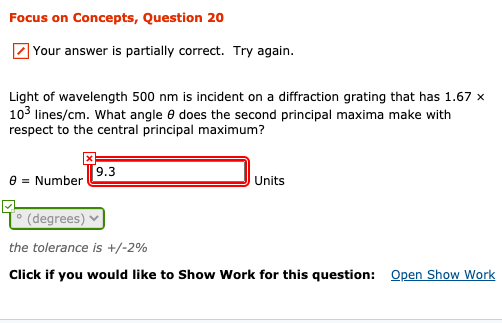

Focus on Concepts, Question 20 Your answer is partially correct. Try again. Light of wavelength 500 nm is incident on a diffr

science physics

Answer 1

Answer #1

From equation,

a*sin(angle) = n*wavelength

Now,

a = 1/1.67*10^5

a = 0.5988*10^-5 m

n =*2

So,

0.5988*10^-5*sin(k) = 2*500*10^-9

sin(k) = 0.167

k = 9.673 degrees

So, angle which second maxima makes with central maxima is 9.673 degrees.

Answer 2
