electromagnetic

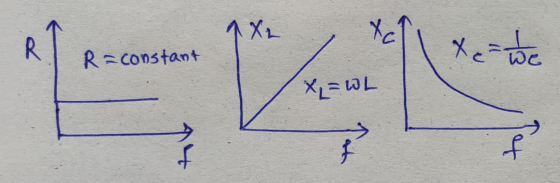

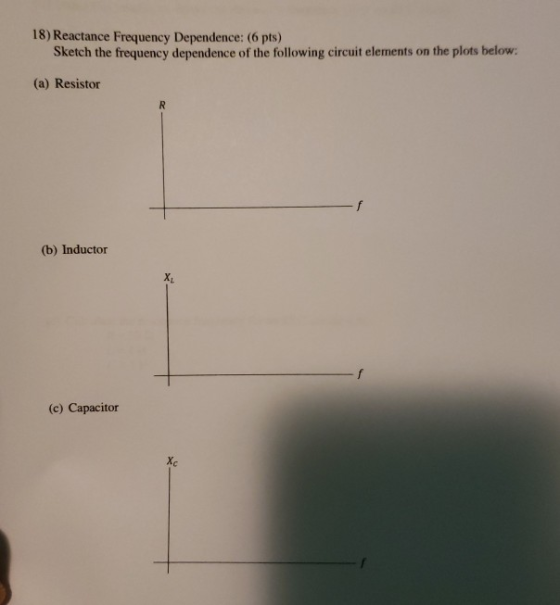

18) Reactance Frequency Dependence: (6 pts) Sketch the frequency dependence of the following circuit elements...
At a frequency ω1ω1 the reactance of a certain capacitor equals that of a certain inductor....
At a frequency ω1ω1 the reactance of a certain capacitor equals that of a certain inductor. If the frequency is changed to ω2=ω2= 9 ω1ω1, what is the ratio of the reactance of the inductor to that of the capacitor? If the frequency is changed to ω3=ω1/ω3=ω1/ 2, what is the ratio of the reactance of the inductor to that of the capacitor? If the capacitor and inductor are placed in series with a resistor of resistance RR to form...
electromagnetic 19) RLC Circuit Resonance Frequency: (12 pts) (a) Identify the relation between the capacitive reactance...
electromagnetic
19) RLC Circuit Resonance Frequency: (12 pts) (a) Identify the relation between the capacitive reactance (Xc) and inductive reactance (XL) that will minimize the total impedance (Z) of an RLC circuit. (b) Using this condition, derive the resonance frequency () of an RLC circuit. (c) Calculate the resonance frequency for an RLC circuit with: R=102 L=4H C=IF
Constanta At a frequency w, the reactance of a certain capacitor equals that of a certain...
Constanta At a frequency w, the reactance of a certain capacitor equals that of a certain inductor. If the frequency is changed to wg - 3w1, what is the ratio of the reactance of the inductor to that of the capacitor? Express your answer using three significant figures. VOAED th ? Submit Request Answer Part B If the frequency is changed to ws = w1/3, what is the ratio of the reactance of the inductor to that of the capacitor?...
A series RC circuit has resistance R - 14.00 inductive reactance X20:00, and capacitive reactance X...
A series RC circuit has resistance R - 14.00 inductive reactance X20:00, and capacitive reactance X 12. 00. If the maximum voltage across the resistor is av = 125 V, find the maximum voltage across the inductor and the capacitor. (Due to the nature of this problem, do not use rounded intermediate values in your calculations including answers submitted in Webassin) HINT (a) the maximum voltage across the inductor (in V) (b) the maximum voltage across the capacitor ( V)...
A series RLC circuit has resistance R = 16.09, inductive reactance X, = 28.0 , and...
A series RLC circuit has resistance R = 16.09, inductive reactance X, = 28.0 , and capacitive reactance X = 15.0 . If the maximum voltage across the resistor is AV, = 155 V, find the maximum voltage across the inductor and the capacitor. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) HINT (a) the maximum voltage across the inductor (in V) (b) the maximum voltage across the...
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency...
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, 180 ohm resistor, 200mH inductor, and a 900 micro-F capacitor, all wired in series. A) What is inductive reactance of the circuit? B) What is the capacitive reactance of the circuit?C) What is the impedance of the circuit? D)What is RMS current in the circuit?E) If the frequency is adjustable what frequency should you use to maximize the current in the circuit?
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, a 180 Ohm resistor a 200 ml inductor, and a 900 micro-F capacitor, all wired in series. a) What is the inductive reactance of the circuit? b) What is the capacitive reactance of the circuit? c) What is the Impedance of the circuit? d) What is the RMS current in the circuit? e) of the frequency is adjustable, what frequency should you use to maximize the current...
3) [8 pts] For a frequency of 5000 rad/sec, answer the following questions a) If a...
3) [8 pts] For a frequency of 5000 rad/sec, answer the following questions a) If a load impedance Z Load = 250 + j 250 Ω consists of two elements in series (a resistor in series with an inductor OR a resistor in series with a capacitor), I. What is the value of the resistor? II. What is the value of the inductor (in mH) or the capacitor (in μ F )?. b) If the impedance of a capacitor iscapacitor?...
What is the inductive reactance of a 0.5 H inductor connected with a 1000 Ω resistor...
What is the inductive reactance of a 0.5 H inductor connected with a 1000 Ω resistor in an AC circuit supplied with 48 VAC at 100 Hz? A. 150.72 Ω B. 500 Ω C. 314 Ω D. 0.31 Ω Which of the following denotes inductive reactance? A. R B. H C. X L D. Z A 10 mH inductor and a 100 Ω resistor are connected in parallel. The circuit is supplied with 24 VAC at 2000 Hz. What is...
What is the inductive reactance of a 2 mH inductor at a frequency of 1000 Hz?...
What is the inductive reactance of a 2 mH inductor at a frequency of 1000 Hz? A. 68.3 Ω B. 12.56 Ω C. 204.4 Ω D. 20.25 Ω What is the inductive reactance of a 2 H inductor in a 60 Hz, AC circuit? A. 0.08 Ω B. 753.60 Ω C. 948 Ω D. 120 Ω A circuit contains a 60 mH and a 40 mH inductor connected in parallel. The circuit has a source voltage of 100 VAC and...
electromagnetic
19) RLC Circuit Resonance Frequency: (12 pts) (a) Identify the relation between the capacitive reactance (Xc) and inductive reactance (XL) that will minimize the total impedance (Z) of an RLC circuit. (b) Using this condition, derive the resonance frequency () of an RLC circuit. (c) Calculate the resonance frequency for an RLC circuit with: R=102 L=4H C=IF
Constanta At a frequency w, the reactance of a certain capacitor equals that of a certain inductor. If the frequency is changed to wg - 3w1, what is the ratio of the reactance of the inductor to that of the capacitor? Express your answer using three significant figures. VOAED th ? Submit Request Answer Part B If the frequency is changed to ws = w1/3, what is the ratio of the reactance of the inductor to that of the capacitor?...
A series RC circuit has resistance R - 14.00 inductive reactance X20:00, and capacitive reactance X 12. 00. If the maximum voltage across the resistor is av = 125 V, find the maximum voltage across the inductor and the capacitor. (Due to the nature of this problem, do not use rounded intermediate values in your calculations including answers submitted in Webassin) HINT (a) the maximum voltage across the inductor (in V) (b) the maximum voltage across the capacitor ( V)...
A series RLC circuit has resistance R = 16.09, inductive reactance X, = 28.0 , and capacitive reactance X = 15.0 . If the maximum voltage across the resistor is AV, = 155 V, find the maximum voltage across the inductor and the capacitor. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) HINT (a) the maximum voltage across the inductor (in V) (b) the maximum voltage across the...
