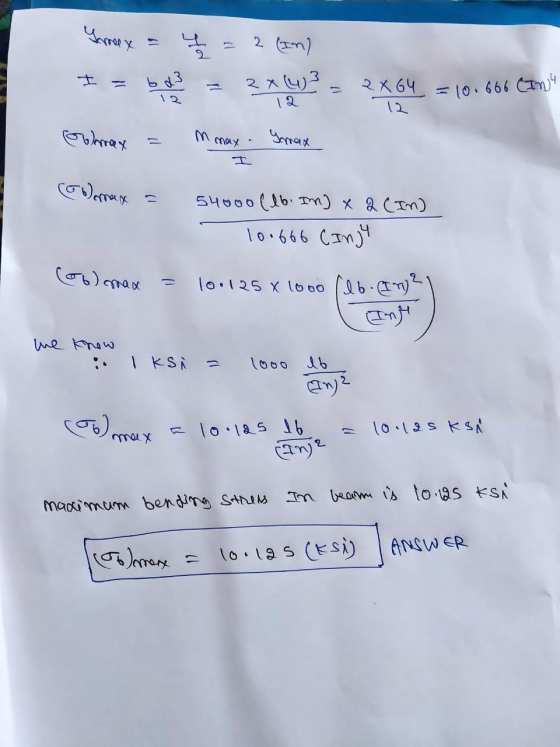

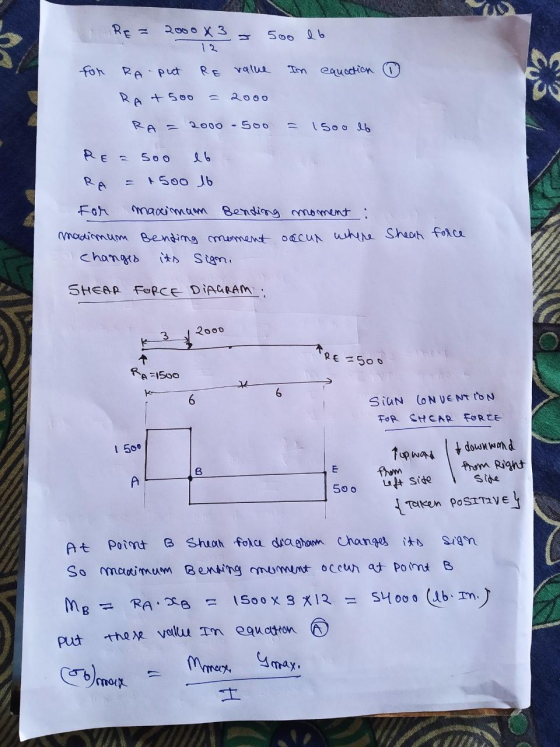

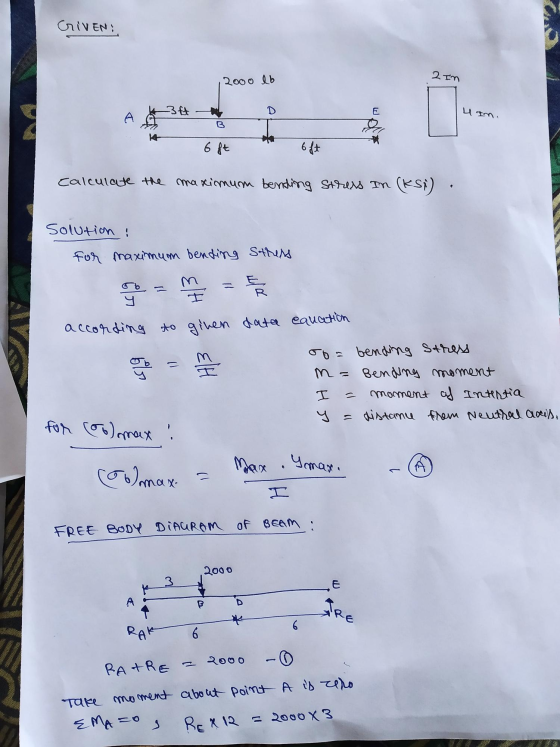

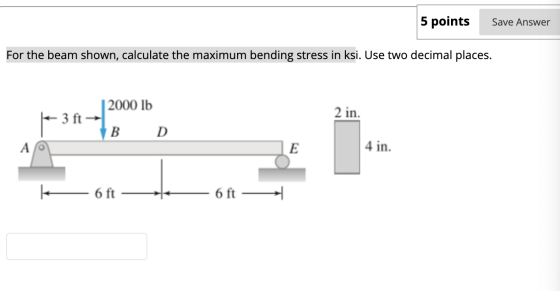

5 points Save Answer For the beam shown, calculate the maximum bending stress in ksi. Use...
Please answer 1 and 2 with complete solution EXERCISE: BEAM FLEXURE #1 For the cantilever beam...
Please answer 1 and 2 with complete solution
EXERCISE: BEAM FLEXURE #1 For the cantilever beam shown in the figure, find (a) the maximum bending stress and its location; and (b) the bending stress at a point 20 mm from the top of the beam on section B. -1.0 kN/m T A с 150 mm -2m- 6 m 50 mm #2 For the beam shown, calculate (a) the maximum bending stress; and (b) the bending stress at a point 0.5...
A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown....
A cantilever beam supports the
loads shown. The cross-sectional dimensions of the shape are also
shown. Assume LAB = 4.0 ft,
LBC = 12.0 ft, w = 1620 lb/ft,
P = 2550 lb, b = 16 in., d = 6 in.,
t = 0.50 in. Determine
(a) the maximum horizontal shear stress.
(b) the maximum compression bending stress.
(c) the maximum tension bending stress.
Chapter 9, Supplemental Question 043 (GO Tutorial) A cantilever beam supports the loads shown. The cross...
Question 9 10 points Save Answer Determine the bending moment 10.43 ft to the right of...
Question 9 10 points Save Answer Determine the bending moment 10.43 ft to the right of point A for the beam shown below if P = 751 lb, Q = 957 lb, R = 521 lb, a = 5.16 ft, b = 6.61 ft, and c = 5.85 ft. P 0 R с E D px - y —246z – Question 10 10 points Determine the bending moment 6.82 ft to the right of point B for the beam shown...
Calculate the maximum bending and shear stress for the cantilever beam with the cross section shown...
Calculate the maximum bending and shear stress for the cantilever
beam with the cross section shown
30 kip 4 ft 1 in. 8 in. I 10 in. 0.6 in.-
1. For the overhanging beam in the figure below, determine the maximum shear stress, the maximum...
1. For the overhanging beam in the figure below, determine the maximum shear stress, the maximum tensile stress, and the maximum compressive stress in the beam due to the loading shown. 300 lb/ft 6 in. 1 in. 4 ft 10 ft 1 in. 2 in. Section INSTRUCTIONS For PROBLEM do the following steps: 1. Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a...
Blem 2. (70 points) 1. For the beam shown in Figure (a): a) b) draw the shear force and bending m...
blem 2. (70 points) 1. For the beam shown in Figure (a): a) b) draw the shear force and bending moment diagrams. (30 points) Select the most economical W shape for the beam with an allowable bending stress of 30 ksi. (10 points) determine the maximum tensile and compressive bending stresses at any location along the beam if the section shown in Figure (b) is used instead of the W shape section selectedin Part b. Would the beam be safe...
A timber [E = 1,800 ksi] beam is loaded and supported as shown. The cross section...
A timber [E = 1,800 ksi] beam is loaded and supported
as shown. The cross section of the timber beam is b = 4
in. wide and h = 7 in. deep. The beam is supported at
B by a 0.875-in.-diameter aluminum [E = 10,500
ksi] rod, which has no load before the distributed load is applied
to the beam. After a distributed load of w = 610 lb/ft is
applied to the beam, determine
(a) the force carried by...
Problem 6: The beam is made of Douglas fir having an allowable bending stress of allow...
Problem 6: The beam is made of Douglas fir having an allowable bending stress of allow = 1.1 ksi and an allowable shear stress of Tallow = 0.70 ksi. Determine the width b if the height h = 26. (Show your SFD & BMD) 800 lb 80 lb/ft 800 lb -3 ft -+ -6 ft + 3 ft h = 2b b
points) The cross-section of the beam below is the same as in questions 3. Given this cros ion determine the follow...
points) The cross-section of the beam below is the same as in questions 3. Given this cros ion determine the following: a. (5 points) Find the normal stress acting at point A if M900 f"lb b. (5 points) Find the maximum compression stress acting on the c. (5 points) Find the maximum tension stress acting on the beami d. (5 points) If the maximum allowable stress is 5 ksi in either tension or compression determine the maximum bending moment M...
1- For the beam shown below find: a) The maximum normal stresses due to bending b)...
1- For the beam shown below find: a) The maximum normal stresses due to bending b) The maximum shearing stress c) The maximum combined normal stress d) The stresses at C e) The shearing stress at D f The stresses at F The beam is made from homogenous, isotropic, linear elastic material Please present a very neat work. 20 kips 48 ft.kip 32 kips 2k/ft 4 B F 4' 8' 4' 16" 3" 4" D 12" C 6" F 3"...
Please answer 1 and 2 with complete solution
EXERCISE: BEAM FLEXURE #1 For the cantilever beam shown in the figure, find (a) the maximum bending stress and its location; and (b) the bending stress at a point 20 mm from the top of the beam on section B. -1.0 kN/m T A с 150 mm -2m- 6 m 50 mm #2 For the beam shown, calculate (a) the maximum bending stress; and (b) the bending stress at a point 0.5...
A cantilever beam supports the
loads shown. The cross-sectional dimensions of the shape are also
shown. Assume LAB = 4.0 ft,
LBC = 12.0 ft, w = 1620 lb/ft,
P = 2550 lb, b = 16 in., d = 6 in.,
t = 0.50 in. Determine
(a) the maximum horizontal shear stress.
(b) the maximum compression bending stress.
(c) the maximum tension bending stress.
Chapter 9, Supplemental Question 043 (GO Tutorial) A cantilever beam supports the loads shown. The cross...
Question 9 10 points Save Answer Determine the bending moment 10.43 ft to the right of point A for the beam shown below if P = 751 lb, Q = 957 lb, R = 521 lb, a = 5.16 ft, b = 6.61 ft, and c = 5.85 ft. P 0 R с E D px - y —246z – Question 10 10 points Determine the bending moment 6.82 ft to the right of point B for the beam shown...
Calculate the maximum bending and shear stress for the cantilever
beam with the cross section shown
30 kip 4 ft 1 in. 8 in. I 10 in. 0.6 in.-
1. For the overhanging beam in the figure below, determine the maximum shear stress, the maximum tensile stress, and the maximum compressive stress in the beam due to the loading shown. 300 lb/ft 6 in. 1 in. 4 ft 10 ft 1 in. 2 in. Section INSTRUCTIONS For PROBLEM do the following steps: 1. Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a...
blem 2. (70 points) 1. For the beam shown in Figure (a): a) b) draw the shear force and bending moment diagrams. (30 points) Select the most economical W shape for the beam with an allowable bending stress of 30 ksi. (10 points) determine the maximum tensile and compressive bending stresses at any location along the beam if the section shown in Figure (b) is used instead of the W shape section selectedin Part b. Would the beam be safe...
A timber [E = 1,800 ksi] beam is loaded and supported
as shown. The cross section of the timber beam is b = 4
in. wide and h = 7 in. deep. The beam is supported at
B by a 0.875-in.-diameter aluminum [E = 10,500
ksi] rod, which has no load before the distributed load is applied
to the beam. After a distributed load of w = 610 lb/ft is
applied to the beam, determine
(a) the force carried by...
Problem 6: The beam is made of Douglas fir having an allowable bending stress of allow = 1.1 ksi and an allowable shear stress of Tallow = 0.70 ksi. Determine the width b if the height h = 26. (Show your SFD & BMD) 800 lb 80 lb/ft 800 lb -3 ft -+ -6 ft + 3 ft h = 2b b
points) The cross-section of the beam below is the same as in questions 3. Given this cros ion determine the following: a. (5 points) Find the normal stress acting at point A if M900 f"lb b. (5 points) Find the maximum compression stress acting on the c. (5 points) Find the maximum tension stress acting on the beami d. (5 points) If the maximum allowable stress is 5 ksi in either tension or compression determine the maximum bending moment M...
1- For the beam shown below find: a) The maximum normal stresses due to bending b) The maximum shearing stress c) The maximum combined normal stress d) The stresses at C e) The shearing stress at D f The stresses at F The beam is made from homogenous, isotropic, linear elastic material Please present a very neat work. 20 kips 48 ft.kip 32 kips 2k/ft 4 B F 4' 8' 4' 16" 3" 4" D 12" C 6" F 3"...
