Problem 2. (15 points) For the body shown below, find the moment of inertia matrix about...

Question

Question

Problem 2. (15 points) For the body shown below, find the moment of inertia matrix about the reference frame shown which is f

engineering Mechanical-Engineering

Answer 1

Answer #1

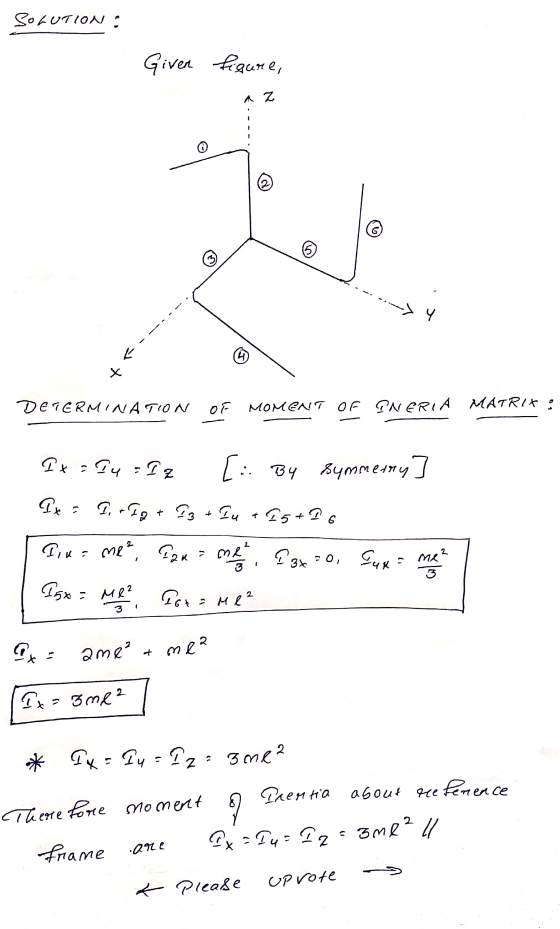

SOLUTION: Giver figure, AZ (2 > y L х DETERMINATION о- MOMENT OF INERIA MATRIX : Cх гч - Тz [.. Bч бутренни] Сх х я 7, -19 t

Answer 2

Similar Homework Help Questions

Problem 2. (15 points) For the body shown below, find the moment of inertia matrix about...

Problem 2. (15 points) For the body shown below, find the moment of inertia matrix about the reference frame shown which is formed by the x,y, and z-axes. Subsequently, find the values of principal moment of inertia. Consider each bar to be of mass m and length 1. BARI Gulz 17 BAR BARS shes SA 4
Find the Moment of inertia of: a) The rectangular solid formed by 0≤x≤a,0≤y≤b, and 0≤z≤c by...

Find the Moment of inertia of: a) The rectangular solid formed by 0≤x≤a,0≤y≤b, and 0≤z≤c by calculating Ix, Iy, Iz. [Hint: Compute one of the moments directly and then reason about the other cases via symmetry]. b) The x, y and z axes of a thin plate bounded by the parabola x=−y2 and the line x=−y with the density function defined as δ(x,y) = 1/y. Find the Moment of inertia of: (a) (15 points) The rectangular solid formed by 0...
