Use k=320 W/mK for your calculation Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins...
Use k=320 W/mK for your calculation w m-K Two-Dimensional Steady and transient Conduction - Heat Sink...
Use k=320 W/mK for your calculation

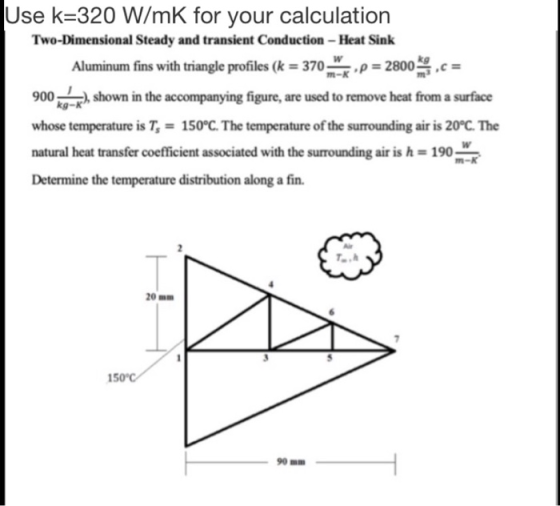

w m-K Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins with triangle profiles (k = 370- p=2800 kg 900 shown in the accompanying figure, are used to remove heat from a surface whose temperature is Tg = 150°C. The temperature of the surrounding air is 20°C. The natural heat transfer coefficient associated with the surrounding air is h = 190- Determine the temperature distribution along a fin. w m- T., 20 mm...
Use k=320 W/mK for your calculation w m-K Two-Dimensional Steady and transient Conduction - Heat Sink...
Use k=320 W/mK for your calculation
w m-K Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins with triangle profiles (k = 370- p=2800 kg 900 shown in the accompanying figure, are used to remove heat from a surface whose temperature is Tg = 150°C. The temperature of the surrounding air is 20°C. The natural heat transfer coefficient associated with the surrounding air is h = 190- Determine the temperature distribution along a fin. w m- T., 20 mm...
W kg m-K m3 Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins with triangle...
W kg m-K m3 Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins with triangle profiles (k = 290 p = 2800 ,C= 900 shown in the accompanying figure, are used to remove heat from a surface kg-K whose temperature is T, = 150°C. The temperature of the surrounding air is 20°C. The natural heat transfer coefficient associated with the surrounding air is h = 190, Determine the temperature distribution along a fin. w m-K Air To, h 20...
k=300 BRO p=2800 kg are m3 Aluminum Heat sinks of rectangular profile (k = 290 W...
k=300
BRO p=2800 kg are m3 Aluminum Heat sinks of rectangular profile (k = 290 W m-K c = 900 kg-K commonly used to remove heat from a surface whose temperature is Ts = 150°C. The temperature of the surrounding air is 20°C. The natural heat transfer coefficient associated with the surrounding air is h = 200 m2-K Determine the temperature distribution along a fin. W Alr Toogh 20 mm 3 5 150°C 90 mm Assumption: Steady State, Two-Dimensional Conduction...
finite element method 2. Aluminum fins with rectangular profiles (5 mm wide and 1 mm thick) are used to remove heat...
finite element method
2. Aluminum fins with rectangular profiles (5 mm wide and 1 mm thick) are used to remove heat from a surface whose temperature is 150°C. The temperature of ambient air is 20°C. The thermal conductivity of aluminium is 168 W/m.K. The natural convective coefficient associated with the surrounding air is 35 W/m2.K. The fins are 150 mm long and the heat loss from the tip of the fin may be neglected. (a) Determine the temperature distribution along...
Lecture Assignment #7 A heat sink is composed of an array of rectangular fins. h-63 W/m-K...
Lecture Assignment #7 A heat sink is composed of an array of rectangular fins. h-63 W/m-K T 35°C a=2 mm b-2 mm FL-14 mm W-24 cm th, 0.75 cm k-35 W/m-K p 8200 kg/m The heat sink is square with base side dimension W 24 cm and base thickness ths- 0.75 cm. The fins are square and have side dimension a 2 mm and length L 14 mm. Fins are separated by a distance b 2 mm. (Note that there...
Two-Dimensional Steady and Transient Conduction - Cooling a very large scale microelectronic chip, A simplified representation...
Two-Dimensional Steady and Transient Conduction - Cooling a very
large scale microelectronic chip,
A simplified
representation for cooling in very large-scale integration (VLSI)
of microelectronics is shown in the sketch below. A silicon chip is
mounted in a dielectric substrate, and one surface of the system is
convectively cooled, while the reminding surfaces are well
insulated from the surrounding. The problem is rendered two
dimensional by assuming the system to be very large in the
direction perpendicular to the paper....
Part 2 - Problems (75 marks) I. Copper fins (k 401 W/mK) of uniform square cross-section...
Part 2 - Problems (75 marks) I. Copper fins (k 401 W/mK) of uniform square cross-section (2mm x 2mm) and length L 30mm are used in a fin array to enhance heat transfer from a 40mm x 40mm surface that is maintained at Tb 170°C. There are a total of 100 fins, and the tip of the fins is maintained at 35°C. Air circulates over the fin array with a temperature of To = 15°C and a convection coefficient of...
The heat that is conducted through a body must frequently be removed by other heat transfer...
The heat that is conducted through a body must frequently be removed by other heat transfer processes. For example, the heat generated in an electronic device must be dissipated to the surroundings through convection by means of fins. Consider the one-dimensional aluminum fin (thickness t 3.0 mm, width 20 cm, length L) shown in Figure 1, that is exposed to a surrounding fluid at a temperature T. The conductivity of the aluminum fin (k) and coefficient of heat convection of...
blem 4 (20 pts) A square chip that is 12.7mm on a side has a maximum allowable chip operating temperature -75°C. To dissipate heat produced in the chip, a 4 x 4 array of copper (k-400 W/m.K) pin fins...
blem 4 (20 pts) A square chip that is 12.7mm on a side has a maximum allowable chip operating temperature -75°C. To dissipate heat produced in the chip, a 4 x 4 array of copper (k-400 W/m.K) pin fins is proposed to be etallurgically joined to the outer surface of the chip. The convection coefficient is h-250 W/m'K and ambient air mperature isTo-20°C. The pin fin dimeter is D,-1.5mm and length is L,-16mm. Assuming steady-state uniform chip temperature Te-75°C and...
Use k=320 W/mK for your calculation
w m-K Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins with triangle profiles (k = 370- p=2800 kg 900 shown in the accompanying figure, are used to remove heat from a surface whose temperature is Tg = 150°C. The temperature of the surrounding air is 20°C. The natural heat transfer coefficient associated with the surrounding air is h = 190- Determine the temperature distribution along a fin. w m- T., 20 mm...
Use k=320 W/mK for your calculation
w m-K Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins with triangle profiles (k = 370- p=2800 kg 900 shown in the accompanying figure, are used to remove heat from a surface whose temperature is Tg = 150°C. The temperature of the surrounding air is 20°C. The natural heat transfer coefficient associated with the surrounding air is h = 190- Determine the temperature distribution along a fin. w m- T., 20 mm...
W kg m-K m3 Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins with triangle profiles (k = 290 p = 2800 ,C= 900 shown in the accompanying figure, are used to remove heat from a surface kg-K whose temperature is T, = 150°C. The temperature of the surrounding air is 20°C. The natural heat transfer coefficient associated with the surrounding air is h = 190, Determine the temperature distribution along a fin. w m-K Air To, h 20...
k=300
BRO p=2800 kg are m3 Aluminum Heat sinks of rectangular profile (k = 290 W m-K c = 900 kg-K commonly used to remove heat from a surface whose temperature is Ts = 150°C. The temperature of the surrounding air is 20°C. The natural heat transfer coefficient associated with the surrounding air is h = 200 m2-K Determine the temperature distribution along a fin. W Alr Toogh 20 mm 3 5 150°C 90 mm Assumption: Steady State, Two-Dimensional Conduction...
finite element method
2. Aluminum fins with rectangular profiles (5 mm wide and 1 mm thick) are used to remove heat from a surface whose temperature is 150°C. The temperature of ambient air is 20°C. The thermal conductivity of aluminium is 168 W/m.K. The natural convective coefficient associated with the surrounding air is 35 W/m2.K. The fins are 150 mm long and the heat loss from the tip of the fin may be neglected. (a) Determine the temperature distribution along...
Lecture Assignment #7 A heat sink is composed of an array of rectangular fins. h-63 W/m-K T 35°C a=2 mm b-2 mm FL-14 mm W-24 cm th, 0.75 cm k-35 W/m-K p 8200 kg/m The heat sink is square with base side dimension W 24 cm and base thickness ths- 0.75 cm. The fins are square and have side dimension a 2 mm and length L 14 mm. Fins are separated by a distance b 2 mm. (Note that there...
Two-Dimensional Steady and Transient Conduction - Cooling a very
large scale microelectronic chip,
A simplified
representation for cooling in very large-scale integration (VLSI)
of microelectronics is shown in the sketch below. A silicon chip is
mounted in a dielectric substrate, and one surface of the system is
convectively cooled, while the reminding surfaces are well
insulated from the surrounding. The problem is rendered two
dimensional by assuming the system to be very large in the
direction perpendicular to the paper....
Part 2 - Problems (75 marks) I. Copper fins (k 401 W/mK) of uniform square cross-section (2mm x 2mm) and length L 30mm are used in a fin array to enhance heat transfer from a 40mm x 40mm surface that is maintained at Tb 170°C. There are a total of 100 fins, and the tip of the fins is maintained at 35°C. Air circulates over the fin array with a temperature of To = 15°C and a convection coefficient of...
The heat that is conducted through a body must frequently be removed by other heat transfer processes. For example, the heat generated in an electronic device must be dissipated to the surroundings through convection by means of fins. Consider the one-dimensional aluminum fin (thickness t 3.0 mm, width 20 cm, length L) shown in Figure 1, that is exposed to a surrounding fluid at a temperature T. The conductivity of the aluminum fin (k) and coefficient of heat convection of...
blem 4 (20 pts) A square chip that is 12.7mm on a side has a maximum allowable chip operating temperature -75°C. To dissipate heat produced in the chip, a 4 x 4 array of copper (k-400 W/m.K) pin fins is proposed to be etallurgically joined to the outer surface of the chip. The convection coefficient is h-250 W/m'K and ambient air mperature isTo-20°C. The pin fin dimeter is D,-1.5mm and length is L,-16mm. Assuming steady-state uniform chip temperature Te-75°C and...
