Homework Answers

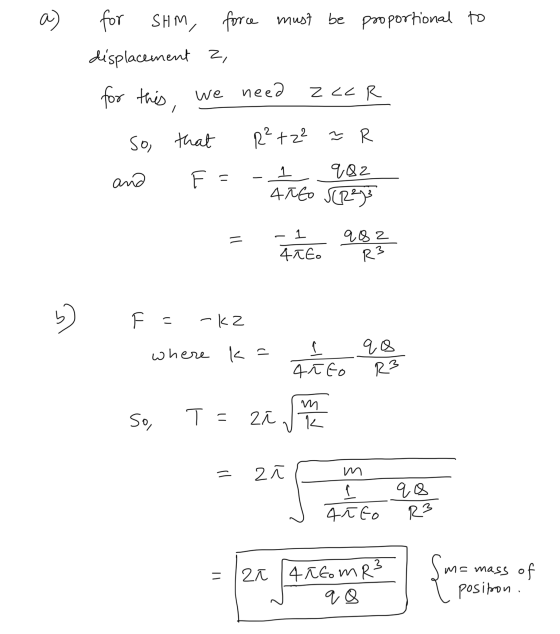

For the equation to yield simple harmonic motion, the distance
from mean position must be very small compared to the
radius.
Add Answer to:

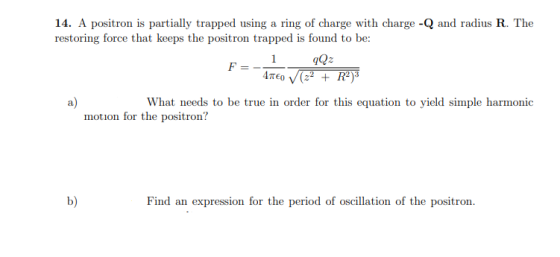

14. A positron is partially trapped using a ring of charge with charge - Q and...
