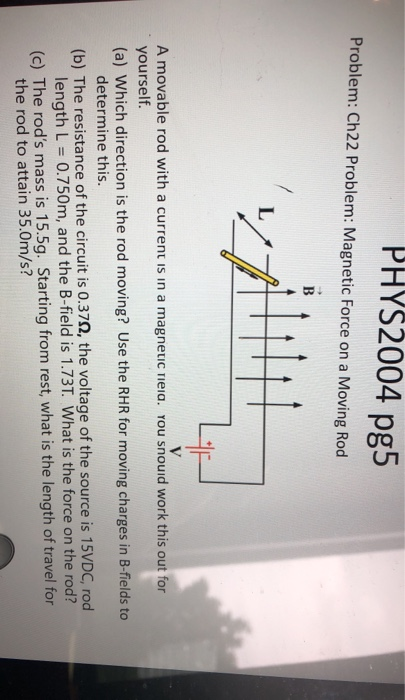

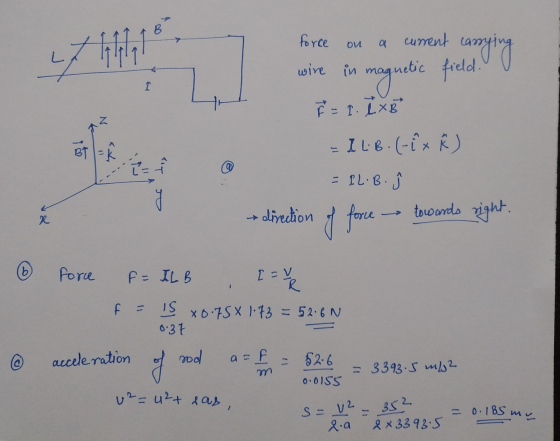

PHYS2004 pg5 Problem: Ch22 Problem: Magnetic Force on a Moving Rod B V A movable rod...
Question5 (5 points) A linear motor composed of conducting rod (the rotor) and permanent magnetic stator that provides a uniform magnetic flux density of 0.8 tesla in the shown direction. The rai...
Question5 (5 points) A linear motor composed of conducting rod (the rotor) and permanent magnetic stator that provides a uniform magnetic flux density of 0.8 tesla in the shown direction. The rail is composed of conducting material that has a negligible resistance. The effective length of the rod in contact with the rail is L-9 cm with total resistance of 0.9 ohm. If a dc voltage source of 9 volt is connected as shown in the figure and the resistance...
#3 only. Thanks! In the generator rod take B = 2.5 T, v = 4 m/s,...
#3 only. Thanks!
In the generator rod take B = 2.5 T, v = 4 m/s, l =30 cm, and current 2.0 A, clockwise. Find (a) increase in magnetic flux in one second, (b) the emf, (c) the magnetic back-force on the rod-the external force needed to keep it moving. (d) Calculate the rate (i) at which electrical energy is produced by the emf, and (ii) at which the external force does work, showing equality. (e) Find the resistance of...
There is a uniform magnetic field of magnitude B, pervading all space, perpendicular to the plane of rod and rails.
There is a uniform magnetic field of magnitude B, pervading all space, perpendicular to the plane of rod and rails. The rod is released from rest, and it is observed that it accelerates to the left. In what direction does the magnetic field point?a) A conducting rod is free to slide on two parallel rails with negligible friction. At the right end of the rails, a voltage source of strength V in series with a resistor of resistance R makes...
PRACTICE IT Use the worked example above to help you solve this problem. (a) The sliding...
PRACTICE IT Use the worked example above to help you solve this problem. (a) The sliding bar in the figure has a length of 0.488 m and moves at 2.37 m/s in a magnetic field of magnitude 0.213 T. Using the concept of motional emf, find the induced voltage in the moving rod. (b) If the resistance in the circuit is 0.575, find the current in the circuit and the power delivered to the resistor. (Note: The current, in this...
In another application of the U shape loop problem above, Consider A rod of length 40...
In another application of the U shape loop problem above, Consider A rod of length 40 cm moving with a velocity of 30 m/s to the left in a magnetic field of 0.2 T into the page. The loop has a small resistance of 2 ohms. Find a) the emf in the loop, b) the magnitude and direction of induced current, c) the magnetic force acting on the rod and its direction, d) the appied force needed to maintain constant...
Problem 3 In the figure below, a conducting rod rests on frictionless conducting parallel rails. There...
Problem 3
In the figure below, a conducting
rod rests on frictionless conducting parallel rails. There is a
uniform magnetic going into the page of .50T. The rod is pulled at
a constant velocity of 3m/s. The resistance of the rails and rod is
negligible; however there is a 0.5F capacitor at then end of the
rails. The distance between the rails is 20cm.
a) Calculate the magnitude and
direction of the emf in the circuit. Indicate the direction of...
8.) (30 points) A rectangular frame of conducting wire has negligible resistance and a width 1.0 m is placed in a magnetic field (directed into the page) of 2.0 T, as shown in the figure A m...
8.) (30 points) A rectangular frame of conducting wire has negligible resistance and a width 1.0 m is placed in a magnetic field (directed into the page) of 2.0 T, as shown in the figure A metal conducting bar having a resistance of 5.0Ω is placed across the frame, maintaining contact with the frame. conducting frame rod If the bar is moving at a speed of 1.5m/s, what is the voltage (em) induced across the ends of the bar? a)...
This problem explores how a current-carrying wire can be accelerated by a magnetic field.
This problem explores how a current-carrying wire can be accelerated by a magnetic field. You will use the ideas of magnetic flux and the EMF due to change of flux through a loop. Note that there is an involved follow-up part that will be shown once you have found the answer to Part B.A.) A conducting rod is free to slide on two parallel rails with negligible friction. At the right end of the rails, a voltage source of strength...
PLEASE HELP WITH THIS PROBLEM THANK YOU :)) Question 19 (4 points) A conducting rod whose...
PLEASE HELP WITH THIS PROBLEM
THANK YOU :))
Question 19 (4 points) A conducting rod whose length is e = 30 cm is placed on a U-shaped metal wire that is connected to a light bulb having a resistance of 5.0 as shown in the figure. The wire and the rod are in the plane of the page. A constant uniform magnetic field of strength 0.50 T is applied perpendicular to and out of the paper. An external applied force...
3R MC 12 Two identical solenoids are connected to each other so that they carry the same current, and are inserted thro...
3R MC 12 Two identical solenoids are connected to each other so that they carry the same current, and are inserted through two loops in an electrical circuit, as shown left diagram. The solenoids are oriented such that when you loolk from one end, the currents are circulating in opposite directions, as showin in the second diagram. For a period of time, the current flowing through the solenoids is changing in a steady linear manner: It) ~ t. During this...
Question5 (5 points) A linear motor composed of conducting rod (the rotor) and permanent magnetic stator that provides a uniform magnetic flux density of 0.8 tesla in the shown direction. The rail is composed of conducting material that has a negligible resistance. The effective length of the rod in contact with the rail is L-9 cm with total resistance of 0.9 ohm. If a dc voltage source of 9 volt is connected as shown in the figure and the resistance...
#3 only. Thanks!
In the generator rod take B = 2.5 T, v = 4 m/s, l =30 cm, and current 2.0 A, clockwise. Find (a) increase in magnetic flux in one second, (b) the emf, (c) the magnetic back-force on the rod-the external force needed to keep it moving. (d) Calculate the rate (i) at which electrical energy is produced by the emf, and (ii) at which the external force does work, showing equality. (e) Find the resistance of...
PRACTICE IT Use the worked example above to help you solve this problem. (a) The sliding bar in the figure has a length of 0.488 m and moves at 2.37 m/s in a magnetic field of magnitude 0.213 T. Using the concept of motional emf, find the induced voltage in the moving rod. (b) If the resistance in the circuit is 0.575, find the current in the circuit and the power delivered to the resistor. (Note: The current, in this...
Problem 3
In the figure below, a conducting
rod rests on frictionless conducting parallel rails. There is a
uniform magnetic going into the page of .50T. The rod is pulled at
a constant velocity of 3m/s. The resistance of the rails and rod is
negligible; however there is a 0.5F capacitor at then end of the
rails. The distance between the rails is 20cm.
a) Calculate the magnitude and
direction of the emf in the circuit. Indicate the direction of...
8.) (30 points) A rectangular frame of conducting wire has negligible resistance and a width 1.0 m is placed in a magnetic field (directed into the page) of 2.0 T, as shown in the figure A metal conducting bar having a resistance of 5.0Ω is placed across the frame, maintaining contact with the frame. conducting frame rod If the bar is moving at a speed of 1.5m/s, what is the voltage (em) induced across the ends of the bar? a)...
PLEASE HELP WITH THIS PROBLEM
THANK YOU :))
Question 19 (4 points) A conducting rod whose length is e = 30 cm is placed on a U-shaped metal wire that is connected to a light bulb having a resistance of 5.0 as shown in the figure. The wire and the rod are in the plane of the page. A constant uniform magnetic field of strength 0.50 T is applied perpendicular to and out of the paper. An external applied force...
3R MC 12 Two identical solenoids are connected to each other so that they carry the same current, and are inserted through two loops in an electrical circuit, as shown left diagram. The solenoids are oriented such that when you loolk from one end, the currents are circulating in opposite directions, as showin in the second diagram. For a period of time, the current flowing through the solenoids is changing in a steady linear manner: It) ~ t. During this...
