Question

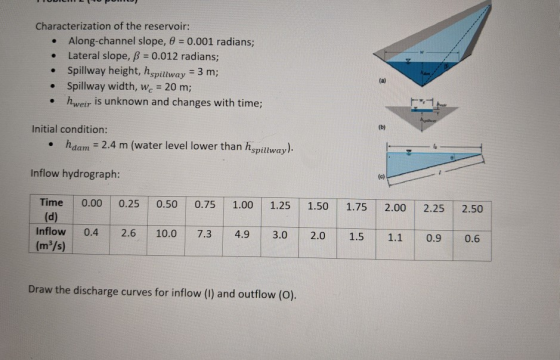

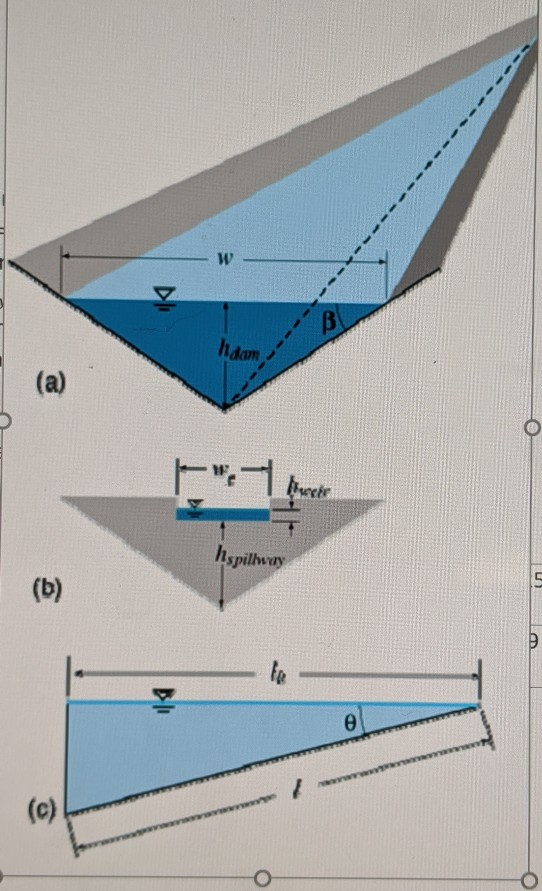

. Characterization of the reservoir: • Along-channel slope, 0 = 0.001 radians; Lateral slope, B = 0.012 radians; • Spillway height, hspillway = 3 m; Spillway width, wc = 20 m; • hweir is unknown and changes with time; (a) (b) Initial condition: • hdam = 2.4 m (water level lower than hspillway). Inflow hydrograph: (c) 0.00 0.25 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.25 2.50 Time (d) Inflow (m/s) 0.4 2.6 10.0 7.3 4.9 3.0 2.0 1.5 1.1 0.9 0.6 Draw the discharge curves for inflow (l) and outflow (O).

Can someone please answer this question. Thanks

Answer 1
