Homework Answers
Block Size = 32 byte => 2^5
Cache size = 64KB
Number of words = 2^16 / 2^5 => 2^11
Offset = 5
Index = 11
Tag = 32 - 5 - 11 => 16
========================================
Thanks, let me now if there is any concern.
Add Answer to:
Question 17 12 points A direct mapped cache holds 64KB of useful data (not including tag...
12 points A direct mapped cache holds 64KB of useful data (not including tag or control...

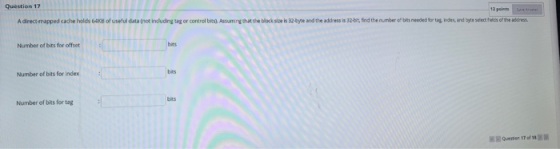

12 points A direct mapped cache holds 64KB of useful data (not including tag or control bits). Assuming that the block streis 32-byte and the address is 32-bit, find the number of bits needed for tag index and byte select fields of the address Number of bits for offset bits Number of bits for index bits Number of bits for tag Moving to another question will save this response. Question 17 of 18
