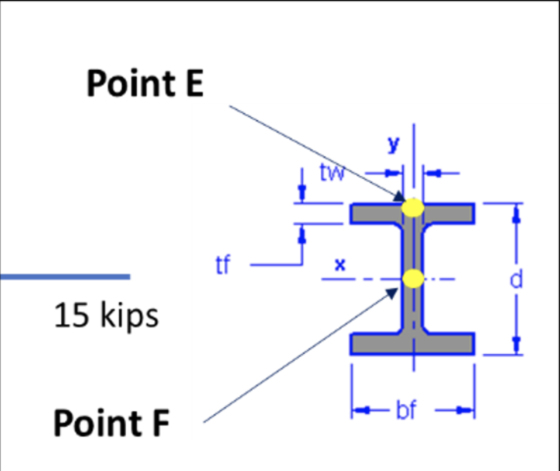

Which location will have the maximum bending stress?
Neither point E nor F
Point F
Either points F or F
Point E
Compare the two and see which one is bigger please
Homework Answers
- Point E.

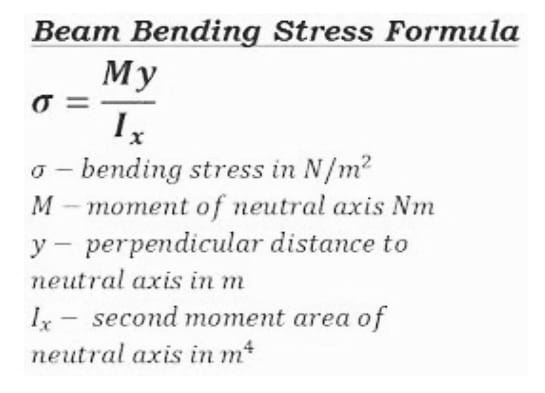

Note- bending stress in any beam is proportional to the distance from neutral axis ( in this case x-axis shown in Figure). Below relation shows bending stress on section.
