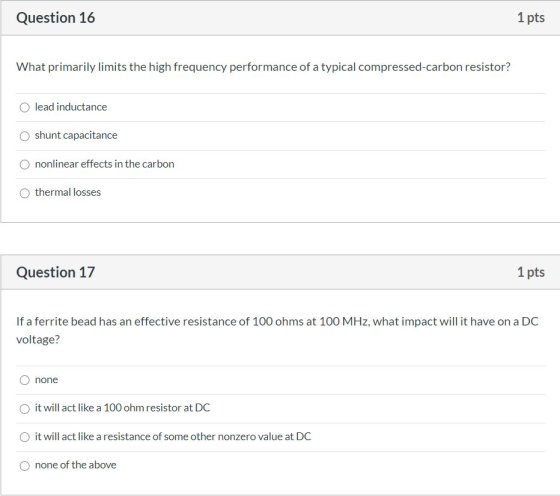

Question 16 1 pts What primarily limits the high frequency performance of a typical compressed-carbon resistor? lead inductance shunt capacitance nonlinear effects in the carbon thermal losses Question 17 1 pts If a ferrite bead has an effective resistance of 100 ohms at 100 MHz, what impact will it have on a DC voltage? none it will act like a 100 ohm resistor at DC O it will act like a resistance of some other nonzero value at DC none of the above

Final question:

Answer 1

16: Option B is correct

Option b is Shunt capacitance

17.option C is correct

option c is It will act like a resistance of some other nonzero value at DC\

18 Option A is correct

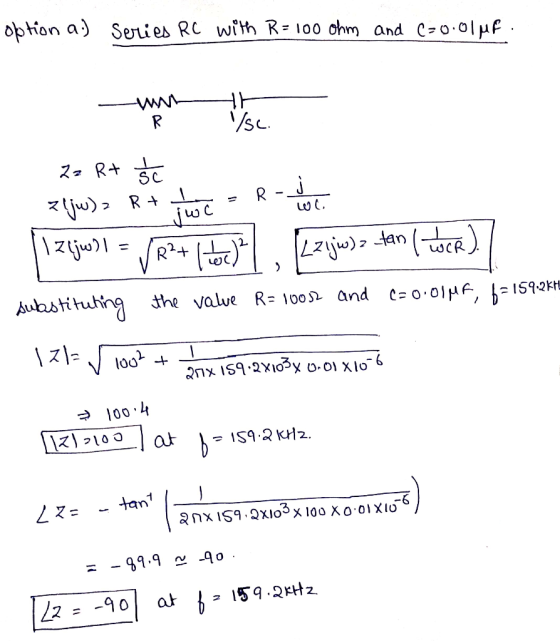

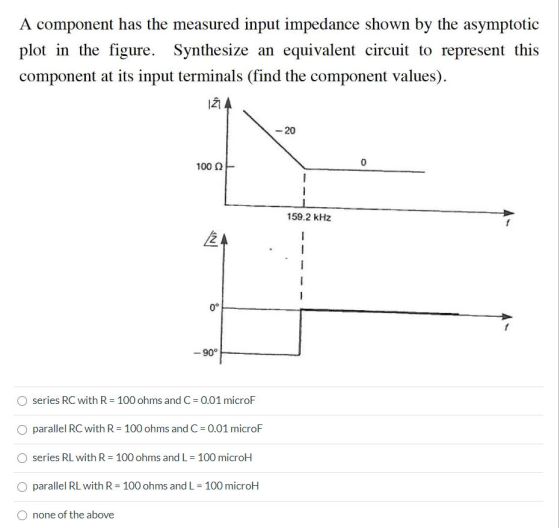

option a.) Series RC with R= 100 ohm and C=0.01 uf. th /sc. R R Zz Rt sc jwe I zijwi R2+ Hec) z (jw) R + WC Lzijw)= tan | lock) WER > Aubstituhing the value R=1002 and C=0.01MF, b= 159.2/14 1002 + 201x 159.2x103x 0.01 x 10-6 » 100.4 L1212100 at ba 159.2 kHz. tant L2= anx 159.2x103 x 100 x0.01x10 = -99.9 ~ -40 . at 159.2kHz a 22 = -90
