Homework Answers
Add Answer to:

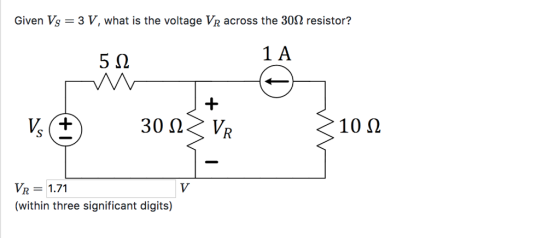

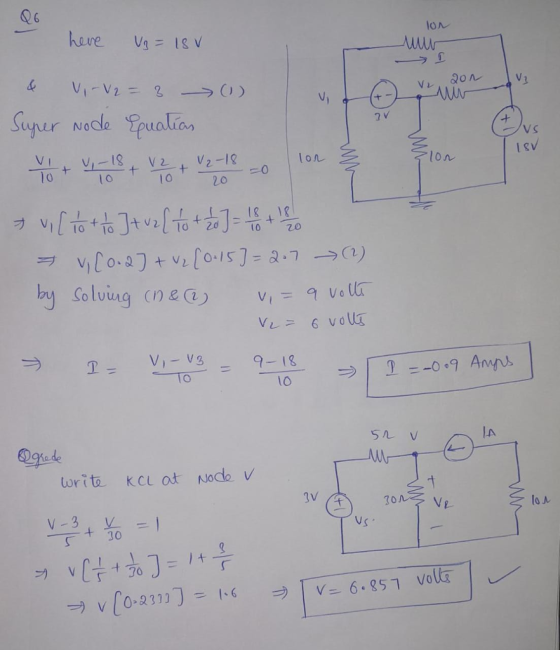

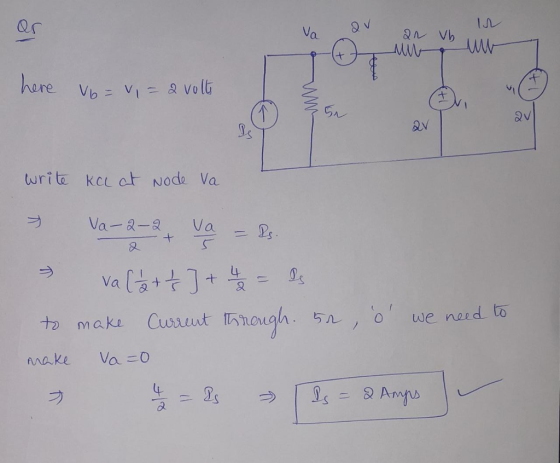

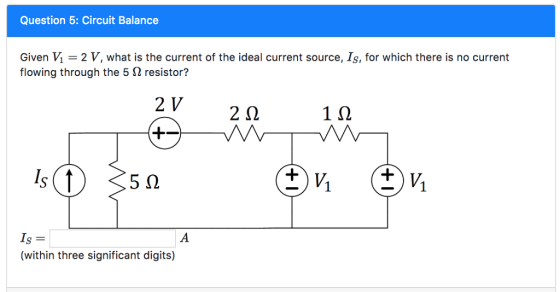

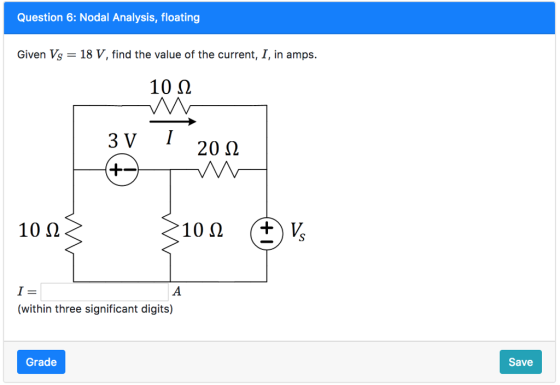

Question 6: Nodal Analysis, floating Given Vs18 V, find the value of the current, I, in...
Problem 03.025-Nodal analysis: Independent current source In the circuit given below, R-15 Ω. Determine the nodal...
Problem 03.025-Nodal analysis: Independent current source In the circuit given below, R-15 Ω. Determine the nodal voltages using nodal analysis and MATLAB. 20Ω 10Ω PI 4 A 8Ω 20Ω The value of nodal voltage vi is The value of nodal voltage v2 is The value of nodal voltage vs is The value of nodal voltage vs is V. References eBook&Resources Hints
Perform nodal analysis on the circuit shown below in Figure 5 to find the unknown node voltage equations
5. Perform nodal analysis on the circuit shown below in Figure 5 to find the unknown node voltage equations. Let V = 3 V; I = 0.5 A; R1 = 20 Ω; R2 = 30Ω; R3 = 10Ω; R4 = 30Ω; R5 = 20Ω.
1. Using Nodal analysis, determine the current i, and the voltage v 3 v 6 2
1. Using Nodal analysis, determine the current i, and the voltage v 3 v 6 2
Can you solve this problem using NODAL ANALYSIS?? Please show work Question 2: Circuit Analysis, 5...
Can you solve this problem using NODAL ANALYSIS?? Please
show work
Question 2: Circuit Analysis, 5 elements 7. If Vs 3V : 7Ω, R- 20, R35Ω, and R Let R1 Find the value of V\ R4 WI R2 V2 Vs R3 V3 V = .1428 (within three significant digits)
3) Using Nodal analysis technique find Vx in the circuit shown below 10 V 20 2...
3) Using Nodal analysis technique find Vx in the circuit shown below 10 V 20 2 5Ω Vi V2 V3 9 A 10Ω 4) Using superposition theorem find lx for the circuit shown below: 10Ω 30 V+ 10 2 5 S2 -6 A
Problem 03.020 Nodal analysis: Independent voltage source and current dependent voltage source In the circuit given...
Problem 03.020 Nodal analysis: Independent voltage source and current dependent voltage source In the circuit given below, R-25 ?. Find v1, v2, and v3 using nodal analysis. 240 V 20i 20 ? 3 li 40? ": 10? The value of vy in the circuit is The value of v2 in the circuit is| |V The value of vy in the circuit isv V.
Using Nodal analysis to find lo 3νο 3 Ω 6 Ω 6 Ω 10 V
Using Nodal analysis to find lo 3νο 3 Ω 6 Ω 6 Ω 10 V
3-1 Use nodal analysis to find v, in the circuit shown in Fig. 3-6 if element...
3-1 Use nodal analysis to find v, in the circuit shown in Fig. 3-6 if element A is: (a) a 2-A current source, arrow pointing right; (b) an 8-92 resistor; (c) a 10-V voltage source, the positive reference on the right. ns:- 17 A 2Ω Fig. 3-6 See Drill Probs. 3-1 and 3-2.
QUESTION 8 Given X=8 A, use nodal analysis to set up an equation of the following...
QUESTION 8 Given X=8 A, use nodal analysis to set up an equation of the following form for the circuit. Give the value of a 3V, - 3V, = a 3 Ω 6Ω clickup Dac. Ta Question Completion Status: 6 Ω 7A 1 Ω 5 Ω Click Save and Submit to save and submit. Click Save All Ansters to save all answer
Just wanna check if its right? Shin 3 2 (20 pts) Use nodal analysis to find...
Just wanna check if its right?
Shin 3 2 (20 pts) Use nodal analysis to find V, in the circuit belotw 40 V ( 20Ω 16 2 ao 0 10 10 10 60v A- n a-40 v 醫. : 60
Problem 03.025-Nodal analysis: Independent current source In the circuit given below, R-15 Ω. Determine the nodal voltages using nodal analysis and MATLAB. 20Ω 10Ω PI 4 A 8Ω 20Ω The value of nodal voltage vi is The value of nodal voltage v2 is The value of nodal voltage vs is The value of nodal voltage vs is V. References eBook&Resources Hints
1. Using Nodal analysis, determine the current i, and the voltage v 3 v 6 2
Can you solve this problem using NODAL ANALYSIS?? Please
show work
Question 2: Circuit Analysis, 5 elements 7. If Vs 3V : 7Ω, R- 20, R35Ω, and R Let R1 Find the value of V\ R4 WI R2 V2 Vs R3 V3 V = .1428 (within three significant digits)
3) Using Nodal analysis technique find Vx in the circuit shown below 10 V 20 2 5Ω Vi V2 V3 9 A 10Ω 4) Using superposition theorem find lx for the circuit shown below: 10Ω 30 V+ 10 2 5 S2 -6 A
Problem 03.020 Nodal analysis: Independent voltage source and current dependent voltage source In the circuit given below, R-25 ?. Find v1, v2, and v3 using nodal analysis. 240 V 20i 20 ? 3 li 40? ": 10? The value of vy in the circuit is The value of v2 in the circuit is| |V The value of vy in the circuit isv V.
Using Nodal analysis to find lo 3νο 3 Ω 6 Ω 6 Ω 10 V
3-1 Use nodal analysis to find v, in the circuit shown in Fig. 3-6 if element A is: (a) a 2-A current source, arrow pointing right; (b) an 8-92 resistor; (c) a 10-V voltage source, the positive reference on the right. ns:- 17 A 2Ω Fig. 3-6 See Drill Probs. 3-1 and 3-2.
QUESTION 8 Given X=8 A, use nodal analysis to set up an equation of the following form for the circuit. Give the value of a 3V, - 3V, = a 3 Ω 6Ω clickup Dac. Ta Question Completion Status: 6 Ω 7A 1 Ω 5 Ω Click Save and Submit to save and submit. Click Save All Ansters to save all answer
Just wanna check if its right?
Shin 3 2 (20 pts) Use nodal analysis to find V, in the circuit belotw 40 V ( 20Ω 16 2 ao 0 10 10 10 60v A- n a-40 v 醫. : 60
