A thin wire with linear charge density extends from y-1.60 m to infinity. If λο-1.50 x...

Question

Question

science physics

Answer 1

Answer #1

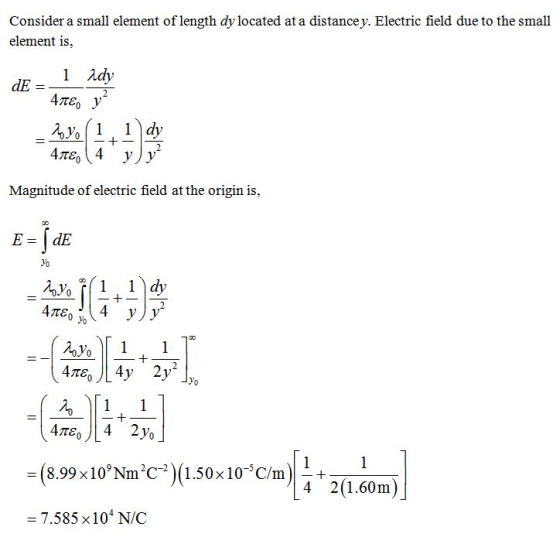

Consider a small element of length dy located at a distancey. Electric field due to the smal element is Magnitude of electric

Answer 2

Similar Homework Help Questions

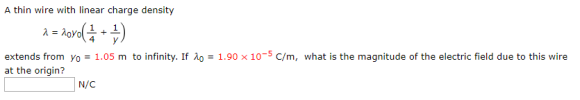

Please answer and show all work A thin wire with linear charge density 4 1.90 ×...
