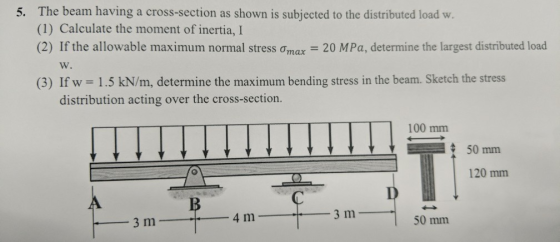

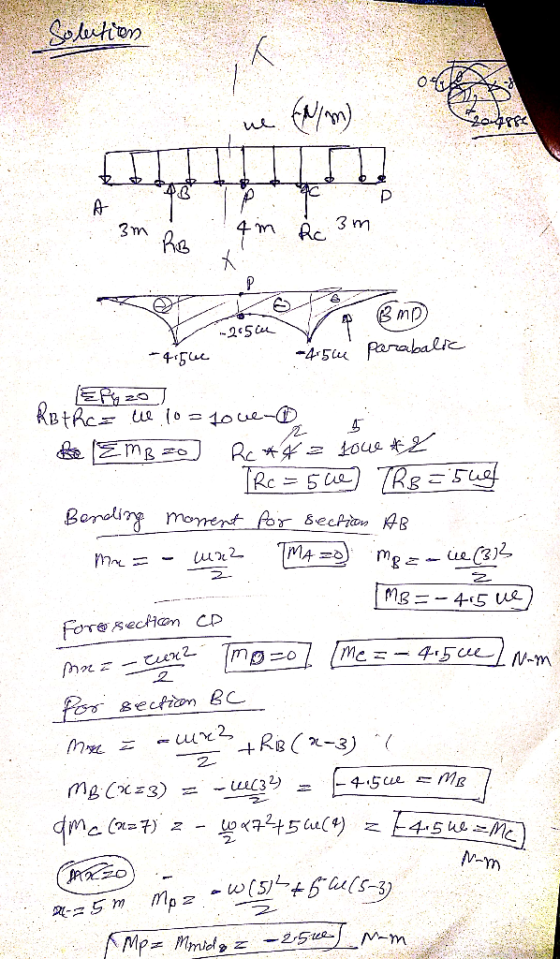

The beam having a cross-section as shown is subjected to the distributed load w (1) Calculate...
The simply supported beam, with a U cross section, is subjected to a uniformly distributed force...
The simply supported beam, with a U cross section, is subjected to a uniformly distributed force of 8 kN/m and a concentrated load of 12 kN as shown. (a) Determine the reaction at supports A and B, (b) sketch the shear diagram and the moment diagram, (c) determine the location of the neutral axis of the cross section and calculate its area moment of inertia about the neutral axis, and (d) determine absolute maximum bending stress and (e) absolute maximum...
The simply-supported beam having I-beam cross-section as shown in figure is to carry a uniformly distributed...
The simply-supported beam having I-beam cross-section as shown in figure is to carry a uniformly distributed load over its entire 1.2m length. Specify the maximum allowable load if the beam is made from malleable iron, ASTM A220, class 80002. The allowable tensile stress is 164 MPa and allowable compressive stress is 412 MPa. The centroid of the section is located at 35 mm from the bottom and moment of inertia are Ix = 2.66 x 10 mm". (a) Draw loading...
The simply supported beam is subjected to a uniform distributed load, w of 30 kN/m in...
The simply supported beam is subjected to a uniform distributed load, w of 30 kN/m in the negative y-direction and a point load, P of 15 kN in the negative z-direction. The total length, L of the beam is 6 m. Answer the questions that follow: 'n Eenvoudige opgelegde balk word belas met 'n uniform verspreide belasting van w 30 kN/m in die negatiewe y-rigting en 'n puntlas P = 15 kN in die negatiewe z-rigting. Die totale lengte, L...
With a U cross section, is subjected to uniformly distributed force 11 kN/m and a concentrated load of 12 kN as shown
With a U cross section, is subjected to uniformly distributed force 11 kN/m and a concentrated load of 12 kN as shown. (a) the reaction at supports A and B, (b) sketch the shear diagram and the moment diagram, (c) determine the location of neutral axis of the cross section and calculate its area moment of inertia about the neutral axis, and (d) determine absolute maximum bending stress and (e) absolute maximum transverse shear stress.
The beam has the triangular cross section shown. The allowable stress in bending is 150 MPa....
The beam has the triangular cross section shown. The allowable stress in bending is 150 MPa. Determine the largest allowed uniform distributed load w. 6 m 300 mm 150 mm
A wood beam (1) is reinforced on its lower surface by a steel plate (2) as...
A wood beam (1) is reinforced on its lower surface by a steel
plate (2) as shown in the figure. Dimensions of the cross section
are b 1 = 220 mm , d = 385 mm , b 2 = 190 mm , and t = 25 mm . The
elastic moduli of the wood and steel are E 1 = 12.5 GPa and E 2 =
200 GPa , respectively. The allowable bending stresses of the wood
and steel...
PLEASE PRINT Question Four The beam has a cross section shown below and is subjected to...
PLEASE PRINT
Question Four The beam has a cross section shown below and is subjected to a 1 kN load as shown. The beam AB has a length of 3 m. a) Draw the shear force and bending moment diagrams. b) Determine the maximum bending stress. c) Where is the location of the maximum stress in b) above? 30 mm 30 mm 30 mm 50 mm t 40 mm 50 m 40mm
The beam has the rectangular cross section shown. If w 1 kN/m
The beam has the rectangular cross section shown. If w 1 kN/m, determine the maximum bending stress in the beam. Sketch the stress distribution acting over the cross section.
If the beam is subjected to a moment of M = 100 kn-m, determine the bending stress at points A, B, and C.
If the beam is subjected to a moment of M = 100 kn-m, determine the bending stress at points A, B, and C. Sketch the bending stress distribution on the cross Section. If the beam is made of a material having an allowable tensile and compressive stress of σallow(T) = 125 MPa and σallow(C) = 150 MPa, respectively, determine the maximum moment M that can be applied to the beam.
Determine the largest permissible distributed load w for the beam shown, knowing that the allowable normal...
Determine the largest permissible distributed load w for the beam shown, knowing that the allowable normal stress is +80 MPa in tension and -100 MPa in compression. Round the final answer to one decimal place.) 60 mm t0 20 mm 02 m 0.2 m kN/m The largest permissible distributed load w for the beam shown is
The simply-supported beam having I-beam cross-section as shown in figure is to carry a uniformly distributed load over its entire 1.2m length. Specify the maximum allowable load if the beam is made from malleable iron, ASTM A220, class 80002. The allowable tensile stress is 164 MPa and allowable compressive stress is 412 MPa. The centroid of the section is located at 35 mm from the bottom and moment of inertia are Ix = 2.66 x 10 mm". (a) Draw loading...
The simply supported beam is subjected to a uniform distributed load, w of 30 kN/m in the negative y-direction and a point load, P of 15 kN in the negative z-direction. The total length, L of the beam is 6 m. Answer the questions that follow: 'n Eenvoudige opgelegde balk word belas met 'n uniform verspreide belasting van w 30 kN/m in die negatiewe y-rigting en 'n puntlas P = 15 kN in die negatiewe z-rigting. Die totale lengte, L...
The beam has the triangular cross section shown. The allowable stress in bending is 150 MPa. Determine the largest allowed uniform distributed load w. 6 m 300 mm 150 mm
A wood beam (1) is reinforced on its lower surface by a steel
plate (2) as shown in the figure. Dimensions of the cross section
are b 1 = 220 mm , d = 385 mm , b 2 = 190 mm , and t = 25 mm . The
elastic moduli of the wood and steel are E 1 = 12.5 GPa and E 2 =
200 GPa , respectively. The allowable bending stresses of the wood
and steel...
PLEASE PRINT
Question Four The beam has a cross section shown below and is subjected to a 1 kN load as shown. The beam AB has a length of 3 m. a) Draw the shear force and bending moment diagrams. b) Determine the maximum bending stress. c) Where is the location of the maximum stress in b) above? 30 mm 30 mm 30 mm 50 mm t 40 mm 50 m 40mm
Determine the largest permissible distributed load w for the beam shown, knowing that the allowable normal stress is +80 MPa in tension and -100 MPa in compression. Round the final answer to one decimal place.) 60 mm t0 20 mm 02 m 0.2 m kN/m The largest permissible distributed load w for the beam shown is
