Question

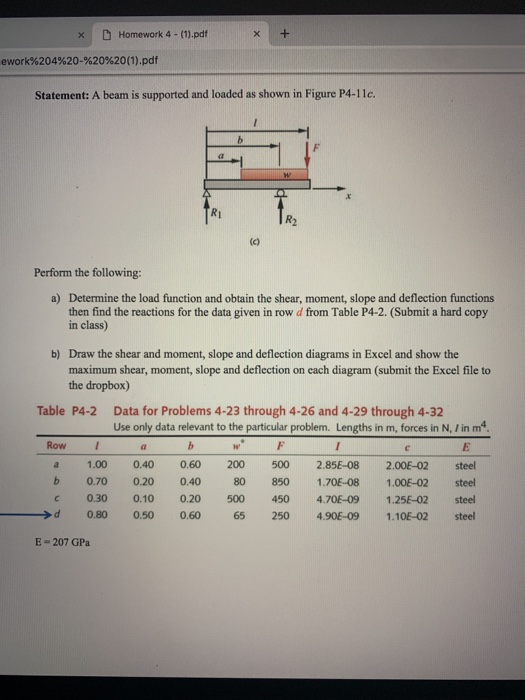

x Homework 4 -(1).pdf ework%204%20-%20%20(1).pdf Statement: A beam is supported and loaded as shown in Figure P4-11c. Ri R2 Perform the following: a) Determine the load function and obtain the shear, moment, slope and deflection functions then find the reactions for the data given in row d from Table P4-2. (Submit a hard copy in class) Draw the shear and moment, slope and deflection diagrams in Excel and show the maximum shear, moment, slope and deflection on each diagram (submit the Excel file to the dropbox) b) Table P4-2 Data for Problems 4-23 through 4-26 and 4-29 through 4-32 Use only data relevant to the particular problem. Lengths in m, forces in N, I in m4 Row I is a 1.00 0.40 0.60 200 500 2.85E-08 2.00E-02 steel b 0.70 0.20 0.40 80 850 1.70E-08 1.00E-02 steel c 0.30 0.10 0.20 500 450 4.70E-09 1.25E-02 steel d 0.80 0.50 0.60 65 250 490E-09 1.10E-02 steel E- 207 GPa

Answer 1

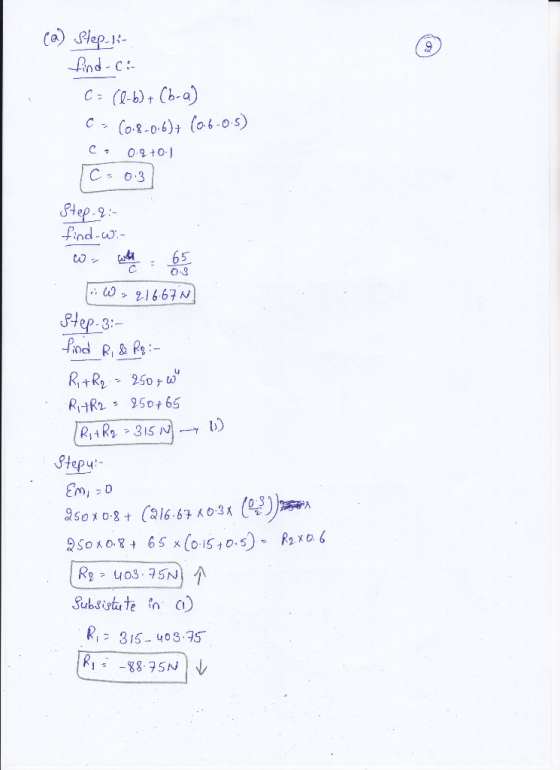

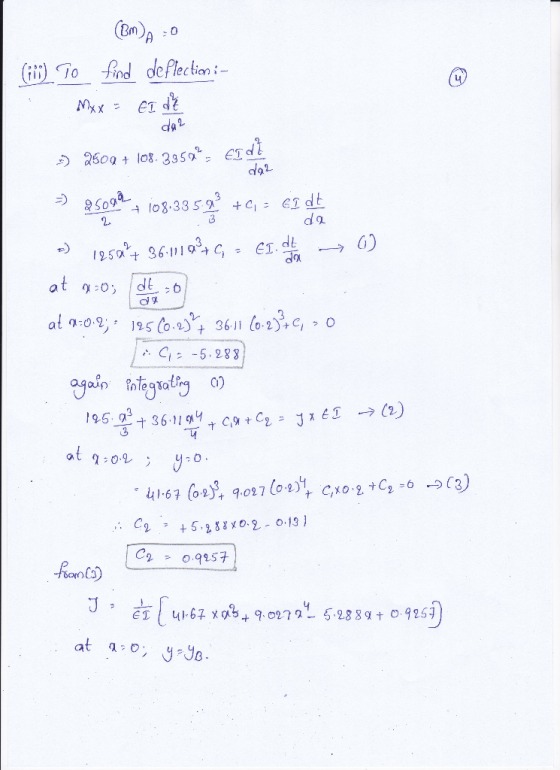

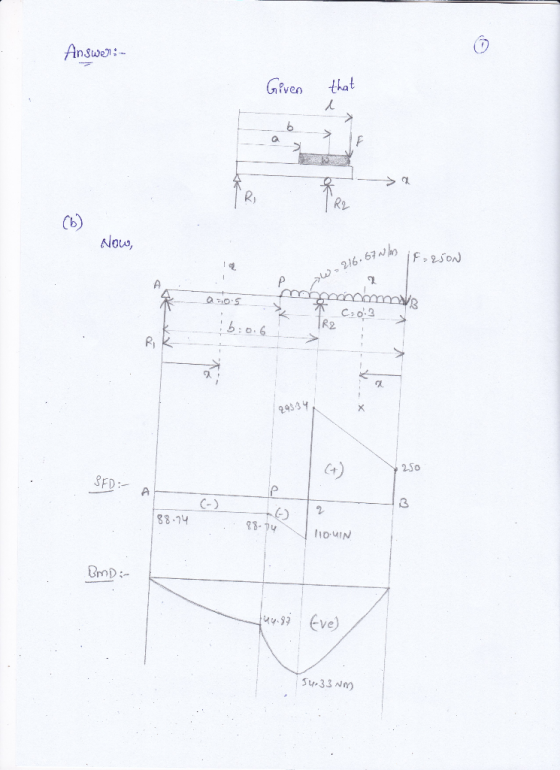

ク 950ナ216.67 xo.2、 Ca:02 ore meat Com belween and P3:- 2-

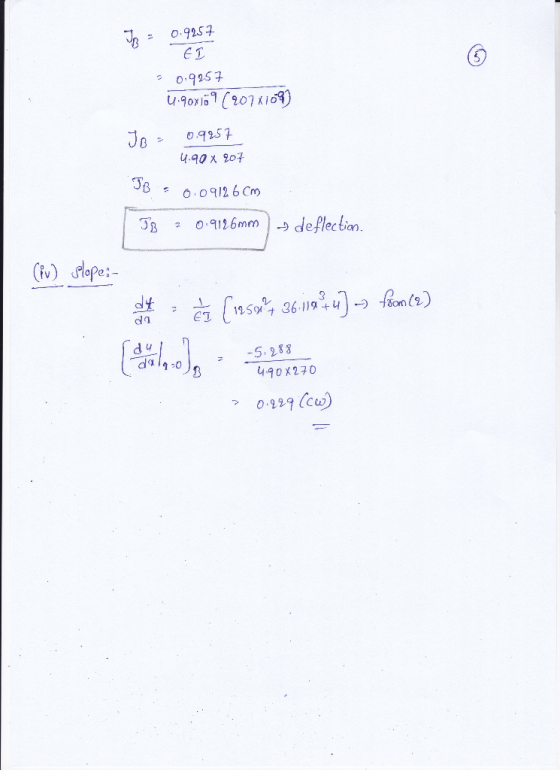

0.92s7 ン 0.93.57 0-12 6mm - de lectin (Fv) Flpe: dn dal 0 5,288 490 x270
