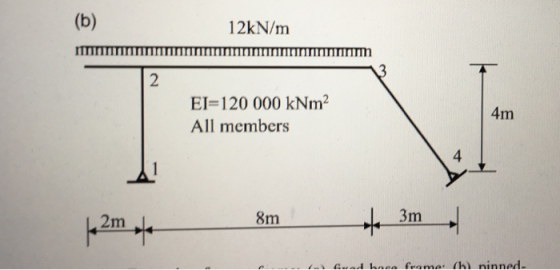

Solve this using the Force method. (b) 12kN/m nim 3 2 EI=120 000 kNm? All members...

Question

Question

Solve this using the Force method.

engineering Civil-Engineering

Answer 1

Similar Homework Help Questions

Using the stiffness method, Calculate the stiffness matrix of the frame and show all displacements and reactions at node #2. Assume that all joints are fixed. Calculate the all bending moments and sho...

Using the stiffness method, Calculate the stiffness matrix of the frame and show all displacements and reactions at node #2. Assume that all joints are fixed. Calculate the all bending moments and show in a diagram. E=200GPa, I=300(106) & A=10(103) 24 kN/m 4m 8m 20 kN 4m 24 kN/m 4m 8m 20 kN 4m
Solve the following frame using Slope Deflection Method, 30 kN/m A B1 Ic D 12 kN/m...

Solve the following frame using Slope Deflection Method, 30 kN/m A B1 Ic D 12 kN/m 3m 12 kN/m + 2m 4m am
1. Determine the force in all members of the truss using the method of joints 2....

1. Determine the force in all members of the truss using the method of joints 2. Determine the force in members DE,DB and AB using the method of sections To begin the analyse linear unknown forces a of the joints in Figure criteria. Therefore, we equations applied to the © = 0 M = 0 - 10 OXF, = 0 OK B 10 kip to 3 ft to 3 ft + 3 ft 3 ft . (a)

x7=12KN , x8=19kN/m, x4=4m, x5=39m, x6=5m, Q2. In the 3-span beam shown in the Figure 2, the...

x7=12KN , x8=19kN/m, x4=4m, x5=39m, x6=5m, Q2. In the 3-span beam shown in the Figure 2, the support at C settles by 15 mm. Using the method of moment distribution method, a) Calculate joint moments (10 marks); b) Draw the bending moment diagram (10 marks); c) Calculate the supports' vertical reactions (10 marks); and d) Draw the shear force diagram (5 marks). Hint: For the calculation of Fixed End Moments, you can use the principle of superposition to add the settlement-related...
Normal force N, shear force V and bending moment M for the frame shown in the...

Normal force N, shear force V and bending moment M for the frame shown in the figure The method of cutting diagrams (using 8 cutting points in the figure and their calculations draw on paper). please help.course name is building static 1. 15 kN/m 20 kNm 5 +6 T 2 m 3m a 20KN 7 B 2 A 8 HA 30 kN tu 3m . 2 4 3
Solve the following using Moment Distribution Method 200 KN 200 KN 21 kN/m 20kw/m A "B...

Solve the following using Moment Distribution Method 200 KN 200 KN 21 kN/m 20kw/m A "B اے D 1at EI ET uit 4m 2.5m a.sm 3 m

(can be solve by slope deflection ) Using displacement method of analysis: (a) Draw bending moment...

(can be solve by slope deflection ) Using displacement method of analysis: (a) Draw bending moment diagram; (b) Draw shear force diagram; (c) Draw axial force diagram; (d) Find nodal displacements and rotations at B and D. P=30 kn H=60 KN B EI DI EI E 1 2EI pin fixed 8m
Please solve all unknowns using slope-deflection method, EI is constant. There is a hinge in the...

Please solve all unknowns using slope-deflection method, EI is constant. There is a hinge in the exact middle of member BC, and I'm not sure how this affects the analysis, and the moments. Please provide a written explanation about how to deal with the hinge. Thank you! solve using slope -deflecton method (EE is const rn HINGE 3 m 5
0 Question 3 a) Using the Force Method, determine the reactions at all supports. In addition to t...

0 Question 3 a) Using the Force Method, determine the reactions at all supports. In addition to the applied loads, support at A rotates 0.005 radian counterclockwise Given E=200GPa and i=150 x 106 mm! 200 x 109 (20 marks) oda rotation 5 kN/m 25 kNm 10 m 6 m By Figure 3 b) If a spring is connected at point C, determine the force in this spring using the force Method By comparing to the solution in Question 3(a), what...

2. (70pt) For the system shown below: w bending moment (M) and shear force diagrams (V) using Moment Distribution (...

2. (70pt) For the system shown below: w bending moment (M) and shear force diagrams (V) using Moment Distribution (Cross) or Slope Deflection Method. 90 kN/m 40 kN 41 80 kN/m 5m 21 2 2m 5m 31 5 8m 4m 4m CH y 12 31 2. (70pt) For the system shown below: w bending moment (M) and shear force diagrams (V) using Moment Distribution (Cross) or Slope Deflection Method. 90 kN/m 40 kN 41 80 kN/m 5m 21 2 2m...
