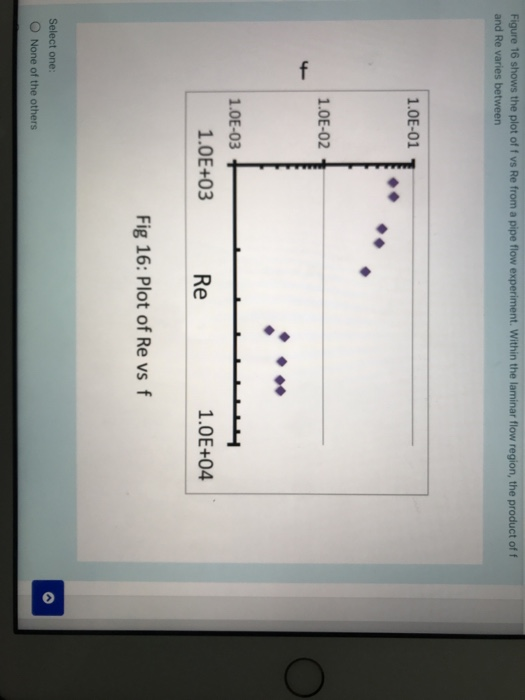

Figure 16 shows the plot off vs Re from a pipe flow experiment. Within the laminar flow region, the product off and Re varies
engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Range of Reynolds number for laminar flow in pipe: Re<2300

On given graph, Reynolds number is from 1000 to 10000.

For laminar region (1000<Re>2300),

  • Re is 1500
  • f is 0.0775

Hence product of Re anf f is 116.25 approximately
