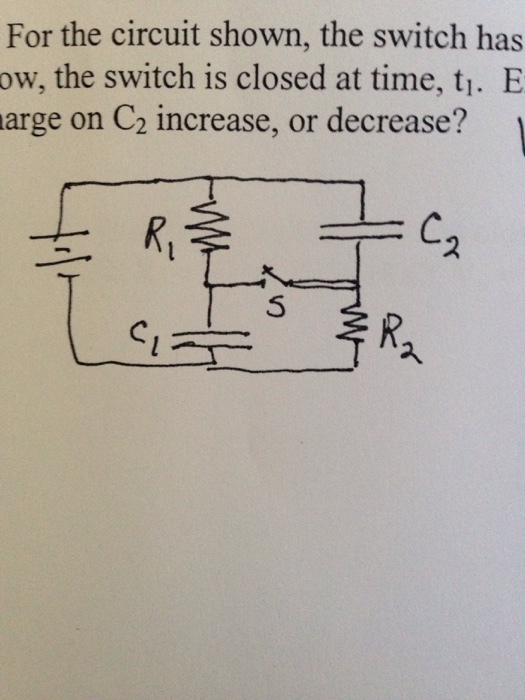

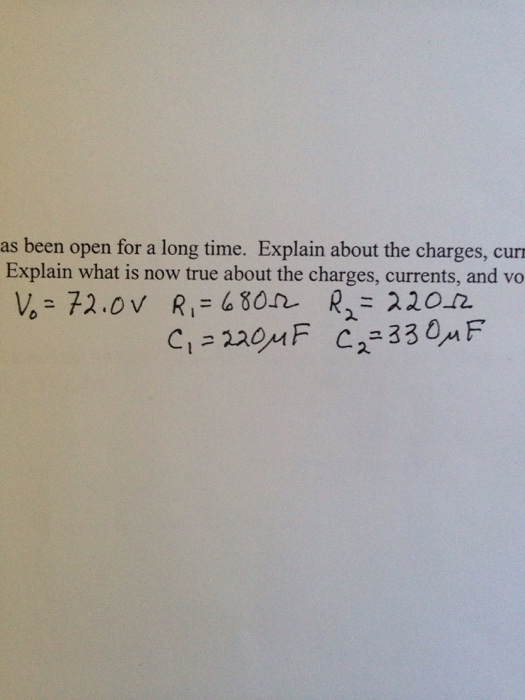

For the circuit shown, the switch has been open for a long time. Explain about charges,...
Homework Answers
after a long time Switch is closed ast S1,
Both Capactors will be at Sereis Combination and Both Resistors
so
Rnet = R1+R2 = 680+220 = 900 ohms
Cnet = C1C2/(C1/+C2)
Cnet = 220* 330/(220+330)
Cnet = 132 uF
so
intial charge Qi = CV = 132e -6 * 72 = 9.5 mC
Current i = V/R = 72/(900) = 0.08 Amps
initial Volatge 72 Volts
--------------------------------------
yes when switch is closed,
growth of charge takes place across the terminals of the Capacitor
so across C2 in increases
Add Answer to:
For
the circuit shown, the switch has been open for a long time.
Explain about charges,...
in the circuit the switch is initially open as shown w 1) In the circuit, the...
in the circuit the switch is initially open as shown
w 1) In the circuit, the switch is initially open as shown. At time 0 , the switch is closed. The values are: R = 100 92, R = 150 2, L=1.00 H, and 8 = 50.0 V. Explain your reasoning clearly in your answers to the following. a) Determine the currents (i, and in through each resistor immediately after the switch is closed. b) Determine each of these currents...
The switch S in the circuit shown below has been open for a long time when,...
The switch S in the circuit shown below has been open for a long time when, at time t = 0, it is closed. The values of the circuit elements are: V = 12 V, R_1 = 110 Ohm, R_2 = 220 Ohm, R_3 = 330 Ohm C_1 = 40 muF and c_2 = 80 muF What is Q_2finai, the charge on C_2 a long time after
Consider the RC circuit in the figure. The switch has been open for a long time...
Consider the RC circuit in the figure. The switch has been open for a long time and is closed at t=0s. The capacitor initially uncharged. (a) Immediately after the switch is closed, what is value of the current through each resistor? (b) After a long time has elapsed and the capacitor is fully charged, what is the value of the current through each resistor and the charge on the capacitor?
Problem 6. The circuit shown below initially has no charge on the capacitors and the switch...
Problem 6. The circuit shown below initially has no charge on
the capacitors and the switch S is originally open.R1= 4Ω,R2=
6Ω,R3= 8Ω,R4= 8Ω,C1= 2μF, and C2= 6μF.
a) Just after closing the switch S, find the currents I1,I2,I3,
and I4.
b) After the switch has been closed a very long time, find the
currents I1,I2,I3, and I4.
c) After the switch S has been closed for a very long time, find
the potential at points A,B, C, and D....
The switch in the figure has been open for a very long time. Theswitch is...
The switch in the figure has been open for a very long time. The
switch is closed at t= 0s.a. At t= 0s, what are the currents in the three resistors?b. After a very long time, what are the currents in the
resistors?
In the circuit shown in (Figure 1) switch Si has been closed a long time while switch S2 has been left open. Then S2 is closed at the same instant when S1 is opened.
In the circuit shown in (Figure 1) switch Si has been closed a long time while switch S2 has been left open. Then S2 is closed at the same instant when S1 is opened.Part A Just after S2 is closed, the current through the resistor is 12.0 A and its rate of decrease is di/dt = 36.0 A/s. How long does it take the current to decrease to Figure 1 of 1 6.00 A, one-half its initial value?
6. (10 points) Consider the circuit shown below. The switch S has been closed for a...
6. (10 points) Consider the circuit shown below. The switch S has been closed for a long time and the current is constant. Use the values: G = 3.00 uF, C2 = 6.00 uF, R1 = 4.00 k12, and R2 = 7.00 k12. The power delivered to R2 is 2.40 W. (a) Find the charge on C. (b) Now the switch S is open. After a long time, by how much has the charge on C changed? GE R R2...
The switch in the circuit below has been open for a long time, It is closed...
The switch in the circuit below has been open for a long time, It is closed at time t=0 Give the value of decor the rate of change of the current at t=0t, 347A 360 = 1F SY
1. In the circuit to the right, the switch has been open for a long time...
1. In the circuit to the right, the switch has been open for a long time before it is closed at time t-0 a) Find an expression for the current in the inductor as a function of time, showing the direction clearly. b) Find an expression for the current supplied by the battery as a function of time. 2R
i need 4e and 5b 4. For the circuit shown, the switch is initially open and...
i
need 4e and 5b
4. For the circuit shown, the switch is initially open and the capacitor has an initial charge of 1 millicoulomb. a. What are the initial voltages on the resistor and capacitor? b. What is the capacitor voltage the instant the switch is 100uF closed? 7ΚΩ. c. What is the time constant, t, of this circuit? d. What is the capacitor voltage 50 milliseconds after the switch is closed? e. What is the capacitor's current 50...
in the circuit the switch is initially open as shown
w 1) In the circuit, the switch is initially open as shown. At time 0 , the switch is closed. The values are: R = 100 92, R = 150 2, L=1.00 H, and 8 = 50.0 V. Explain your reasoning clearly in your answers to the following. a) Determine the currents (i, and in through each resistor immediately after the switch is closed. b) Determine each of these currents...
The switch S in the circuit shown below has been open for a long time when, at time t = 0, it is closed. The values of the circuit elements are: V = 12 V, R_1 = 110 Ohm, R_2 = 220 Ohm, R_3 = 330 Ohm C_1 = 40 muF and c_2 = 80 muF What is Q_2finai, the charge on C_2 a long time after
Consider the RC circuit in the figure. The switch has been open for a long time and is closed at t=0s. The capacitor initially uncharged. (a) Immediately after the switch is closed, what is value of the current through each resistor? (b) After a long time has elapsed and the capacitor is fully charged, what is the value of the current through each resistor and the charge on the capacitor?
Problem 6. The circuit shown below initially has no charge on
the capacitors and the switch S is originally open.R1= 4Ω,R2=
6Ω,R3= 8Ω,R4= 8Ω,C1= 2μF, and C2= 6μF.
a) Just after closing the switch S, find the currents I1,I2,I3,
and I4.
b) After the switch has been closed a very long time, find the
currents I1,I2,I3, and I4.
c) After the switch S has been closed for a very long time, find
the potential at points A,B, C, and D....
The switch in the figure has been open for a very long time. The
switch is closed at t= 0s.a. At t= 0s, what are the currents in the three resistors?b. After a very long time, what are the currents in the
resistors?
6. (10 points) Consider the circuit shown below. The switch S has been closed for a long time and the current is constant. Use the values: G = 3.00 uF, C2 = 6.00 uF, R1 = 4.00 k12, and R2 = 7.00 k12. The power delivered to R2 is 2.40 W. (a) Find the charge on C. (b) Now the switch S is open. After a long time, by how much has the charge on C changed? GE R R2...
The switch in the circuit below has been open for a long time, It is closed at time t=0 Give the value of decor the rate of change of the current at t=0t, 347A 360 = 1F SY
1. In the circuit to the right, the switch has been open for a long time before it is closed at time t-0 a) Find an expression for the current in the inductor as a function of time, showing the direction clearly. b) Find an expression for the current supplied by the battery as a function of time. 2R
i
need 4e and 5b
4. For the circuit shown, the switch is initially open and the capacitor has an initial charge of 1 millicoulomb. a. What are the initial voltages on the resistor and capacitor? b. What is the capacitor voltage the instant the switch is 100uF closed? 7ΚΩ. c. What is the time constant, t, of this circuit? d. What is the capacitor voltage 50 milliseconds after the switch is closed? e. What is the capacitor's current 50...
