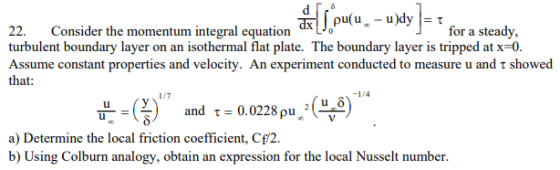

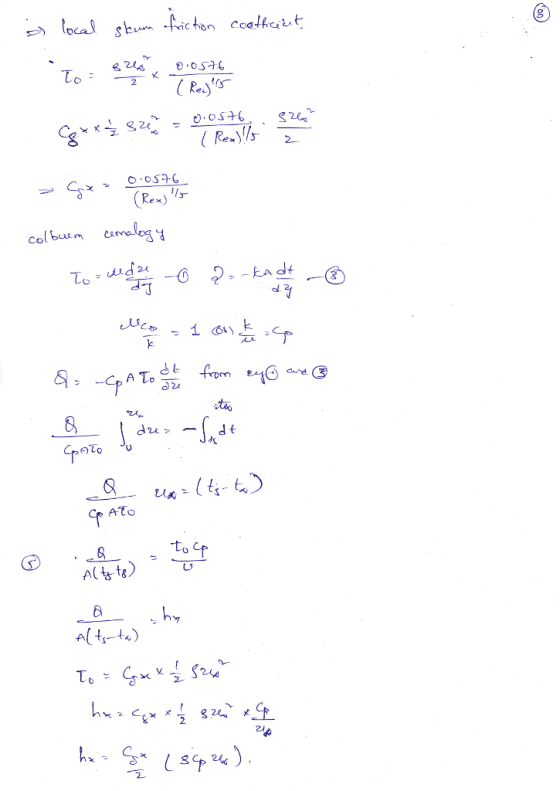

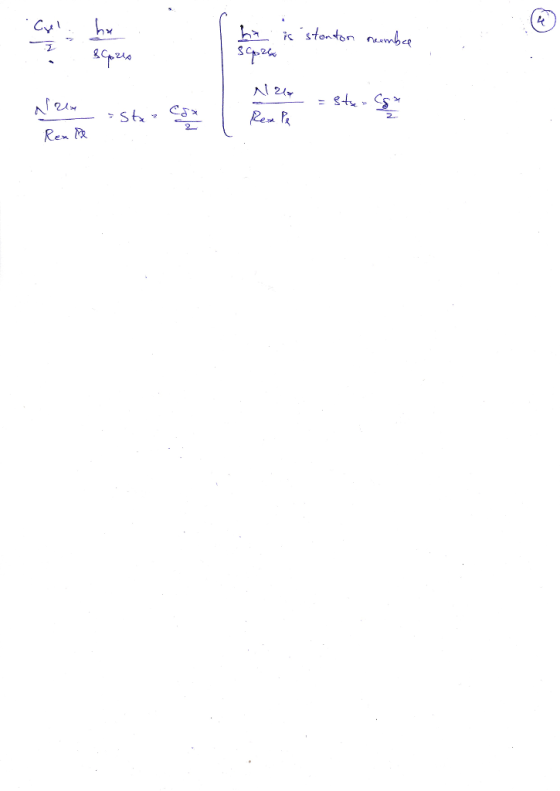

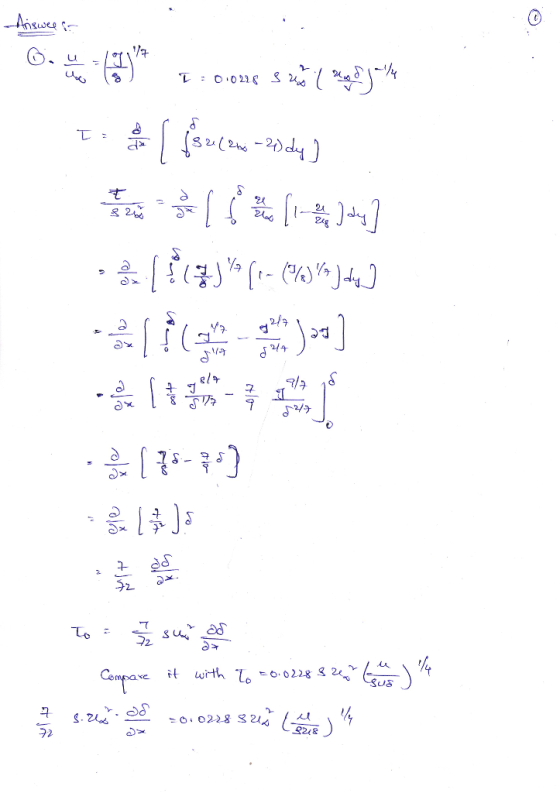

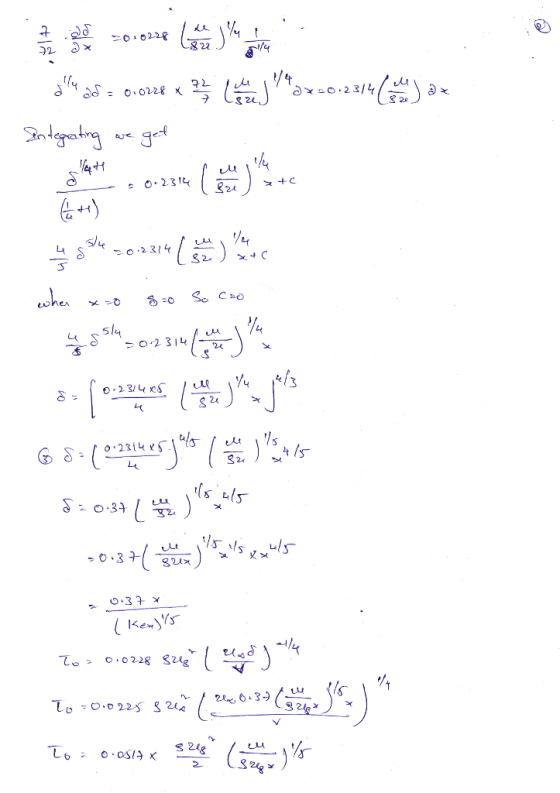

22. Consider the momentum integral equation turbulent boundary layer on an isothermal flat plate. The boundary...
The velocity profile for a turbulent boundary layer over a flat plate is to be approximated...
The velocity profile for a turbulent boundary layer over a flat plate is to be approximated by the expression и an"* +b7072 where n=y/8 U a) (10P) Evaluate the coefficients a and b b) (20P) Obtain an expression for 8/x c) (5P) Obtain an expression for shear stress coefficient Cf. d) (5P) Draw velocity profile precisely.
Use the integral method for boundary layer flow and convective heat transfer over a flat plate he...
Use the integral method for boundary layer flow and convective heat transfer over a flat plate heated by maintaining a constant heat flux q"w, for the case of very low Prandtl number, Pr0. Assume that the free stream velocity of the fluid, U, and free stream temperature, T-do not vary with x. Using the integral form of energy equation, show that under these conditions: (a) the temperature profile, (T- T) is given by, 41 2 CT-T oa (b) the wall...
Question 4. The local friction coefficient for a fully turbulent boundary layer over a flat plate...
Question 4. The local friction coefficient for a fully turbulent boundary layer over a flat plate in parallel flow is empirically found to be: Show that the drag coefficient based on the total vis- cous drag for the whole length of the plate L wl be given by: 1/5 CD-0.0742 Rel. where L is the length of the plate measured in the direction of the fluid flow.
Write the simplified conservation of momentum equation for boundary layer on a flat plate and explain...
Write the simplified conservation of momentum equation for boundary layer on a flat plate and explain the physical meaning of each term in the equation.
As shown in Fig. 1, the local velocity profile on a flat plate boundary layer is...
As shown in Fig. 1, the local velocity profile on a flat plate boundary layer is uz(x, y)/V = an+bn', where 7 = y/8(x) is a non-dimensional vertical coordinate, 8(x) is the boundary-layer 00 thickness, x is the streamwise coordinate, y is the coordinate normal to the wall, and V is the freestream velocity. (a) Calculate the local skin friction drag using the following momentum integral formula (Hint: x and 8(x) are treated as constants in the integral) (15 points)...
Consider laminar flow of an incompressible fluid past a flat plate. The boundary layer velocity profile...
Consider laminar flow of an incompressible fluid past a flat plate. The boundary layer velocity profile is given as u = U sin () a. Determine the boundary layer thicknesses 8, 8, as a function of x. Express in terms of Reynolds number. b. Using momentum integral theory, determine the wall shear stress tw, as a func. of x. Express in terms of Reynolds number. C. Determine the friction drag coefficient, Cof-
100 V[knot] 20 25 1.12 × 10-6 nt 0.375 Turbulent Re0.2 5.835 Boundary Layer 「Laminar Reo.5 flat plate 0,01 Blasius...
100 V[knot] 20 25 1.12 × 10-6 nt 0.375 Turbulent Re0.2 5.835 Boundary Layer 「Laminar Reo.5 flat plate 0,01 Blasius (laminaan 母 Hughes (turbulens CF 0,001 IES IE6 E8 IE7 1E4 1E9 ReUx Compare the frictional coefficient values for ship and model scale, read from the figure b.
100 V[knot] 20 25 1.12 × 10-6 nt 0.375 Turbulent Re0.2 5.835 Boundary Layer 「Laminar Reo.5 flat plate 0,01 Blasius (laminaan 母 Hughes (turbulens CF 0,001 IES IE6 E8 IE7 1E4 1E9...
JESTION 3 [15 MARKS nsider a flow along a flat plate with a boundary layer profile...
JESTION 3 [15 MARKS nsider a flow along a flat plate with a boundary layer profile given by: u 3 y ang Von-Karman momentum integral equation method, determine the value of: i. boundary layer momentum thickness, 0/8 ii. boundary layer thickness, 8x iii. boundary layer displacement thickness. 8*x (15
3). Standard air flows over a flat plate as shown. Laminar Find: boundary layer forms on...
3). Standard air flows over a flat plate as shown. Laminar Find: boundary layer forms on the surface. Assume the boundary (a). Wall shear stress, Fj)! layer bas a cubic velocity profile: (b). Boundary layer thickness, x)! (c). Shape factor (H-8t/0) Momentum integral equation on a flat plate is ax) Ud(u/U) Ху 1m The displacement thickncss and the momentum thickness are Freestream velocity is 1.0 m/s. The fluid viscosity and density are 1.55 x 10 m'ls and 1.23 kg/m, respectively...
(Re_x)_cr=5(10^5) au ar +0 ay au dy? Revie ди ar + =0 ду Water flows past...
(Re_x)_cr=5(10^5)
au ar +0 ay au dy? Revie ди ar + =0 ду Water flows past a flat plate of length L = 15 cm at U = 2 m/s. What is the disturbance thickness of the boundary layer at = 10 cm from the front of the plate? The properties of water are pw = 1000 kg/m” and Vw = 1x10-6 m/s Express your answer in mm to three significant figures. View Available Hint(s) 8 = 1.12 mm Submit...
The velocity profile for a turbulent boundary layer over a flat plate is to be approximated by the expression и an"* +b7072 where n=y/8 U a) (10P) Evaluate the coefficients a and b b) (20P) Obtain an expression for 8/x c) (5P) Obtain an expression for shear stress coefficient Cf. d) (5P) Draw velocity profile precisely.
Use the integral method for boundary layer flow and convective heat transfer over a flat plate heated by maintaining a constant heat flux q"w, for the case of very low Prandtl number, Pr0. Assume that the free stream velocity of the fluid, U, and free stream temperature, T-do not vary with x. Using the integral form of energy equation, show that under these conditions: (a) the temperature profile, (T- T) is given by, 41 2 CT-T oa (b) the wall...
Question 4. The local friction coefficient for a fully turbulent boundary layer over a flat plate in parallel flow is empirically found to be: Show that the drag coefficient based on the total vis- cous drag for the whole length of the plate L wl be given by: 1/5 CD-0.0742 Rel. where L is the length of the plate measured in the direction of the fluid flow.
Write the simplified conservation of momentum equation for boundary layer on a flat plate and explain the physical meaning of each term in the equation.
As shown in Fig. 1, the local velocity profile on a flat plate boundary layer is uz(x, y)/V = an+bn', where 7 = y/8(x) is a non-dimensional vertical coordinate, 8(x) is the boundary-layer 00 thickness, x is the streamwise coordinate, y is the coordinate normal to the wall, and V is the freestream velocity. (a) Calculate the local skin friction drag using the following momentum integral formula (Hint: x and 8(x) are treated as constants in the integral) (15 points)...
Consider laminar flow of an incompressible fluid past a flat plate. The boundary layer velocity profile is given as u = U sin () a. Determine the boundary layer thicknesses 8, 8, as a function of x. Express in terms of Reynolds number. b. Using momentum integral theory, determine the wall shear stress tw, as a func. of x. Express in terms of Reynolds number. C. Determine the friction drag coefficient, Cof-
100 V[knot] 20 25 1.12 × 10-6 nt 0.375 Turbulent Re0.2 5.835 Boundary Layer 「Laminar Reo.5 flat plate 0,01 Blasius (laminaan 母 Hughes (turbulens CF 0,001 IES IE6 E8 IE7 1E4 1E9 ReUx Compare the frictional coefficient values for ship and model scale, read from the figure b.
100 V[knot] 20 25 1.12 × 10-6 nt 0.375 Turbulent Re0.2 5.835 Boundary Layer 「Laminar Reo.5 flat plate 0,01 Blasius (laminaan 母 Hughes (turbulens CF 0,001 IES IE6 E8 IE7 1E4 1E9...
JESTION 3 [15 MARKS nsider a flow along a flat plate with a boundary layer profile given by: u 3 y ang Von-Karman momentum integral equation method, determine the value of: i. boundary layer momentum thickness, 0/8 ii. boundary layer thickness, 8x iii. boundary layer displacement thickness. 8*x (15
3). Standard air flows over a flat plate as shown. Laminar Find: boundary layer forms on the surface. Assume the boundary (a). Wall shear stress, Fj)! layer bas a cubic velocity profile: (b). Boundary layer thickness, x)! (c). Shape factor (H-8t/0) Momentum integral equation on a flat plate is ax) Ud(u/U) Ху 1m The displacement thickncss and the momentum thickness are Freestream velocity is 1.0 m/s. The fluid viscosity and density are 1.55 x 10 m'ls and 1.23 kg/m, respectively...
(Re_x)_cr=5(10^5)
au ar +0 ay au dy? Revie ди ar + =0 ду Water flows past a flat plate of length L = 15 cm at U = 2 m/s. What is the disturbance thickness of the boundary layer at = 10 cm from the front of the plate? The properties of water are pw = 1000 kg/m” and Vw = 1x10-6 m/s Express your answer in mm to three significant figures. View Available Hint(s) 8 = 1.12 mm Submit...
