Elasticity and fluids A circular cross section tube of diameter 1.2 m is carrying water (assume...
Elasticity and fluids

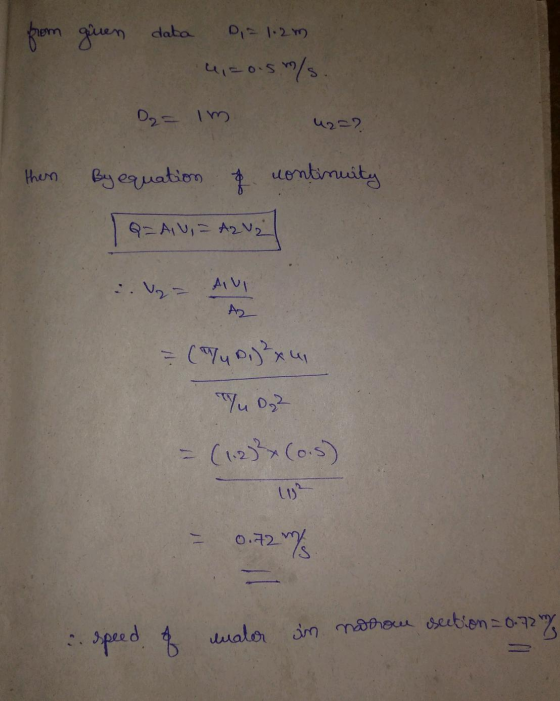

A circular cross section tube of diameter 1.2 m is carrying water (assume the water is incompressible) from a dam to a town. The speed of the water in the tube is 0.500 ms-1. The diameter of the tube then narrows from 1.2m to 1.0m. Find the speed of the water in the narrow section.
Homework Answers
Add Answer to:
Elasticity and fluids
A circular cross section tube of diameter 1.2 m is carrying
water (assume...
