(30points)Atimber H-shaped short column consistsof three 20 X 100mm planks which are fastenedtogetherto form an 100mm...

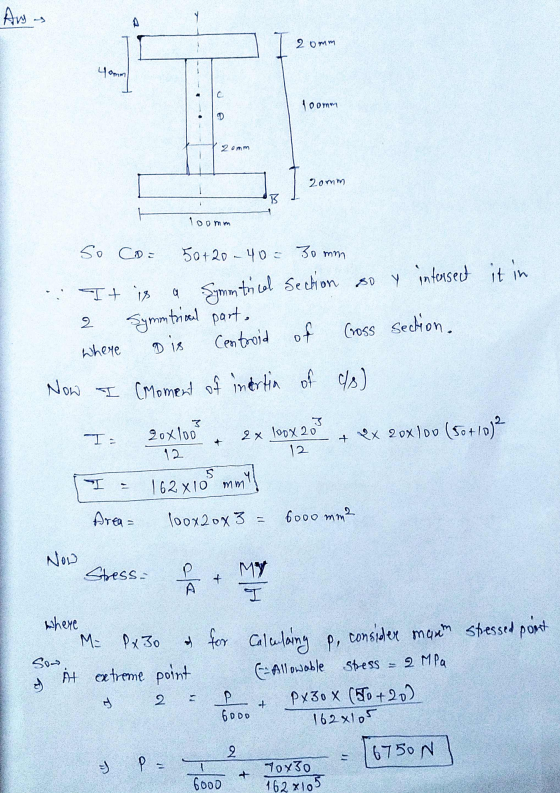

(30points)Atimber H-shaped short column consistsof three 20 X 100mm planks which are fastenedtogetherto form an 100mm wide, 140mm depth cross section as shown inthefigure. If a vertical compressive load P is applied at point C located on the axis of symmetry of the cross section of short column, and pointC is 40mm from point A on the cross section.. Knowingthat the allowable stress(either in tensile or compressive stress)is 2.0Mpa.
Homework Answers
Add Answer to:
