Homework Answers
Solution:
Answer: The force in cable EB as Cartesian Vector is approximately equal to ( -444.4i - 333.3j + 222.2k ) .

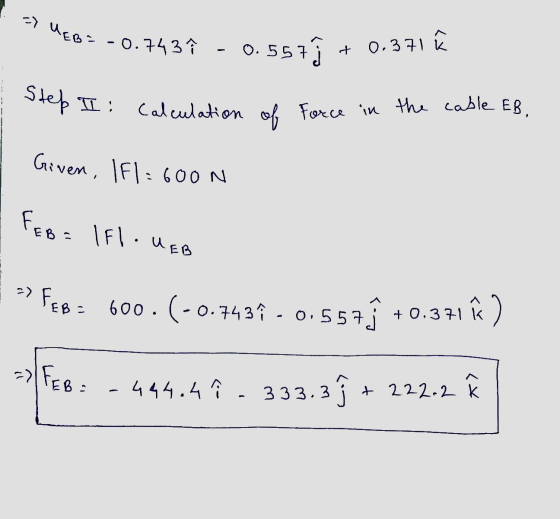

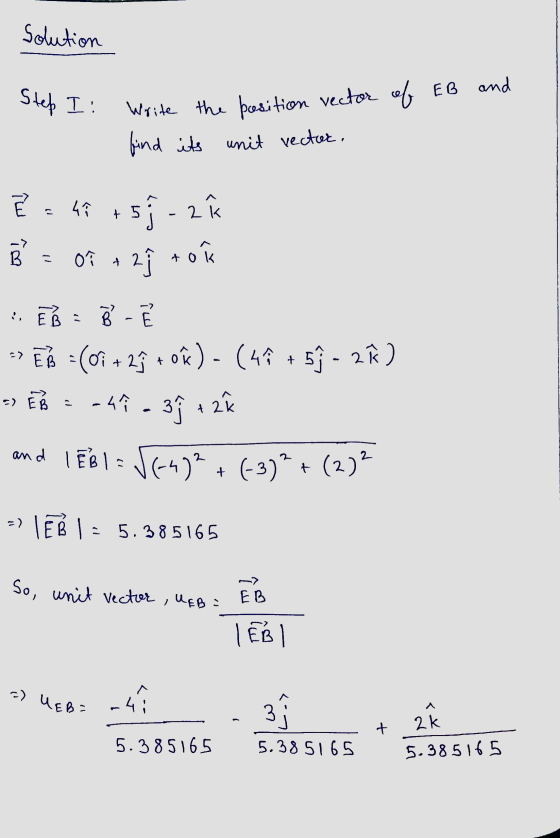

Detailed solution is provided in the images below.
Please go through it and if you have any questions, feel free to ask.
Add Answer to:
Question 10 1 point AF = 600 N The cable connected between E and B with...
-0.2 m I=2 kgm? B-10 kg K=600 N/m 200 50 kg FIG. Q 9.18 A 50...
-0.2 m I=2 kgm? B-10 kg K=600 N/m 200 50 kg FIG. Q 9.18 A 50 kg mass, A, is connected to a 10 kg mass, B, by a non-flexible cable passing over a drum with moment of inertia I= 2 kgm. Mass B resting on a 20°– incline is also connected to a coil spring with K=600 N/m. At the instant shown the spring is un-stretched. If mass A is released from rest, compute the velocity of mass A,...
show steps Force Vector Directed along a Line Learning Goal: To find a force's directional components...
show steps
Force Vector Directed along a Line Learning Goal: To find a force's directional components that act along a cable and to find the coordinates of a point on a cable that has a force vector applied to it. Three-dimensional Cartesian force vectors and used throughout engineering mechanics. The generic force vector is represented as follows: F = Fzi + Fyj + Fzk where F is the force vector and Fx, Fy, and Fz are the vector's I, j,...
750 N 1) What is the angle between r, and the 750 N force that you...
750 N 1) What is the angle between r, and the 750 N force that you would use if you were to calculate the moment that the force creates about point C? (You do not need to actually calculate the moment.) 200 mm - 100 mm 2) Bar AB is inclined at 50 from the vertical. A 100-N force is applied to the bar at end B. Determine the magnitude and direction of the moment this force creates at a...
Solve all parts thanks <Extra Credit 2 Force Vector Directed along a Line Three-dimensional Cartesian force...
Solve all parts
thanks
<Extra Credit 2 Force Vector Directed along a Line Three-dimensional Cartesian force vectors are used throughout engineering mechanics. The generic force vector is represented as follows: F= F,i+Fyj + F kwhere F is the force vector and Fr, Fy, and F, are the vector's i, j, and k components, respectively. The force vector has a magnitude F F2 +F3 + F2. The vector's I 1 Figure < 1 of 2 > C 13/12 5 F =...
part B orce Vector Directed along a Line 24 cf 51 Part A Learning Goal: To find a foroe's directional co...
part B
orce Vector Directed along a Line 24 cf 51 Part A Learning Goal: To find a foroe's directional components that act along a cable and to find the coordinates of a point on a cable that has a force vector applied to t As shown, a force vector F with a magritude of ca 430 lb is appied at point A and is directed toward point C. (Flqure 1) The distance a is 7.50 ft and the distance...
Position Vectors Part A-F Learning Goal: To find a position vector between two arbitrary points As...
Position Vectors Part A-F Learning Goal: To find a position vector between two arbitrary points As shown, two cables connect three points. C is below A by a distance C. -2.30 ft and connected to A bya cable 6.94 ft long Cable AC forms an angle #- 33.0 Using the d Express yo > View Ava with the positive y axis. B is 9.30 ft above C and the distances B, and By are 9.10 ft and 5.30 ft. respectively...
Part A Enter coordinates of point A Figure 1 of 1 Enter coordinates separated by comma:...
Part A Enter coordinates of point A Figure 1 of 1 Enter coordinates separated by comma: ΡΟ ΑΣΦ | 11 vec ? mm. F-400N 6 m Submit Previous Answers Request Answer * Incorrect; Try Again: 2 attempts remaining 5 m Part B Enter coordinates of point B Enter coordinates separated by comma: Figure 1 of 1 190 AED 11 vec h ? A mm F400N Submit Request Answer Part position vector from A to B Part position vector from A...
Question 13 (1 point) For the following chemical equation/reaction, butyrate is functioning as: H2O sich OH...
Question 13 (1 point) For the following chemical equation/reaction, butyrate is functioning as: H2O sich OH ТОН butyrate O conjugate acid O acid conjugate base base atv A MacBook Air 80 FT DA Fa 3 $ 4 5 & 7 6 8 9 E R T Y U I 0 D F G H J K L C < V B N M.
Could you please answer as much as you can? THANK YOU MacBook Ain Exam 1 May 27, 2016 Physics 255-University Physics I A) 3.40x103J B) -3.40x103J C) 0 J D) 6.80x103 J 4 29) Torque: A solid dot shown...
Could you please answer as much as you can? THANK YOU
MacBook Ain Exam 1 May 27, 2016 Physics 255-University Physics I A) 3.40x103J B) -3.40x103J C) 0 J D) 6.80x103 J 4 29) Torque: A solid dot shown in Figure below is a pivot point. The 1-meter long board can rotate about the pivot. Calculate magnitude of the torque of the force F (F-10 N) applied in the middle of the board as shown in Figure below. 300 A)...
Given F=8.80 i −10.5 j +22.8 kN, find the component of F that acts perpendicular to...
Given F=8.80 i −10.5 j +22.8 kN, find the component of F that
acts perpendicular to member DA such that the vector addition of
the perpendicular and parallel components of F (F=F⊥+F∥) with
respect to DA equals F. Express your answer in component
form.
Express your answers, separated by commas, to three significant
figures.
A three-legged structure is shown below. It is attached to the ground at points B (3.33, 0, 0) and C (-3.33, 0, 0) and connected to...
-0.2 m I=2 kgm? B-10 kg K=600 N/m 200 50 kg FIG. Q 9.18 A 50 kg mass, A, is connected to a 10 kg mass, B, by a non-flexible cable passing over a drum with moment of inertia I= 2 kgm. Mass B resting on a 20°– incline is also connected to a coil spring with K=600 N/m. At the instant shown the spring is un-stretched. If mass A is released from rest, compute the velocity of mass A,...
show steps
Force Vector Directed along a Line Learning Goal: To find a force's directional components that act along a cable and to find the coordinates of a point on a cable that has a force vector applied to it. Three-dimensional Cartesian force vectors and used throughout engineering mechanics. The generic force vector is represented as follows: F = Fzi + Fyj + Fzk where F is the force vector and Fx, Fy, and Fz are the vector's I, j,...
750 N 1) What is the angle between r, and the 750 N force that you would use if you were to calculate the moment that the force creates about point C? (You do not need to actually calculate the moment.) 200 mm - 100 mm 2) Bar AB is inclined at 50 from the vertical. A 100-N force is applied to the bar at end B. Determine the magnitude and direction of the moment this force creates at a...
Solve all parts
thanks
<Extra Credit 2 Force Vector Directed along a Line Three-dimensional Cartesian force vectors are used throughout engineering mechanics. The generic force vector is represented as follows: F= F,i+Fyj + F kwhere F is the force vector and Fr, Fy, and F, are the vector's i, j, and k components, respectively. The force vector has a magnitude F F2 +F3 + F2. The vector's I 1 Figure < 1 of 2 > C 13/12 5 F =...
part B
orce Vector Directed along a Line 24 cf 51 Part A Learning Goal: To find a foroe's directional components that act along a cable and to find the coordinates of a point on a cable that has a force vector applied to t As shown, a force vector F with a magritude of ca 430 lb is appied at point A and is directed toward point C. (Flqure 1) The distance a is 7.50 ft and the distance...
Position Vectors Part A-F Learning Goal: To find a position vector between two arbitrary points As shown, two cables connect three points. C is below A by a distance C. -2.30 ft and connected to A bya cable 6.94 ft long Cable AC forms an angle #- 33.0 Using the d Express yo > View Ava with the positive y axis. B is 9.30 ft above C and the distances B, and By are 9.10 ft and 5.30 ft. respectively...
Part A Enter coordinates of point A Figure 1 of 1 Enter coordinates separated by comma: ΡΟ ΑΣΦ | 11 vec ? mm. F-400N 6 m Submit Previous Answers Request Answer * Incorrect; Try Again: 2 attempts remaining 5 m Part B Enter coordinates of point B Enter coordinates separated by comma: Figure 1 of 1 190 AED 11 vec h ? A mm F400N Submit Request Answer Part position vector from A to B Part position vector from A...
Question 13 (1 point) For the following chemical equation/reaction, butyrate is functioning as: H2O sich OH ТОН butyrate O conjugate acid O acid conjugate base base atv A MacBook Air 80 FT DA Fa 3 $ 4 5 & 7 6 8 9 E R T Y U I 0 D F G H J K L C < V B N M.
Could you please answer as much as you can? THANK YOU
MacBook Ain Exam 1 May 27, 2016 Physics 255-University Physics I A) 3.40x103J B) -3.40x103J C) 0 J D) 6.80x103 J 4 29) Torque: A solid dot shown in Figure below is a pivot point. The 1-meter long board can rotate about the pivot. Calculate magnitude of the torque of the force F (F-10 N) applied in the middle of the board as shown in Figure below. 300 A)...
Given F=8.80 i −10.5 j +22.8 kN, find the component of F that
acts perpendicular to member DA such that the vector addition of
the perpendicular and parallel components of F (F=F⊥+F∥) with
respect to DA equals F. Express your answer in component
form.
Express your answers, separated by commas, to three significant
figures.
A three-legged structure is shown below. It is attached to the ground at points B (3.33, 0, 0) and C (-3.33, 0, 0) and connected to...
