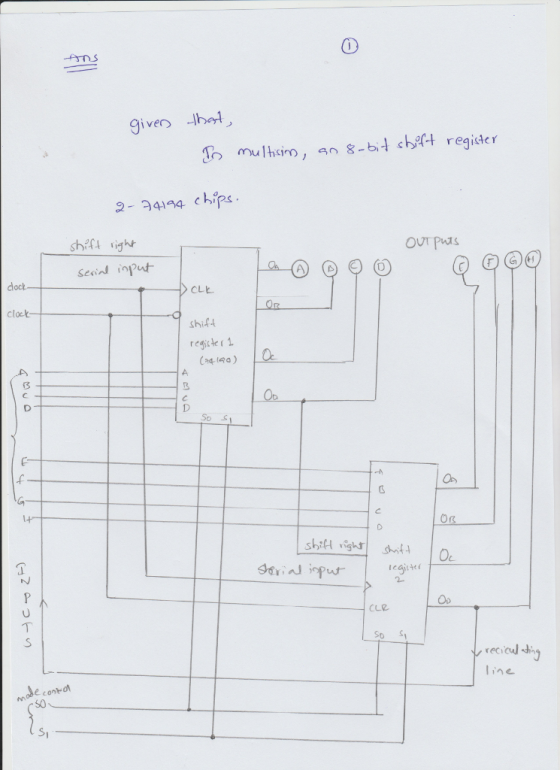

In Multisim, build an 8-bit shift register using 2 – 74194 chips.
Using an 8 bit half adder and 8 bit register, build a circuit that implements A leftarrow A + 1 which is INC A.
Computer archetecture. Build an 8-bit SIPO (serial-in, parallel-out) shift register in diagram, need to have D flip-flop. The goal is to use a button , led light, and SIPO register to make an interactive light show.
VHDL
Using D-flip-flops, generate an 8-bit LFSR (Linear Feedbaclk Shift-Register). For every bit, include a Binary Control (BC) value that can turn the contribution of the flip-flop output to the XOR input on or off (1 for ON, 0 for OFF). For the 8-bit LFSR include a 7-bit ge- neric BIT_VECTOR that can configure contribution of LFSR flip-flops to the LFSR feedback. The right-most flip-flop output has no XOR, and the left-most flip-flop input is fed by the feedback line...
Goal You'll design and build a multifunction register. The register needs to meet the following requirements: 1) The register holds a 4-bit number named Q. 2) The register has a 2-bit control input, C, that selects the function that the register will perform on the next rising clock edge 3) The register has a 4-bit data input named B. ) One of the four functions that your register needs to be able to perform is to load B into the...
6. An 8-bit shift register has the binary equivalent of the decimal number 46 stored in it What are the base-10 equivalent contents of the register after the following operations have been performed? For each case, assume the same initial state given. [15pts] (a) SHR 1 (b) SHL 1 (c) SHR 2 (d) ROR 2
6. An 8-bit shift register has the binary equivalent of the decimal number 46 stored in it What are the base-10 equivalent contents of the...
Shift Register: Design a 4-bit shift register for the following function table. Inputs are D3D2D1D0 for parallel data load, S1S0 are the mode control, and the clock. Outputs are the register bits Q3Q2Q1Q0. Show the complete logic diagram.
b. (i) Draw the circuit diagram of a 4-bit shift register using D-flip-flop. (2 marks) (ii) Supposing the 4-bit data 1011 is to be transfer in a 4-stage shift register using D-flip- flop, right-out the corresponding output of each of the flip-flop after the 6th clock pulses. (4 marks) c. Design a synchronous counter that go through the state 3, 4, 5, 7,8, 9, 10 . (13 marks)
7) Consider an 8-bit shift register, with initial condition 1001110, which is shifted right six times, while the shift-in data is the following sequence: 0-1-1- 0- 0-0-I Show the sequence of output bits, and give the final state
7) Consider an 8-bit shift register, with initial condition 1001110, which is shifted right six times, while the shift-in data is the following sequence: 0-1-1- 0- 0-0-I Show the sequence of output bits, and give the final state
5) The content of a 4-bit shift register is initially 1101. The register is shifted six times to the right, with the serial input being 101101. What are the contents of the register after each shift?
Using D FFs and selectors, design a 4-bit shift register (SR) (with only serial inputs) that can shift its content one or two bits to the left or right.
