Question

Implement an AVL tree stored in a random access file

Each node contains an integer key, one or more fixed length character strings, a left child reference, a right child reference and a height

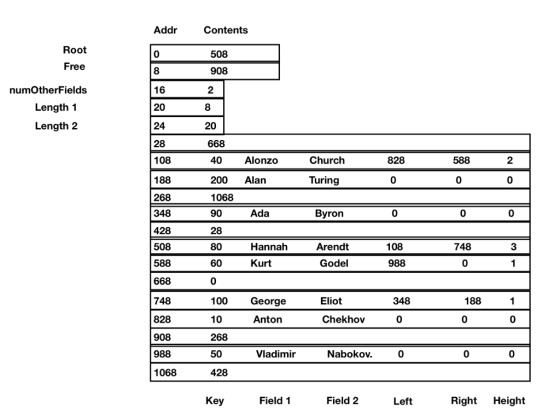

The format of the file is shown on the next slide

The methods you must implement are shown on the followingslides.

Duplicate keys cannot be entered in the tree

Your implementation MUST NOT load the whole tree in memory. Each operation only makes copies of the nodes it needs for that operation. Modified nodes must be written back to the file.

Addr Contents Root Free numOtherFields 508 908 16 20 24 28 108 188 268 348 428 508 588 668 748 828 908 988 1068 Length 1 Length 2 20 668 40Alonzo 200 Alan 1068 90 28 80 60 0 100 George 10 268 50 428 Church 828 Turing 0 0 Ada Byron Hannah Arendt 108 748 3 Kurt Godel 988 0 Eliot 348 188 Anton Chekhov 0 0 Vladimir Nabokov. 0 0 0 Key Field 1 Field 2 Left Right Height

public class AVLTree {

   /*

   * Implements a ALV tree of ints (the keys) and fixed length character strings

   * fields stored in a random access file. Duplicates keys are not allowed. There

   * will be at least 1 character string field

   */

   private RandomAccessFile f;

   private long root; // the address of the root node in the file

   private long free; // the address in the file of the first node in the free list

   private int numFields; // the number of fixed length character fields

   private int fieldLengths[]; // the length of each field

   private class Node {

       private char fields[][];

       private long left;

       private long right;

       private Node(long l, int d, long r, char fields[][]) {

           // constructor for a new node

       }

       private Node(long addr) throws IOException {

           // constructor for a node that exists and is stored in the file

       }

       private void writeNode(long addr) throws IOException {

           // writes the node to the file at location addr

       }

   }

   public AVLTree(String fname, int fieldLengths[]) throws IOException {

       // creates a new empty AVL tree stored in the file fname

       // the number of character string fields is fieldLengths.length

       // fieldLengths contains the length of each field

   }

   public AVLTree(String fname) throws IOException {

       // reuse an existing tree store in the file fname

   }

   public void insert(int k, char fields[][]) throws IOException {

       // PRE: the number and lengths of the fields matches the expected number and

       // lengths

       // insert k and the fields into the tree

       // if k is in the tree do nothing

   }

   public void print() throws IOException {

       // Print the contents of the nodes in the tree is ascending order of the key

   }

   public LinkedList find(int k) throws IOException {

       // otherwise return null

       // if k is in the tree return a linked list of the fields associated with k

       // The strings in ths list must NOT include the padding (i.e the null chars)

       return null;

   }

   public void remove(int k) throws IOException {

       // if k is in the tree removed the node with key k from the tree

       // otherwise do nothing

   }

   public void close() throws IOException {

       // update root and free in the file (if necessary)

       // close the random access file

   }

}

Answer 1

Please let me know if you have any doubts or you want me to modify the answer. And if you find this answer useful then don't forget to rate my answer as thumps up. Thank you! :)

import java.io.*;
import java.util.*;

public class AVLTree {
    private RandomAccessFile f;
    private long root;
    private long free;
    private int numFields;
    private int fieldLengths[];

    private class Node {
        private int key;
        private char fields[][];
        private long left;
        private long right;
        private int height;

        private Node(long l, int d, long r, char fields2[][]) {
            left = l;
            key = d;
            right = r;
            fields = fields2;
            height = 0;
        }

        private Node(long addr) throws IOException {
            f.seek(addr);
            key = f.readInt();
            fields = new char[numFields][];
            int temp = 0;
            for (int i = 0; i < numFields; i++) {
                for (int j = 0; j < fieldLengths[i]; j++) {
                    temp++;
                }
                fields[i] = new char[temp];
                temp = 0;
            }
            for (int i = 0; i < numFields; i++) {
                for (int j = 0; j < fieldLengths[i]; j++) {
                    fields[i][j] = f.readChar();
                }
            }
            left = f.readLong();
            right = f.readLong();
            height = f.readInt();
        }

        private void writeNode(long addr) throws IOException {
            f.seek(addr);
            f.writeInt(key);
            for (int i = 0; i < numFields; i++) {
                for (int j = 0; j < fieldLengths[i]; j++) {
                    if (fields[i][j] != '\0') {
                        f.writeChar(fields[i][j]);
                    }
                    else {
                        f.writeChar('\0');
                    }
                }
            }
            f.writeLong(left);
            f.writeLong(right);
            f.writeInt(height);
        }
    }

    public AVLTree(String fname, int fieldLengths2[]) throws IOException {
        //creates a new empty AVL tree stored in the file fname
        //the number of character string fields is fieldLengths.length
        //fieldLengths contains the length of each field
        File file = new File(fname);
        if (file.exists()) {
            file.delete();
        }
        f = new RandomAccessFile(file, "rw");
        fieldLengths = fieldLengths2;
        numFields = fieldLengths.length;
        root = 0;
        free = 0;
        f.seek(0);
        f.writeLong(root);
        f.writeLong(free);
        f.writeInt(numFields);
        for (int i : fieldLengths) {
            f.writeInt(i);
        }
    }

    public AVLTree(String fname) throws IOException {
        //reuse an existing tree store in the file fname
        File file = new File(fname);
        f = new RandomAccessFile(file, "rw");
        f.seek(0);
        root = f.readLong();
        free = f.readLong();
        f.seek(16);
        numFields = f.readInt();
        fieldLengths = new int[numFields];
        for (int i = 0; i < numFields; i++) {
            fieldLengths[i] = f.readInt();
        }
    }

    public void insert(int k, char fields[][]) throws IOException {
        root = insert(root, k, fields);
    }

    @SuppressWarnings("Duplicates")
    private long insert(long r, int k, char fields[][]) throws IOException {
        Node x;
        if (r == 0) {
            x = new Node(0, k, 0, fields);
            long addr = getFree();
            removeFromFree(addr);
            x.writeNode(addr);
            return addr;
        }
        x = new Node(r);
        // Node being inserted is less than the node currently in view
        if (k < x.key) {
            x.left = insert(x.left, k, fields);
        }
        // Node being inserted is greater than the node currently in view
        else if (k > x.key) {
            x.right = insert(x.right, k, fields);
        }
        else {
            return r;
        }
        x.height = getHeight(x);
        x.writeNode(r);
        int heightDifference = getHeightDifference(r);
        if (heightDifference < -1) {
            if (getHeightDifference(x.right) > 0) {
                x.right = rightRotate(x.right);
                x.writeNode(r);
                return leftRotate(r);
            }
            else {
                return leftRotate(r);
            }
        }
        else if (heightDifference > 1) {
            if (getHeightDifference(x.left) < 0) {
                x.left = leftRotate(x.left);
                x.writeNode(r);
                return rightRotate(r);
            }
            else {
                return rightRotate(r);
            }
        }
        return r;
    }

    public void remove(int k) throws IOException {
        root = remove(root, k);
    }

    @SuppressWarnings("Duplicates")
    private long remove(long r, int k) throws IOException {
        if (r == 0) {
            return 0;
        }
        long ret = r;
        Node cur = new Node(r);
        if (cur.key == k) {
            if (cur.left == 0) {
                ret = cur.right;
                addToFree(r);
            }
            else if (cur.right == 0) {
                ret = cur.left;
                addToFree(r);
            }
            else {
                cur.left = replace(cur.left, cur);
                cur.height = getHeight(cur);
                cur.writeNode(r);
            }
        }
        else if (cur.key > k) {
            cur.left = remove(cur.left, k);
            cur.height = getHeight(cur);
            cur.writeNode(r);
        }
        else {
            cur.right = remove(cur.right, k);
            cur.height = getHeight(cur);
            cur.writeNode(r);
        }
        int heightDifference = getHeightDifference(r);
        if (heightDifference < -1) {
            if (getHeightDifference(cur.right) > 0) {
                cur.right = rightRotate(cur.right);
                cur.writeNode(r);
                return leftRotate(r);
            }
            else {
                return leftRotate(r);
            }
        }
        else if (heightDifference > 1) {
            if (getHeightDifference(cur.left) < 0) {
                cur.left = leftRotate(cur.left);
                cur.writeNode(r);
                return rightRotate(r);
            }
            else {
                return rightRotate(r);
            }
        }
        return ret;
    }

    @SuppressWarnings("Duplicates")
    private long replace(long r, Node change) throws IOException {
        Node cur = new Node(r);
        if (cur.right != 0) {
            cur.right = replace(cur.right, change);
            cur.height = getHeight(cur);
            cur.writeNode(r);
            int heightDifference = getHeightDifference(r);
            if (heightDifference < -1) {
                if (getHeightDifference(cur.right) > 0) {
                    cur.right = rightRotate(cur.right);
                    cur.writeNode(r);
                    return leftRotate(r);
                }
                else {
                    return leftRotate(r);
                }
            }
            else if (heightDifference > 1) {
                if (getHeightDifference(cur.left) < 0) {
                    cur.left = leftRotate(cur.left);
                    cur.writeNode(r);
                    return rightRotate(r);
                }
                else {
                    return rightRotate(r);
                }
            }
            return r;
        }
        else {
            change.key = cur.key;
            change.fields = cur.fields;
            addToFree(r);
            return cur.left;
        }
    }

    private long leftRotate(long n) throws IOException {
        Node cur = new Node(n);
        long curRight = cur.right;
        Node r = new Node(cur.right);
        cur.right = r.left;
        r.left = n;
        cur.height = getHeight(cur);
        cur.writeNode(n);
        r.height = getHeight(r);
        r.writeNode(curRight);
        return curRight;
    }

    private long rightRotate(long n) throws IOException {
        Node cur = new Node(n);
        long curLeft = cur.left;
        Node r = new Node(cur.left);
        cur.left = r.right;
        r.right = n;
        cur.height = getHeight(cur);
        cur.writeNode(n);
        r.height = getHeight(r);
        r.writeNode(curLeft);
        return curLeft;
    }

    private int getHeightDifference(long addr) throws IOException {
        Node cur = new Node(addr);
        Node left = new Node(cur.left);
        Node right = new Node(cur.right);

        if (cur.left == 0) {
            left.height = -1;
        }
        if (cur.right == 0) {
            right.height = -1;
        }
        return left.height - right.height;
    }

    private int getHeight(Node cur) throws IOException {
        Node left = new Node(cur.left);
        Node right = new Node(cur.right);
        if (cur.left == 0 && cur.right == 0) {
            return 0;
        }
        if (cur.left == 0) {
            return 1 + right.height;
        }
        if (cur.right == 0) {
            return 1 + left.height;
        }
        return 1 + Math.max(left.height, right.height);
    }

    private long getFree() throws IOException{
        long addr;
        f.seek(8);
        if (f.readLong() == 0) {
            addr = f.length();
        }
        else {
            f.seek(8);
            addr = f.readLong();
        }
        return addr;
    }

    public LinkedList<Integer> getFreeList() throws IOException {
        LinkedList<Integer> out = new LinkedList<>();
        long addr = getFree();
        if (addr != f.length()) {
            while (addr <= f.length()) {
                out.add((int) addr);
                f.seek(addr);
                addr = f.readLong();
                if (addr == 0) {
                    break;
                }
            }
        }
        return out;
    }

    private void addToFree(long r) throws IOException {
        long free1 = getFree();
        if (free1 == f.length()) {
            f.seek(8);
            f.writeLong(r);
            f.seek(r);
            f.writeLong(0);
            free = r;
        }
        else {
            f.seek(8);
            long temp = f.readLong();
            f.seek(8);
            f.writeLong(r);
            f.seek(r);
            f.writeLong(temp);
            free = r;
        }
    }
    private void removeFromFree(long r) throws IOException {
        if (r == f.length()) {
            f.seek(8);
            f.writeLong(0);
            free = 0;
        }
        else {
            f.seek(r);
            long temp = f.readLong();
            f.seek(8);
            if (temp == 0) {
                f.writeLong(0);
                free = 0;
            }
            else {
                f.writeLong(temp);
                free = temp;
            }
        }
    }

    private String printFields(long addr) throws IOException{
        Node x = new Node(addr);
        StringBuilder sb = new StringBuilder();
        for (int i = 0; i < numFields; i++) {
            for (int j = 0; j < fieldLengths[i]; j++) {
                sb.append(x.fields[i][j]);
            }
            sb.append(" ");
        }
        return sb.toString();
    }

    public LinkedList<String> find(int k) throws IOException {
        LinkedList<String> out = new LinkedList<>();
        f.seek(20);
        for (int i = 0; i < numFields; i++) {
            f.readInt();
        }
        while (f.getFilePointer() < f.length()) {
            Node cur = new Node(f.getFilePointer());
            if (cur.key == k) {
                StringBuilder sb = new StringBuilder();
                for (int i = 0; i < numFields; i++) {
                    for (int j = 0; j < fieldLengths[i]; j++) {
                        if (!(cur.fields[i][j] == '\0')) {
                            sb.append(cur.fields[i][j]);
                        }
                    }
                    out.add(sb.toString());
                    sb.delete(0, sb.length());
                }
                return out;
            }
        }
        return null;
    }

    public void print() throws IOException {
        f.seek(0);
        System.out.println(" [" + f.getFilePointer() + " Root: " + root + "] ");
        f.seek(8);
        System.out.println(" [" + f.getFilePointer() + " Free: " + free + "] ");
        f.seek(16);
        System.out.println(" [" + f.getFilePointer() + " numOtherFields " + numFields + "] ");
        f.seek(root);
        print(root);
        System.out.println();
    }

    private void print(long r) throws IOException {
        if (r == 0) {
            return;
        }
        Node x = new Node(r);
        print(x.left);
        f.seek(r);
        System.out.println(" [" + f.getFilePointer() + " " + x.key + " " + printFields(r) + " " + x.left + " " + x.right + " " + x.height + "] ");
        print(x.right);
    }

    public void close() throws IOException {
        f.seek(0);
        f.writeLong(root);
        f.seek(8);
        f.writeLong(free);
        f.close();
    }
}
