Add Answer to:
Please show all work and clearly lable solutions thank you!

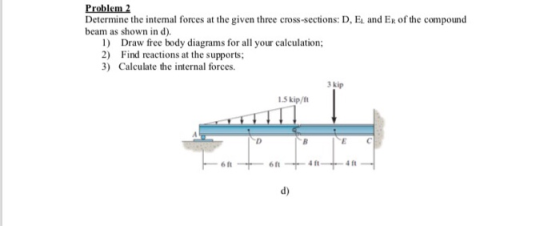

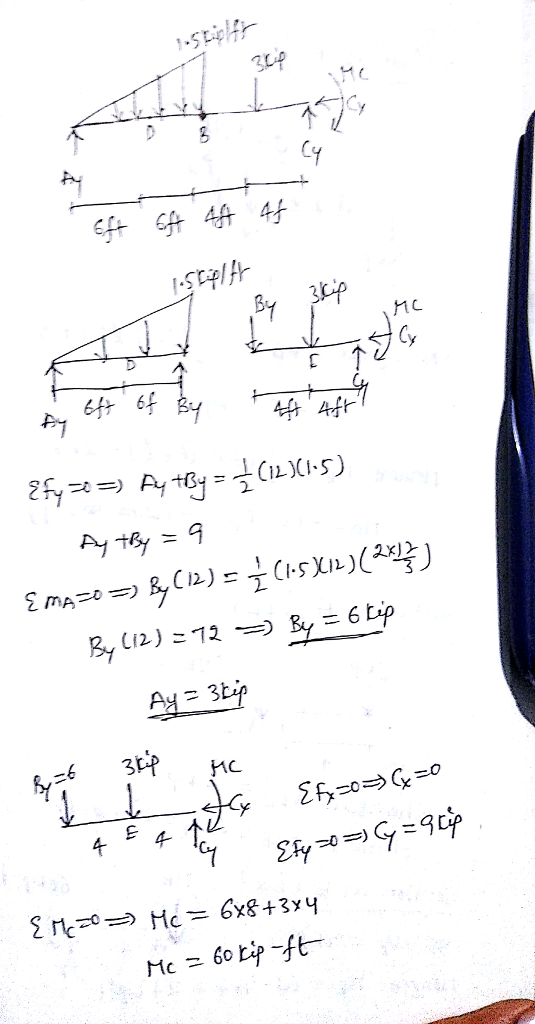

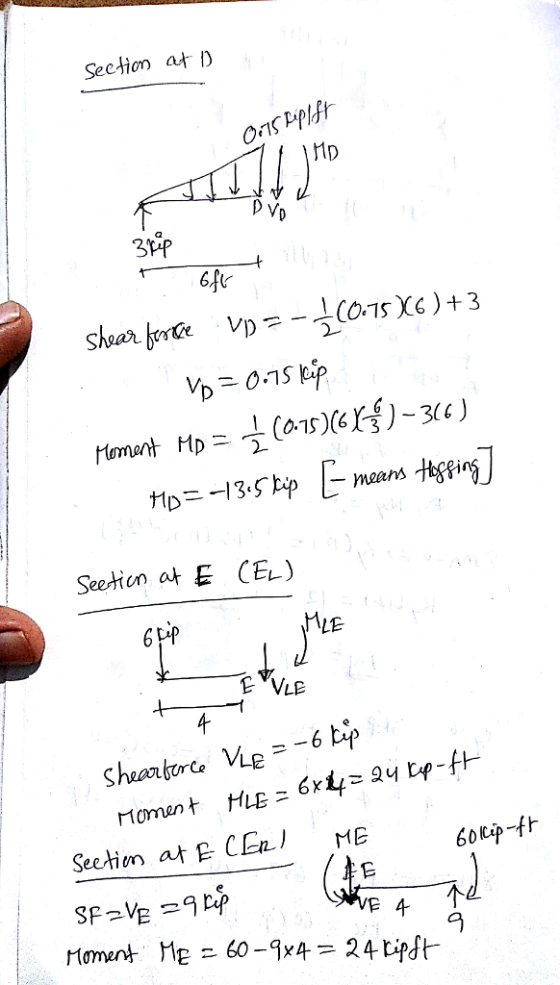

Problem2 Determine the intemal forces at...
mechanics materials To determine the reactive forces and moments acting on a beam; express the shear...
mechanics materials
To determine the reactive forces and moments acting on a beam; express the shear and bending moment as functions of their positions along the beam; and construct shear and bending moment diagrams. The cantilever beam shown is subjected to a moment at A and a distributed load that acts over segment BC, and is foxed at C. Determine the reactions at the support located at C. Then write expressions for shear and bending moment as a function of...
Shear and Bending Moment Diagrams Learning Goal: To determine the reactive forces and moments acting on...
Shear and Bending Moment Diagrams
Learning Goal:
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams.
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending...
ATTEMPT ALL QUESTIONS (All solutions must include free body diagrams) 1000 lb SO Question 1 Determine...
ATTEMPT ALL QUESTIONS (All solutions must include free body diagrams) 1000 lb SO Question 1 Determine the force in each member of the truss and state if the members are in tension or compression. (Draw the Free Body Diagram (FBD) of the structure and joints for solving internal forces) (35 points) 10 ft ---10 -- --10 ft-------10ft-- 600 lb
Please indicate all solutions and equations legibly. Thank you 2-23. Determine the reactions at the supports A and B of the compound beam. There is a pin at C. 2 kN/m 4 m 6 m 2-23. Determine...
Please indicate all solutions and equations legibly.
Thank you
2-23. Determine the reactions at the supports A and B of the compound beam. There is a pin at C. 2 kN/m 4 m 6 m
2-23. Determine the reactions at the supports A and B of the compound beam. There is a pin at C. 2 kN/m 4 m 6 m
I need an answer for question 3 with steps please. Thank you half the load over Problem 2 eben The beam shown below...
I need an answer for question 3 with steps please. Thank
you
half the load over Problem 2 eben The beam shown below with a uniformly span, with w3 kip/th and L 20 t shear force and bending moment diagrams for the beam using the standard sign convention Draw clear, complete and accurate Free Body Diagrams Problem 3: Siven: The beam below with a uniformly distributed load in the center span and concentrated moments at each end of the cantilever...
For the below beam draw the shear and momen diagram. On work submitted to the ELC...
For the below beam draw the shear and momen diagram. On work submitted to the ELC show a free body of the beam with all of its loads as well as the shear and moment diagrams. Label all points. Use the sign convention used in class. Assume that the cross- section of the beam is made out of a material with an allowable stress of 24 ksi. The cross-section is b inches wide and d inches tall. The b dimension...
Please show work and write clearly. Thank you. 6-21. The compound beam is subjected to a...
Please show work and write clearly. Thank you.
6-21. The compound beam is subjected to a uniform dead load of 200 lb/ft and a uniform live load of 150 lb/ft. Determine (a) the maximum negative moment these loads develop at A, and (b) the maximum positive shear at D Assume B is a pin and C is a roller. 5ft . Prob. 6-21
For the below beam draw the shear and moment diagram. On work submitted to the ELC...
For the below beam draw the shear and moment diagram. On work
submitted to the ELC show a free body of the beam with all of its
loads as well as the shear and moment diagrams. Label all points.
Use the sign convention used in class. Assume that the
cross-section of the beam is made out of a material with an
allowable stress of 24 ksi. The cross-section is b inches wide and
d inches tall. The b dimension is...
Please find all reactions with Moment Distribution Method & draw shear/moment diagrams. Please show all work. Thank you in advance! Problem #2: For the indeterminate beam shown below: a) Determin...
Please find all reactions with Moment Distribution Method &
draw shear/moment diagrams. Please show all work. Thank you in
advance!
Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw shear and moment diagrams. El is constant. Show your work. 18 kips 24 kips 6 k/ft 16 k/ft 10ft 12 ft 12ft
Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw...
Please answer question 4 thank you. Results from problem 3 are shown above Reinforced Concrete 3....
Please answer question 4 thank you. Results from problem 3 are
shown above
Reinforced Concrete
3. (40 pts) Analyze the following statically determinate frame by hand and clearly draw the shear force, axial force, and bending moment diagrams indicating relevant (maximum and minimum) values for each of the following load cases: a) Uniform dead load (qo) applied on the beam – must add beam self-weight (concrete) to this value. b) Uniform live load (q) applied on the beam. c) Horizontal...
mechanics materials
To determine the reactive forces and moments acting on a beam; express the shear and bending moment as functions of their positions along the beam; and construct shear and bending moment diagrams. The cantilever beam shown is subjected to a moment at A and a distributed load that acts over segment BC, and is foxed at C. Determine the reactions at the support located at C. Then write expressions for shear and bending moment as a function of...
Shear and Bending Moment Diagrams
Learning Goal:
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams.
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending...
ATTEMPT ALL QUESTIONS (All solutions must include free body diagrams) 1000 lb SO Question 1 Determine the force in each member of the truss and state if the members are in tension or compression. (Draw the Free Body Diagram (FBD) of the structure and joints for solving internal forces) (35 points) 10 ft ---10 -- --10 ft-------10ft-- 600 lb
Please indicate all solutions and equations legibly.
Thank you
2-23. Determine the reactions at the supports A and B of the compound beam. There is a pin at C. 2 kN/m 4 m 6 m
2-23. Determine the reactions at the supports A and B of the compound beam. There is a pin at C. 2 kN/m 4 m 6 m
I need an answer for question 3 with steps please. Thank
you
half the load over Problem 2 eben The beam shown below with a uniformly span, with w3 kip/th and L 20 t shear force and bending moment diagrams for the beam using the standard sign convention Draw clear, complete and accurate Free Body Diagrams Problem 3: Siven: The beam below with a uniformly distributed load in the center span and concentrated moments at each end of the cantilever...
For the below beam draw the shear and momen diagram. On work submitted to the ELC show a free body of the beam with all of its loads as well as the shear and moment diagrams. Label all points. Use the sign convention used in class. Assume that the cross- section of the beam is made out of a material with an allowable stress of 24 ksi. The cross-section is b inches wide and d inches tall. The b dimension...
Please show work and write clearly. Thank you.
6-21. The compound beam is subjected to a uniform dead load of 200 lb/ft and a uniform live load of 150 lb/ft. Determine (a) the maximum negative moment these loads develop at A, and (b) the maximum positive shear at D Assume B is a pin and C is a roller. 5ft . Prob. 6-21
For the below beam draw the shear and moment diagram. On work
submitted to the ELC show a free body of the beam with all of its
loads as well as the shear and moment diagrams. Label all points.
Use the sign convention used in class. Assume that the
cross-section of the beam is made out of a material with an
allowable stress of 24 ksi. The cross-section is b inches wide and
d inches tall. The b dimension is...
Please find all reactions with Moment Distribution Method &
draw shear/moment diagrams. Please show all work. Thank you in
advance!
Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw shear and moment diagrams. El is constant. Show your work. 18 kips 24 kips 6 k/ft 16 k/ft 10ft 12 ft 12ft
Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw...
Please answer question 4 thank you. Results from problem 3 are
shown above
Reinforced Concrete
3. (40 pts) Analyze the following statically determinate frame by hand and clearly draw the shear force, axial force, and bending moment diagrams indicating relevant (maximum and minimum) values for each of the following load cases: a) Uniform dead load (qo) applied on the beam – must add beam self-weight (concrete) to this value. b) Uniform live load (q) applied on the beam. c) Horizontal...
