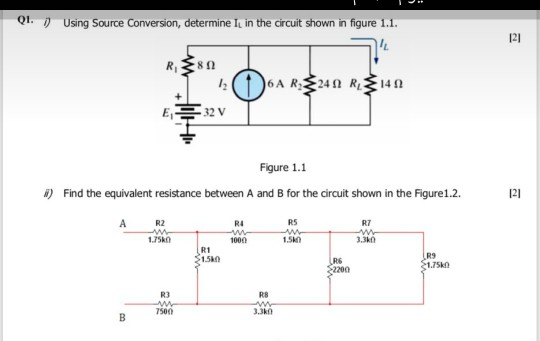

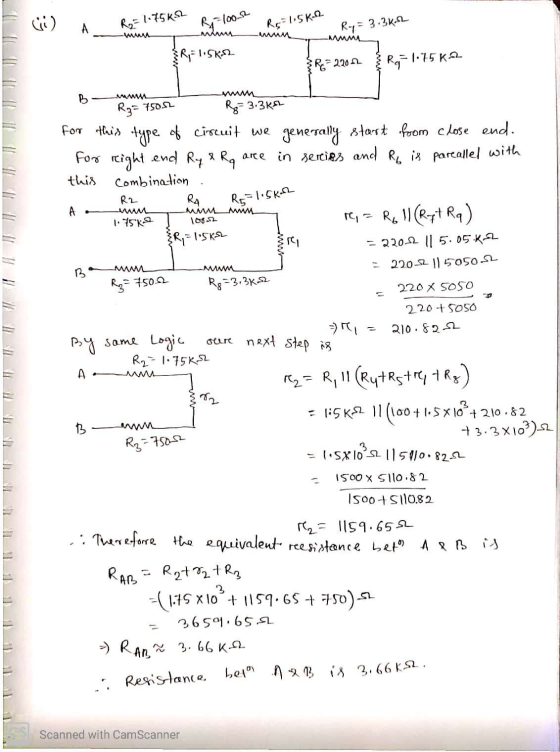

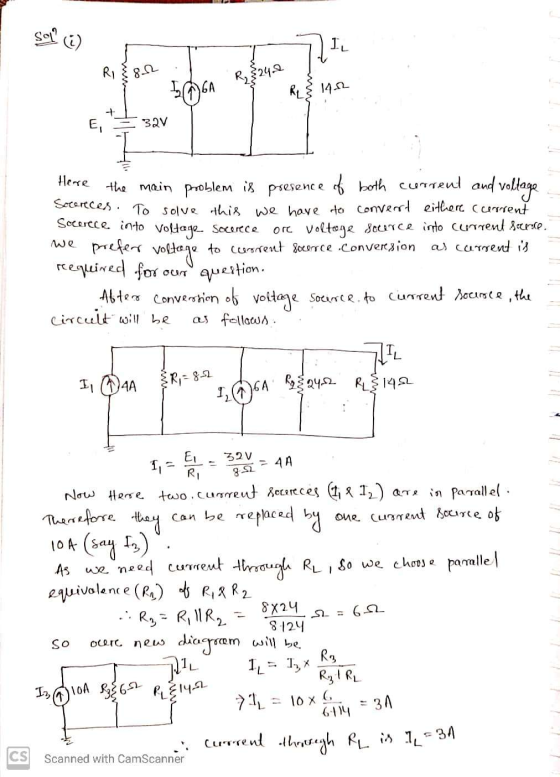

QI. Using Source Conversion, determine I in the circuit shown in figure 1.1. R38 7 E=...
In the circuit shown in Figure 6(b), an emf source E = 12 V and resistance r = 0.3.2 is connected to two resistors R1 = 1.52 and R2 = 1.212. Two capacitors C1 = 0.05 uF and C2 = 0.02 uF are connected in parallel to the resistors, and switch S is open. ię RB + + RB Figure 6(b) Calculate the current in the circuit and the charges Q1, Q2 on the capacitors after a long time. ANS:...
5.) For the circuit shown in Figure 5, (a) determine the Norton equivalent current. source IN and Norton equivalent parallel resistance RN with respect to load terminals a and b. Then use your Norton equivalent circuit in part (b) to find the load resistance R mas that would result in the maximum power transfer from the source, and calculate the maximum power. (120 pt, 60 pt) (a) RN IN P MAX (b) R LMAX 10n 30A S20n Ta 10A on...
Consider the electric circuit shown in the figure. Assume that V = 21.4 V, R1 = R2 = R3 = R4 = R5 = 3.00 2. R , R2 R3 RA RS What is the equivalent resistance of the circuit? Submit Answer Tries 0/12 What is the electric current flowing through resistor R2? Submit Answer Tries 0/12
Apply the following questions to both the circuit shown in
Figure (a) (resistors in series) and the circuit shown in Figure
(b) (resistors in parallel).
(a) Use Ohm's law with Kirchhoff's current and voltage laws to
derive equations for currents i1, i2 and
i (through Resistor R1, resistor R2, and
the voltage source , respectively) in terms of R1,
R2, and v.
(b) R1 and R2 can be interchanged with an
equivalent resistor rith resistance R without changing the
values...
Problem 3: R2 = 10 4 R2 = 10 For the circuit shown in the figure, find the equivalent resistance between a and b. R = 60 w R = 30 Rs = 20 R. = 302
What is the equivalent resistance in the circuit shown in the figure? R = 10 12 w V R2 2012 R, = 2012 R4 = 302 800 350 550 500
A circuit made up of 6 resistors is shown in the figure, with resistances R1 = 16 Ω, R2 = 35 Ω, R3 = 29 Ω, R4 = 73 Ω, R5 = 89 Ω, and R6 = 31 Ω. The total current going through the circuit is I = 11.5 A. Part (a) Express the equivalent resistance of the combination of R4, R5, and R6. Part (b) Express the equivalent resistance of the combination of R3, R4, Rs and R6. Part (c) Express...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=3 Ohms, R2=R3=R4=4 Ohms. What is the equivalent resistance Req for this circuit? RA w R R₂3 R₂5 0.8 ohms 1.5 ohms 3.14 ohms 0.67 ohms 2.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=10 Ohms, R2=R3=6 Ohms, R4=2 Ohms. What is the equivalent resistance Req for this circuit? R4 R 1 R2 R3 w O 0.50 ohms O 2.00 ohms O 3.33 ohms 5.25 ohms 0 7.50 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=10 Ohms, R2=R3=6 Ohms, R4=2 Ohms. What is the equivalent resistance Req for this circuit? R4 R 1 R2 R3 w O 0.50 ohms O 2.00 ohms O 3.33 ohms 5.25 ohms 0 7.50 ohms
