Create a circuit using Logisim that implements a memory register capable of storing a 4 bit binary number. You should investigate the different circuits that can be used to store a bit of memory and then utilize the one that meets the following requirements.

Your register circuit must be able to support the inputs detailed in the following diagram:

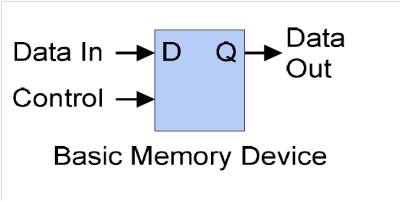

Data In--D Q. Data Out Control Basic Memory Device

Each bit of the register circuit must support a data in, a data out, and a control. The control functions such that the data value will only be changed when the control bit is toggled on.

The value in the register must be persistent and can only be changed when the control bit has been toggled.

You should develop and test the 4 bit register using Logisim.

When you have successfully developed a functioning 4 bit register, you should duplicate the circuit and add it to the two inputs of the ALU circuit below. Add a third register to the output of the ALU as well.

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

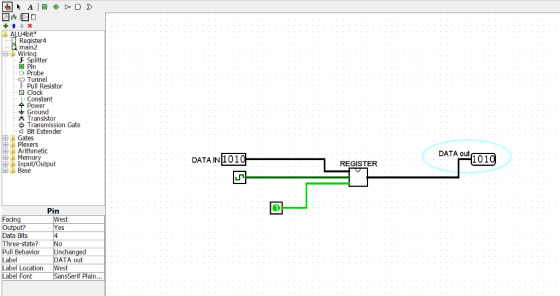

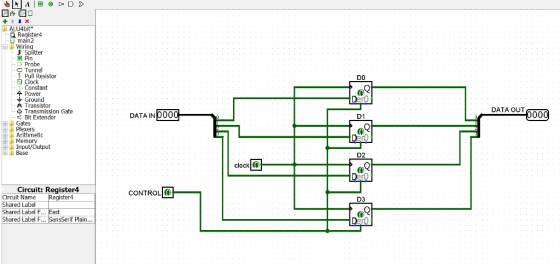

ALU4bit Register4 main2 Wiring F Splitter C Pin Probe Tunnel Pull Resistor DO Cock 1 Constant Power Ground A Transistor DATA OUT 000 .. Transmission Gate DATA IND000_ D1 Bit Extender Gates Plexers Arlthmetic 0 เป้ Memory 田、 Input/Output Base D2 clock Circuit: Register4 CONTROL0 Circuit Name Shared Label D3 Shared Label F.. SansSerif Plain...
