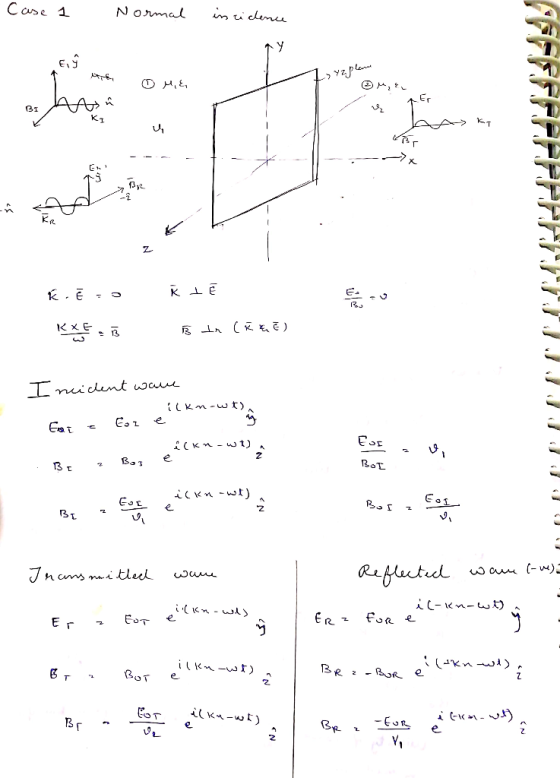

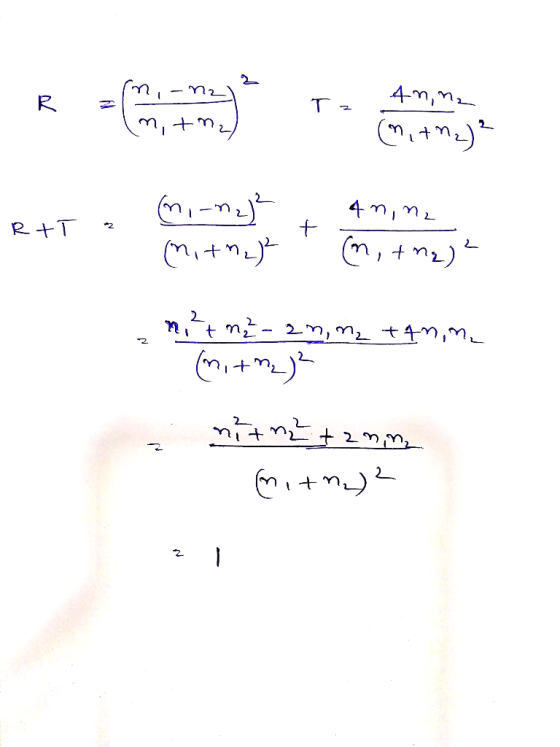

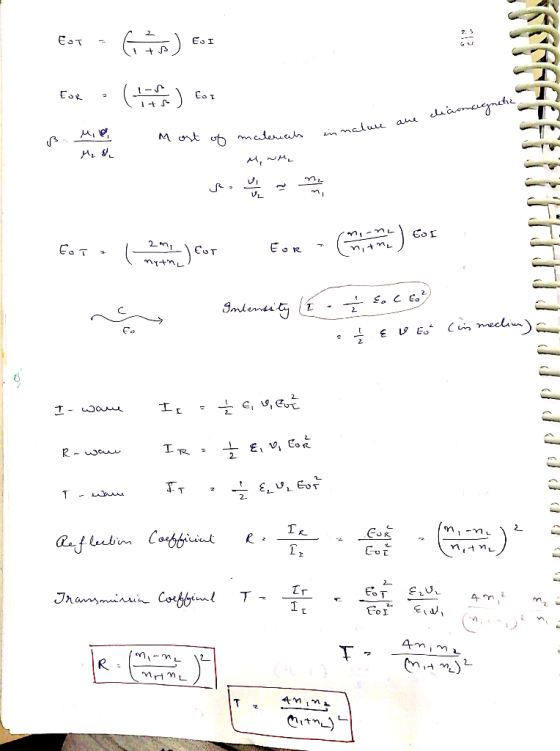

Show that the reflection and transmission coeffients sum to 1 (electrodynamics)
It doesn't matter if it's oblique or not. These values WILL sum
to 1. It's from conservation of energy. Maybe you need to solve

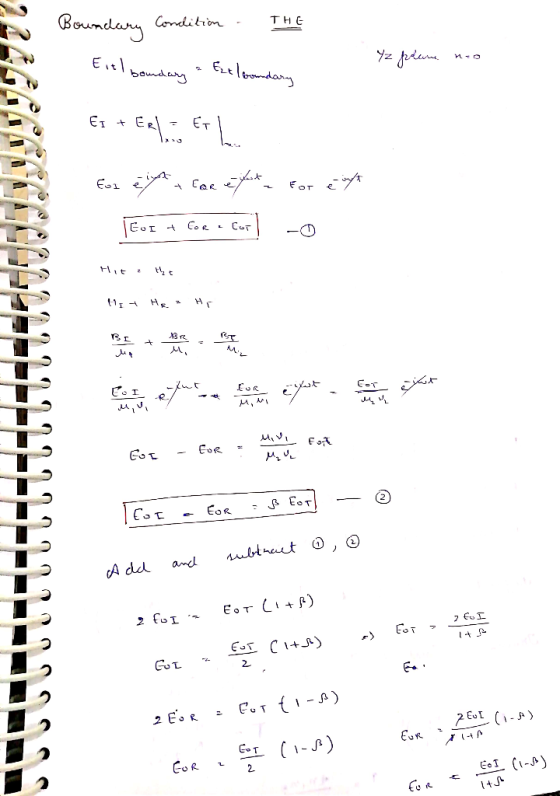

this from boundary conditions?
