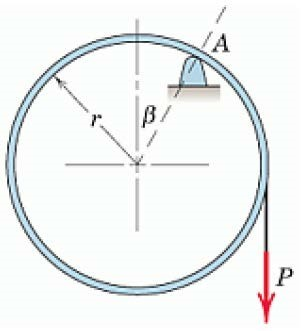

A ring (whose mass is m, the average
radius r and has a negligible thickness) is
suspended on support A. If the coefficient of friction between the
support and the ring
is μ,
a) Find the vertical P force that can slide the ring on the
support.
b) What is the value of the angle β when the ring is on the verge
of slide?

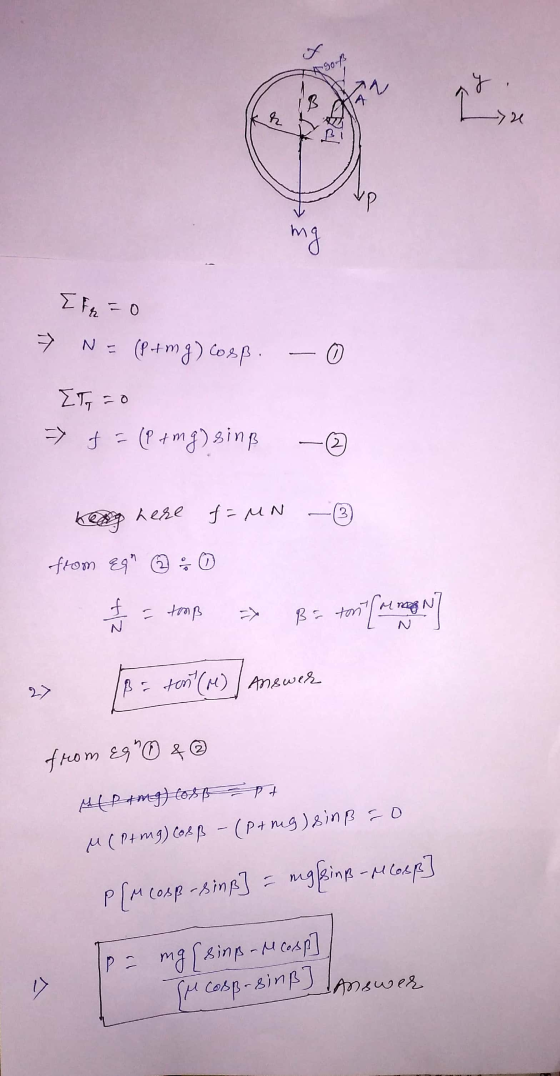

Homework Answers
Please RATE my answer
Thank you
