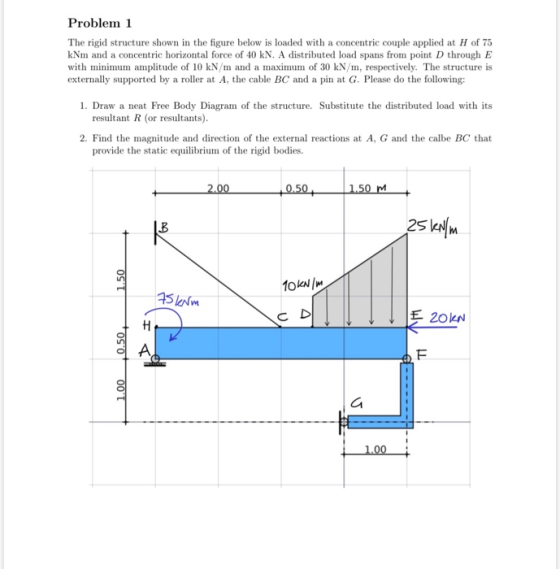

Problem 1 The rigid structure shown in the figure below is loaded with a concentric couple...
The rigid frame shown below is supported by Pin A and Roller C. [Point B is a rigid joint.] The frame supports a uniformly distributed load of 20 kN/m (downward) in Region BC, and a 250 kN point load (downward) located halfway between Pin A and rigid joint B. The modulus of elasticity of the entire frame is E = 200 GPa and the moment of inertia is I = 500 x 106 mm4. Determine the rotation (slope) at Joint...
Q1. Two rigid members (BCDE and EKN) are connected by a pin at E. The structure is supported by a pin at B and two rollers at D and N. An inclined distributed load is acting between E and K with the horizontal (12 kN/m) and vertical (16 kN/m) components. Neglect own weights and thicknesses of the members. f w 26.667 kN/m, 1.5m Draw necessary free body diagrams and determine the reaction forces at roller supports (D and N) and...
A loaded beam with a pin support at B and a roller support at C
is shown in Figure 1. The applied loads on the beam are: an
anti-clockwise point moment at A, a variably distributed load
between B and C, and a clockwise point moment at D.
A loaded beam with a pin support at B and a roller support at C is shown in Figure 1. The applied loads on the beam are: an anti-clockwise point moment at...
A loaded beam with a pin support at B and a rller support at C is shown in Figure 1. The applied loads on the beam are: an anti-clockwise point moment at A, a variably distributed load between B and C, and a clockwise point moment at D g kN/m f kNm h kN m A C 4 m 2 m 2 m Figure 1 The magnitude of the anti-clockwise point moment f in units of kN'm can be found...
Technical MechanicsCourse work: Problem 1.Input data: Rigid body (a x b) is connected with immovable base by plane bar system (plane truss) and loaded by plane forces. The sizes and load components are given below (table 1 and schemes).Define: Internal force of bars and reaction of supportsVar.Nr13.a, m2.2b, m1.7M1, kNm3.5F1, kNF2, kNq, kN/m2.44.51.5
PROBLEMS The pin-connected structure is loaded as wn in Figure 5. Bar CD is rigid, and is horizontal before load P is applied. Bar A is made of alumimm 0:- 75 GPa, cross-sectional area-1000 mm2 Bar Bis made of structural steel (E-200 GPa, cross sectional area- 500 20m P150N (a) (15 points) Draw the free body diagram for bar CD, and write down (but do not solve) the equations of static equilibrium for the stracture. (b) (5 points) Is it...
The beam shown in the figure is loaded with a distributed dead load G (including self-weight) and a distributed live load Q. Additionally, a point load Pq is acting on the structure. aPa d. The following values are used for this singly reinforced beam 29 MPa 500 MPa A 280 mm Ag 1350 mm Po 90 kN d 540 mm G 12 kN/m d. 60 mm .Q26 kN/m . b.350 mm I 7m do load factor for Pa .S300 mm...
Question 2. A truss structure is shown in Figure 2. Consider
points A and F have pin and roller supports, respectively. Use the
method of Section to determine the forces in IH, JH and CD
members.
3 KN H G 8 m J A F B C DE | 5 m ° 10 m POLE 5 m 1 m 1 m
Week 9, Question 1: Use the stiffness method to analyse the structure shown below. For the beam ABC, E = 2.108 kPa, A = 0,1 = 1.2e – 4 mº.. For the truss member DB, E = 200000000 kPa, A = 0.002 m². Also, take L = 4.8 m and a = 25 kN/m. 0 2 A B C III 7 L 3 4 Degrees of freedom D L -2L Calculate the the bending moment at Joint B following the...
Week 9, Question 1: Use the stiffness method to analyse the structure shown below. For the beam ABC, E = 2-108 kPa, A=00, I = 1.2e - 4 mº.. For the truss member DB, E = 200000000 kPa, A=0.002 m2. Also, take L=6.9 m and w=30 kN/m. Degrees of freedom l- _-2L Calculate the the bending moment at Joint B following the steps below: Part 1: Assemble the global structure stiffness matrix. Note that ABC is infinitely rigid in the...
