Part B. Please! Consider the circuit shown in Figure 2-1. (0) ist)) Figure 2-1 In the...

Question

Question

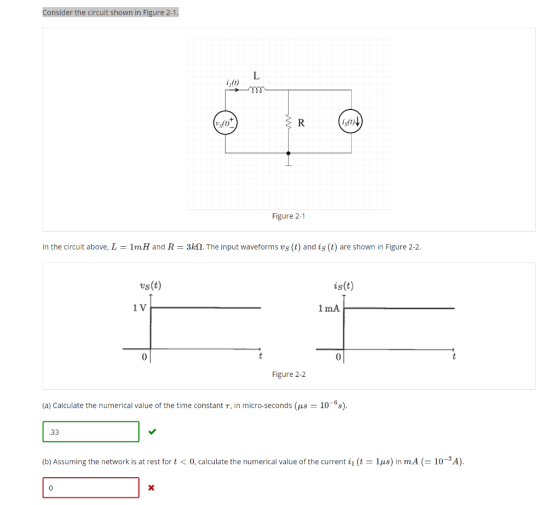

Consider the circuit shown in Figure 2-1. (0) ist)) Figure 2-1 In the circuit above, L = 1m H and R = 3k 2. The input wavefor

Part B. Please!

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

2. The switch in the circuit shown in Figure 1 has been in position 'a' for...

2. The switch in the circuit shown in Figure 1 has been in position 'a' for a long time. At t=0, the switch moves instantaneously to position b. a) Find the numerical expression for io(t) when t > 0. b) Find the numerical expression for volt) fort > 0 1 = 0 b! 51 602 45 A 2150 vo 20 10 mH 240 V 1
04 (2) A rectangular pulses, E (t) is applied to the RC circuit as shown in...

04 (2) A rectangular pulses, E (t) is applied to the RC circuit as shown in Figure Q4(2). (1) Show that the circuit can be modelled as RC + V = (1) -4(-2) (ii) Calculate the response, or with C) = 0 ning Laplace transform. mark b) Consider the network circuit as shown in Figure Q4 (b) with initial current and their derivatives are zero fort = 0. 1) Show the loop current is can be formulated as dig dt...
(1) Consider the RC circuit shown in Figure 1. For t<0 the switch is open, and...

(1) Consider the RC circuit shown in Figure 1. For t<0 the switch is open, and the charge stored on the capacitor is 0. At t-0 the switch is closed, and the voltage source begins charging the capacitor. Let R1-R2-220 Ω , C-0.47 μ F , Vs-5 V. (a) Write the differential equation as an expression for the capacitor voltage fort> 0 (i.e. write the differential equation) and calculate the time constant (b) Calculate the steady-state capacitor voltage R2 R1...

1. For the circuit shown in Figure 1 below, find the equation for valt) fort >0....

1. For the circuit shown in Figure 1 below, find the equation for valt) fort >0. Extra Credit: Find the time constant (T) and indicate how long it will take to fully discharge the capacitor voltage. Hint: You have to draw the following circuits at: t=0-, t=0+, RTH to ma 3r V (1) 4 9A SF 5 Figure 1
) For the circuit shown in Figure 1, analytically determine ve() and i() for 12 0,...

) For the circuit shown in Figure 1, analytically determine ve() and i() for 12 0, assuming the inductor has no stored energy at the switching event. For numerical verification purposes, your Matlab and Multisim plots should be over the range t 0,5] seconds. 1A 0.04FD) 8 2 1H Figure 1. Circuit for Problem I.
Consider the circuit in figure 4. a) find the thevenin equivalent of the network connected to...

Consider the circuit in figure 4. a) find the thevenin equivalent of the network connected to the inductor L1. b) find the mathmatical equations for the transient behavior of the current. iL(t) and the voltage vL(t) following the closing of the switch. c) determine the value of current iL at t= 20?s. Question 5 (10 points) (Obj. 4) Consider the circuit in Figure 4. a) Find the Thevenin equivalent of the network connected to the inductor L1.(4 points) mathematical equations...

2 capacitors are connected in a circuit in series as shown in the figure. (sorry for...

2 capacitors are connected in a circuit in series as shown in the figure. (sorry for the rough sketch, imagine everything is symmetrical) The capacitances are C1 = 12 μF, and C2 = 3.5 μF. [part a] Express the total capacitance C in terms of the 2 capacitances C1 & C2. C=___ [part b] calculate the numerical value of the total capacitance C in micro F? C=___ [part c] if the battery carries a voltage of delta-V, express the total...
8.43 The initial conditions for the circuit shown in Figure P8.43 are i(0) = 1 =...

8.43 The initial conditions for the circuit shown in Figure P8.43 are i(0) = 1 = 1 A, v(0) = V. = 2 V. FIGURE P8.43 w 40 a. Write a node equation at node a by summing the currents leaving node a fort 20. Find di(0)/dt. b. Write a node equation at node b by summing the currents leaving node b for t 2 0. c. Find the differential equation in i(t) and find the roots of the characteristic...
Problem # 1: Consider the circuit of Fig. 1: a) If vc(0) 8 V and i,(t)...

Problem # 1: Consider the circuit of Fig. 1: a) If vc(0) 8 V and i,(t) 40 S(t) mA, find Vc(s) and vc(t) fort>0 b) If ve(0) 1 V and ) 0.2 e u(t) A, find Vc(s) and v(t) fort>0 Problem #2: The circuit in Fig. 2 is at steady-state before t-0. a) Find V(s) and v(t) for t>0 b) Find I(s) and i(t) for t>0 5 S2 10 - 10u(t) V 6 H v(t) i(t). 130 F Figure 1...

Problem 1.20 The voltage and current at the terminals of the circuit element in (Figure 1)...

Problem 1.20 The voltage and current at the terminals of the circuit element in (Figure 1) are zero fort < 0. u= (1500t + 1)e 750t V t> 0; i= 70e 7500 mA, t> 0. Part A where t is in seconds Find the time (in milliseconds) when the power delivered to the circuit element is maximum. Express your answer using three significant figures. t = 0 ms Submit Previous Answers Correct Part B Find the maximum value of p...
