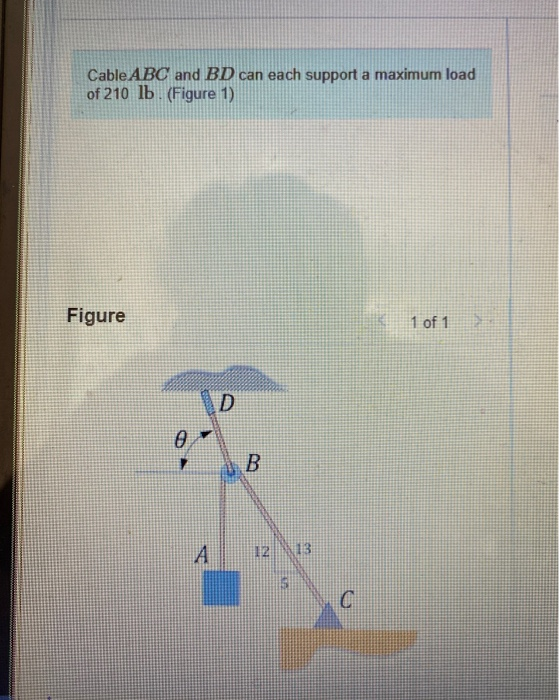

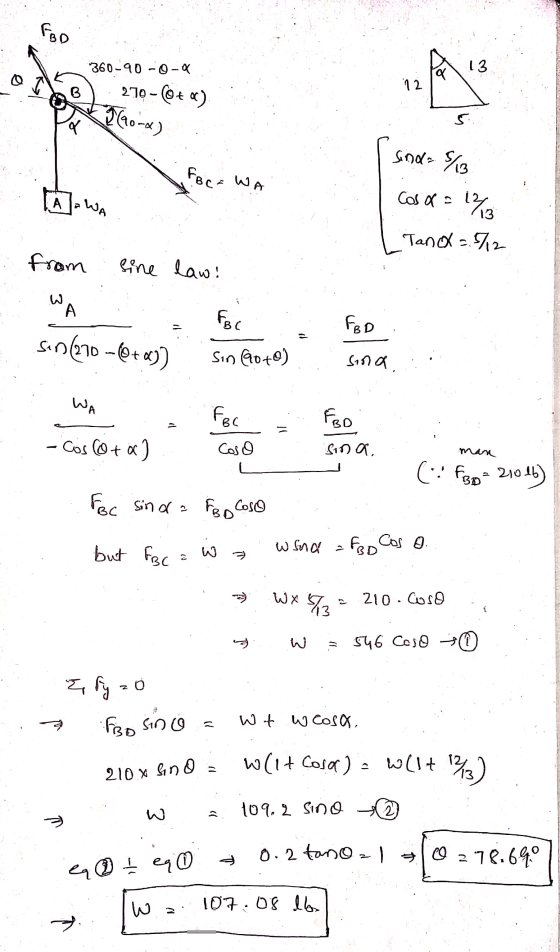

Cable ABC and BD can each support a maximum load of 210 lb. (Figure 1) Figure...
In the position shown in (Figure 1), cords AB and CAD can each support a maximum...
In the position shown in (Figure 1), cords AB and CAD can each support a maximum tension of 80 lb. Suppose that 7 = 19° and 90°. Determine the maximum weight W of the block that can be suspended in the position. Express your answer to three significant figures and include the appropriate units. W = Value Units Submit Request Answer Part B Figure < 1 of 1 > What is the angle @ for equilibrium? Express your answer using...
The cable CED can sustain a maximum tension of 900 lb before it fails. (Figure 1)...
The cable CED can sustain a maximum tension of 900 lb before it fails. (Figure 1) Part A Determine the greatest vertical force F that can be applied to the boom. Express your answer using three significant figures and include the appropriate units. F= Value Units Submit Request Answer Part B Also, what are the x, y, z components of reaction at the ball-and-socket joint A? Enter the I, y, and 2 components of the reaction using three significant figures...
Problem 5.38 The cantilevered jib crane is used to support the load of 780 lb. If...
Problem 5.38 The cantilevered jib crane is used to support the load of 780 lb. If the trolley T can be placed anywhere between 1.5ft < z < 7.3ft, determine the maximum magnitude of reaction at the supports A and B. Note that the supports are collars that allow the crane to rotate freely about the vertical axis. The collar at B supports a force in the vertical direction, whereas the one at A does not. (Figure 1) Part A...
Problem 2.78 Part A The two forces Fi and F2 acting at A have a resultant force of FR={-180 k lb. (Figure 1) Determine...
Problem 2.78 Part A The two forces Fi and F2 acting at A have a resultant force of FR={-180 k lb. (Figure 1) Determine the magnitude of F2. Express your answer to three significant figures and include the appropriate units. Value Units Submit Request Answer Figure 1 of 1 Part B Determine the coordinate direction angle a of F2. Express your answer using three significant figures. VA Tvec 30 ? 40 F 60 lb Submit Request Answer Part C Determine...
Part A-Finding the tension in cable AC A weight of 175 lb acts at C on...
Part A-Finding the tension in cable AC A weight of 175 lb acts at C on the strut. Find the magnitude of the tension in cable AC. Learning Goal: Express your answer to three significant figures and include the appropriate units. To apply the condition of equilibrium to three- dimensional systems and solve for unknown forces. View Available Hint(s) As shown, a mass is being lifted by a strut that is supported by two cables AC and CD. The dimensions...
Part A A uniform live load of 250 lb/ft and a single live concentrated force of...
Part A A uniform live load of 250 lb/ft and a single live concentrated force of 1700 lb are to be placed on the beam. The beam has a weight of 150 lb/ft. Assume the support at A is a pin and B is a roller. Follow the sign convention. (Figure 1) Determine the maximum vertical reaction at support B Express your answer using three significant figures. (By) max(t) SubmitP ous Answers Request Answer XIncorrect: Try Again; 5 attempts remaining...
Three-Dimensional Force Systems cable AC Part A Finding the tension Learning Goal: weight of 115 lb...
Three-Dimensional Force Systems cable AC Part A Finding the tension Learning Goal: weight of 115 lb acts at C on the strut. Find the magnitude of the tension in cable AC To apply the condition of equilibrium to three-dimensional systems and solve for unknown forces. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) As shown, a mass is being lifted by a strut that is supported by two cables AC and CD. The...
Problem 5.14 The girder is subjected to the uniform load 35k/ft and is in connected at...
Problem 5.14 The girder is subjected to the uniform load 35k/ft and is in connected at B. The cable has a parabolic shape Part A Determine the minimum tension in the cable. Express your answer using three significant figures. 0 AED 1 vec O ? Submit Request Answer Part B Determine the maximum tension in the cable. Express your answer using three significant figures. 50 A4 vec * 0? Submit Request Answer
Part A The resultant of the three forces acting on the bracket is FR-(-330 k} lb...
Part A The resultant of the three forces acting on the bracket is FR-(-330 k} lb Note that F3 lies in the z-y plane Figure 1) Specify the magnitude of F Express your answer to three significant figures and include the appropriate units. FValue Units Figure く 1of1 Submit Request Answer Part B Fs400 Ib Yi Specify the coordinate direction angle a of F Express your answer using three significant figures. 30 F2 200 lb Bi vec ▼ Part C...
Problem 5.32 Determine the magnitude of force at the pin A and in the cable BC...
Problem 5.32 Determine the magnitude of force at the pin A and in the cable BC needed to support the 540-lb load. Neglect the weight of the boom AB. (Figure 1) PartA Determine the magnitude of force at the pin A Express your answer to three significant figures and include the appropriate units. FA1.13 lb Submit Incorrect, Try Again: 2 attempts remaining Figure < 1of1 > Part B Determine the force in the cable BC Express your answer to three...
In the position shown in (Figure 1), cords AB and CAD can each support a maximum tension of 80 lb. Suppose that 7 = 19° and 90°. Determine the maximum weight W of the block that can be suspended in the position. Express your answer to three significant figures and include the appropriate units. W = Value Units Submit Request Answer Part B Figure < 1 of 1 > What is the angle @ for equilibrium? Express your answer using...
The cable CED can sustain a maximum tension of 900 lb before it fails. (Figure 1) Part A Determine the greatest vertical force F that can be applied to the boom. Express your answer using three significant figures and include the appropriate units. F= Value Units Submit Request Answer Part B Also, what are the x, y, z components of reaction at the ball-and-socket joint A? Enter the I, y, and 2 components of the reaction using three significant figures...
Problem 5.38 The cantilevered jib crane is used to support the load of 780 lb. If the trolley T can be placed anywhere between 1.5ft < z < 7.3ft, determine the maximum magnitude of reaction at the supports A and B. Note that the supports are collars that allow the crane to rotate freely about the vertical axis. The collar at B supports a force in the vertical direction, whereas the one at A does not. (Figure 1) Part A...
Problem 2.78 Part A The two forces Fi and F2 acting at A have a resultant force of FR={-180 k lb. (Figure 1) Determine the magnitude of F2. Express your answer to three significant figures and include the appropriate units. Value Units Submit Request Answer Figure 1 of 1 Part B Determine the coordinate direction angle a of F2. Express your answer using three significant figures. VA Tvec 30 ? 40 F 60 lb Submit Request Answer Part C Determine...
Part A-Finding the tension in cable AC A weight of 175 lb acts at C on the strut. Find the magnitude of the tension in cable AC. Learning Goal: Express your answer to three significant figures and include the appropriate units. To apply the condition of equilibrium to three- dimensional systems and solve for unknown forces. View Available Hint(s) As shown, a mass is being lifted by a strut that is supported by two cables AC and CD. The dimensions...
Part A A uniform live load of 250 lb/ft and a single live concentrated force of 1700 lb are to be placed on the beam. The beam has a weight of 150 lb/ft. Assume the support at A is a pin and B is a roller. Follow the sign convention. (Figure 1) Determine the maximum vertical reaction at support B Express your answer using three significant figures. (By) max(t) SubmitP ous Answers Request Answer XIncorrect: Try Again; 5 attempts remaining...
Three-Dimensional Force Systems cable AC Part A Finding the tension Learning Goal: weight of 115 lb acts at C on the strut. Find the magnitude of the tension in cable AC To apply the condition of equilibrium to three-dimensional systems and solve for unknown forces. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) As shown, a mass is being lifted by a strut that is supported by two cables AC and CD. The...
Problem 5.14 The girder is subjected to the uniform load 35k/ft and is in connected at B. The cable has a parabolic shape Part A Determine the minimum tension in the cable. Express your answer using three significant figures. 0 AED 1 vec O ? Submit Request Answer Part B Determine the maximum tension in the cable. Express your answer using three significant figures. 50 A4 vec * 0? Submit Request Answer
Part A The resultant of the three forces acting on the bracket is FR-(-330 k} lb Note that F3 lies in the z-y plane Figure 1) Specify the magnitude of F Express your answer to three significant figures and include the appropriate units. FValue Units Figure く 1of1 Submit Request Answer Part B Fs400 Ib Yi Specify the coordinate direction angle a of F Express your answer using three significant figures. 30 F2 200 lb Bi vec ▼ Part C...
Problem 5.32 Determine the magnitude of force at the pin A and in the cable BC needed to support the 540-lb load. Neglect the weight of the boom AB. (Figure 1) PartA Determine the magnitude of force at the pin A Express your answer to three significant figures and include the appropriate units. FA1.13 lb Submit Incorrect, Try Again: 2 attempts remaining Figure < 1of1 > Part B Determine the force in the cable BC Express your answer to three...
