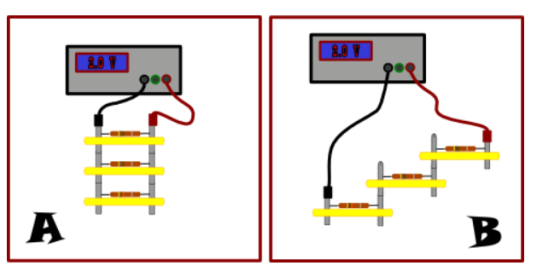

Using the picture above, as a reference, think and predict what will occur int he following scenarios.
3.2.1 You have three resistances with different values, both setups connected to a power supply set at equal voltage.
? Which of the setups has the greater overall resistance : A or B
Explain your reasoning.
3.2.2 You only have access to the set up A controls. What do you have to do, to have the same current in both setups?. Lower Voltage of A, or Rise the voltage in B.
Explain your reasoning.
Homework Answers
B has a greater overall resistance as all resistance in B are in series while in A these are in parallel.
as resistance of A is less than B so for same current we have to lower the voltage of A as we can only control set up A
