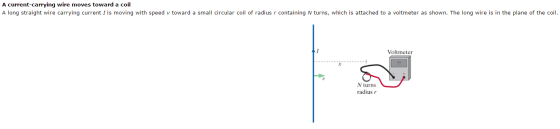

Hello, I need help deriving these 3 equations:
1) By using Ampere's Law, how do I obtain the magnitude of B of
the magnetic field around the current-running wire? Using
, I and A as variables.
2) How do I get the magnetic flux of B(net) inside the loop with
N turns? I need this equation with the sign included. Using
, N, I, x, r as variables
3). Lastly, I need the equation for the emf of the voltmeter?
Using
, N, I, r, v and z as variables.

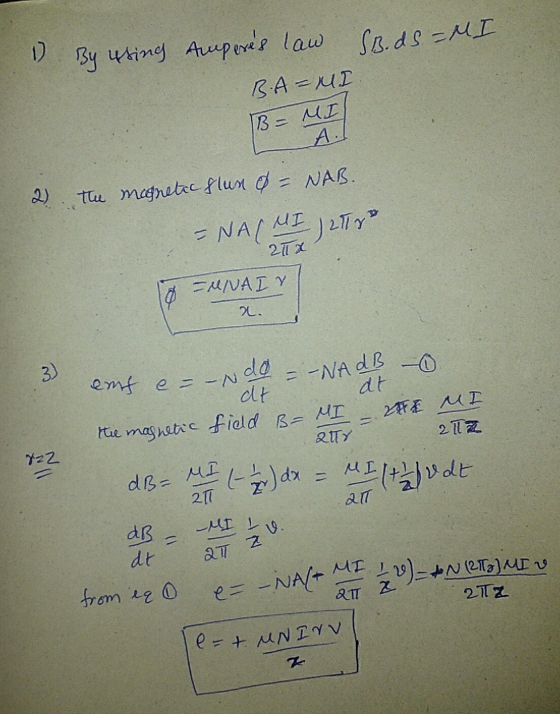

Homework Answers
Add Answer to:
Hello, I need help deriving these 3 equations:
1) By using Ampere's Law, how do I...
4. Ampere's Law and THEORY Using Ampere's Law, for N loops of radius R carying a current I, the m...
4. Ampere's Law and THEORY Using Ampere's Law, for N loops of radius R carying a current I, the magnetic field at the center of the loops B is given by: Ho is the permeability of free space given by 4Tx107 T.m/A where The direction of the B due to loops is perpendicular to the plane of the loop. İftheplaneof the loop is initially (without running any current through the loop) is aligned in the direction of Earth's magnetic field...
Magnetic Field. I have no idea how to solve these questions, please help!!!! MAGNETIC FIELDS SUMMARY...
Magnetic Field. I have no idea how to solve these questions,
please help!!!!
MAGNETIC FIELDS SUMMARY You will measure how the magnetic field, B, produced by a coil varies with the current, I, in the coil. From your measurements, you w calculate the permeability constant Ho. Lastly you w use a magnet to induce a voltage in the coil. THEORY The magnetic field Batthe center of a circular coil (solenoid) of radius R with N turns that carries a current...
3. Starting with Ampere's law, find the magnetic field at r from the axis, inside and...
3. Starting with Ampere's law, find the magnetic field at r from the axis, inside and outside of a circular toroid, figure below, of major radius R and minor radius a, wrapped with N turns of wire carrying current I. Evaluate for r=R=5cm, a=2cm,N=1000,1=3A
Question 3 A long solenoid with n turns per unit length of current I is wrapped around a cylindri...
Question 3 A long solenoid with n turns per unit length of current I is wrapped around a cylindrical magnetic core of permeability μ μ0Hm The cylindrical core, extending along the z-axis, has radius α n turns per unit length, current I per turn Magnetic material of μ (a) If the solenoid is considered as infinite in length, it can be shown that the magnetic field, expressed in cylindrical coordinates, is: r> a Apply Ampere's law, using the rectangular path...
i need help please show work Question 5 (1 points) (#661761) Magnetic Flux) A 50 cm...
i
need help please show work
Question 5 (1 points) (#661761) Magnetic Flux) A 50 cm x 85 cm rectangular loop of wire is located in a region of uniform magnetic field with a magnitude of Bo = 3.37 Telsa, and oriented perpendicular to the wire loop. The wire is reshaped into a circular loop of radius r = 43 cm. What is the change in the magnitude of the the magnetic flux through the loop as a result of...
I have 3 questions, please show work so I can learn how to do the problems...
I have 3 questions, please show work so I can learn how to do the problems on my own. 1. An electric field E in N/C, right causes the m in grams ball in the figure to hang at a T degree angle. What is the charge on the ball in nanoCoulombs? 2. What is the magnetic flux through the loop shown in the figure? B=5.49 T, G=1.73 T and L=46.62 cm. 3. A straight wire carrying a current of...
#8 Gauss's Law and The Shell Theorem Consider a hollow sphere with charge uni- formly distributed...
#8 Gauss's Law and The Shell Theorem Consider a hollow sphere with charge uni- formly distributed on its surface. Suppose the total charge is Q, where Q may be positive or negative Recall that Gauss's law as we have seen it is: Qenclosed ΣΕ A = EO where A = 47tr2 is the total area of the Gaussian surface Suppose the sphere radius is Ro and r > Ro. In terms of Gauss's Law, the reason why the electric field...
problem-3 plz 3. (40) In Fig.1, (a) 0 r< a, find B, VxB, and magnetic energy...
problem-3 plz
3. (40) In Fig.1, (a) 0 r< a, find B, VxB, and magnetic energy per unit length. (b) a<r< b, find B, VxB, and magnetic energy per unit length. (c) b<r, findB, VxB, and magnetic energy per unit length. (d) Find the inductance per unit length. (3+3+4)x3+ 10) 4. (20) Fig. 2 shows a side view of a cylindrical bar magnet. (a) Find H di for a dashed contour and explain. (b) Describe the direction of H inside...
plz do all 10 multible choises for the three pictures QUESTION 1 Curly electric fields, L.o....
plz do all 10 multible choises for the three pictures
QUESTION 1 Curly electric fields, L.o. non-Coulomb electric fields, can ONLY be generated by CHANGING magnetic fields True False QUESTION 2 The units of magnetic flux are T m? True False QUESTION 3 The coll encircles a solenold with a decreasing magnetic field; this results in an emf in the surrounding coll. There are 100 turns in the coil. The em through one turn of a collis 0.0001 V ignore...
4. Ampere's Law and THEORY Using Ampere's Law, for N loops of radius R carying a current I, the magnetic field at the center of the loops B is given by: Ho is the permeability of free space given by 4Tx107 T.m/A where The direction of the B due to loops is perpendicular to the plane of the loop. İftheplaneof the loop is initially (without running any current through the loop) is aligned in the direction of Earth's magnetic field...
Magnetic Field. I have no idea how to solve these questions,
please help!!!!
MAGNETIC FIELDS SUMMARY You will measure how the magnetic field, B, produced by a coil varies with the current, I, in the coil. From your measurements, you w calculate the permeability constant Ho. Lastly you w use a magnet to induce a voltage in the coil. THEORY The magnetic field Batthe center of a circular coil (solenoid) of radius R with N turns that carries a current...
3. Starting with Ampere's law, find the magnetic field at r from the axis, inside and outside of a circular toroid, figure below, of major radius R and minor radius a, wrapped with N turns of wire carrying current I. Evaluate for r=R=5cm, a=2cm,N=1000,1=3A
Question 3 A long solenoid with n turns per unit length of current I is wrapped around a cylindrical magnetic core of permeability μ μ0Hm The cylindrical core, extending along the z-axis, has radius α n turns per unit length, current I per turn Magnetic material of μ (a) If the solenoid is considered as infinite in length, it can be shown that the magnetic field, expressed in cylindrical coordinates, is: r> a Apply Ampere's law, using the rectangular path...
i
need help please show work
Question 5 (1 points) (#661761) Magnetic Flux) A 50 cm x 85 cm rectangular loop of wire is located in a region of uniform magnetic field with a magnitude of Bo = 3.37 Telsa, and oriented perpendicular to the wire loop. The wire is reshaped into a circular loop of radius r = 43 cm. What is the change in the magnitude of the the magnetic flux through the loop as a result of...
#8 Gauss's Law and The Shell Theorem Consider a hollow sphere with charge uni- formly distributed on its surface. Suppose the total charge is Q, where Q may be positive or negative Recall that Gauss's law as we have seen it is: Qenclosed ΣΕ A = EO where A = 47tr2 is the total area of the Gaussian surface Suppose the sphere radius is Ro and r > Ro. In terms of Gauss's Law, the reason why the electric field...
problem-3 plz
3. (40) In Fig.1, (a) 0 r< a, find B, VxB, and magnetic energy per unit length. (b) a<r< b, find B, VxB, and magnetic energy per unit length. (c) b<r, findB, VxB, and magnetic energy per unit length. (d) Find the inductance per unit length. (3+3+4)x3+ 10) 4. (20) Fig. 2 shows a side view of a cylindrical bar magnet. (a) Find H di for a dashed contour and explain. (b) Describe the direction of H inside...
plz do all 10 multible choises for the three pictures
QUESTION 1 Curly electric fields, L.o. non-Coulomb electric fields, can ONLY be generated by CHANGING magnetic fields True False QUESTION 2 The units of magnetic flux are T m? True False QUESTION 3 The coll encircles a solenold with a decreasing magnetic field; this results in an emf in the surrounding coll. There are 100 turns in the coil. The em through one turn of a collis 0.0001 V ignore...
