fluid mechanichs
Previous Problem List Next (10 points) Pump K, =1.5 elbow Pipe length 500 ft...
Fluid mechanics. please answer all the questions. The pump shown in Figure delivers a head of...
Fluid mechanics.
please answer all the questions.

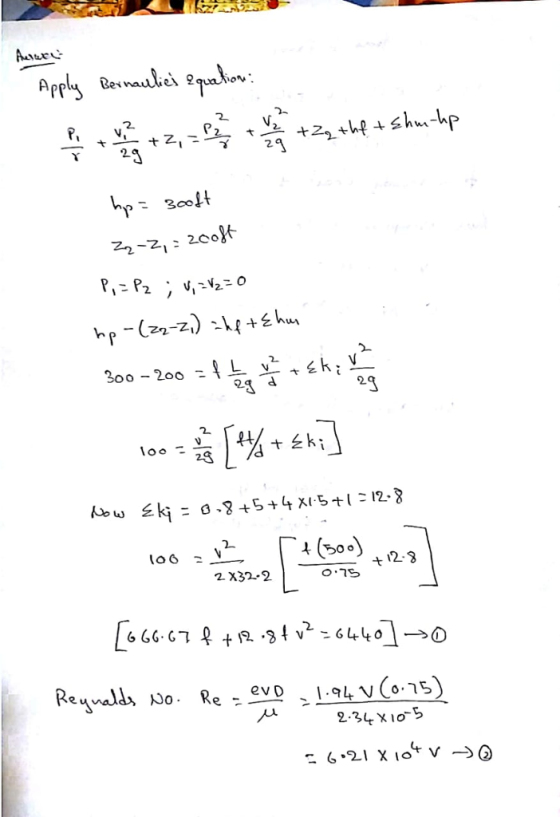

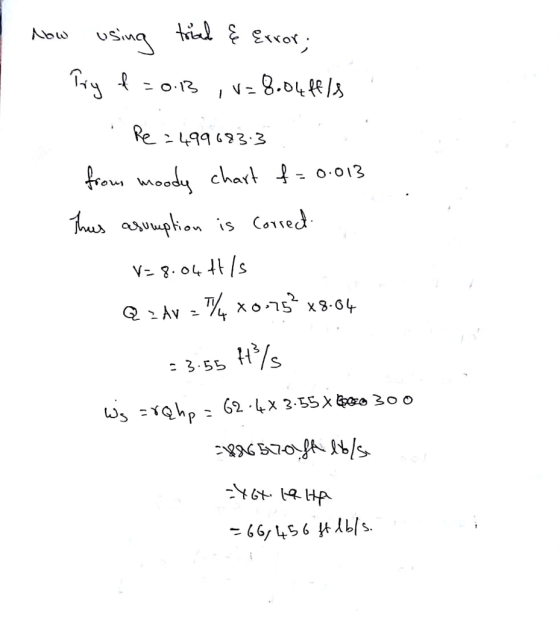

The pump shown in Figure delivers a head of 250 ft to the water. One wants to determine the power that the pump adds to the water. The difference in elevation of the two ponds is 200 ft Assume Re 7.7 x 105, Density is 1.94 slug/ft? and viscosity is 2.34x10%bs/ft2 a. State assumptions and setup Bernoulli equation between two reservoirs (5 b. Derive equation which relates friction factor, f and velocity from...
6) Calculate the required Horsepower of the pump in the below system. The working fluid is water. (25 Points) 0.5 oud -343 PDA 75 FT K.0.5 K.1.5 1.5 10 PUMP 25 Ft 6) Calculate the required H...
6) Calculate the required Horsepower of the pump in the below system. The working fluid is water. (25 Points) 0.5 oud -343 PDA 75 FT K.0.5 K.1.5 1.5 10 PUMP 25 Ft
6) Calculate the required Horsepower of the pump in the below system. The working fluid is water. (25 Points) 0.5 oud -343 PDA 75 FT K.0.5 K.1.5 1.5 10 PUMP 25 Ft
08 % Problem 4 (25 points) A 38-in pump is installed for the system below. The...
08 % Problem 4 (25 points) A 38-in pump is installed for the system below. The pipe (100-cm diameter) has a friction factor of 0.012 and a total length of 20 km. Given that Ke = 0.5 (pipe entrance) and Ke = 1.0 (pipe exit). For water at 80 degrees Fahrenheit, estimate the flow rate (in gpm), the power required (in horsepower, HP), and the net positive suction head required (in ft) to avoid cavitation for the system when the...
Fluid mechanics.
please answer all the questions.
The pump shown in Figure delivers a head of 250 ft to the water. One wants to determine the power that the pump adds to the water. The difference in elevation of the two ponds is 200 ft Assume Re 7.7 x 105, Density is 1.94 slug/ft? and viscosity is 2.34x10%bs/ft2 a. State assumptions and setup Bernoulli equation between two reservoirs (5 b. Derive equation which relates friction factor, f and velocity from...
6) Calculate the required Horsepower of the pump in the below system. The working fluid is water. (25 Points) 0.5 oud -343 PDA 75 FT K.0.5 K.1.5 1.5 10 PUMP 25 Ft
6) Calculate the required Horsepower of the pump in the below system. The working fluid is water. (25 Points) 0.5 oud -343 PDA 75 FT K.0.5 K.1.5 1.5 10 PUMP 25 Ft
08 % Problem 4 (25 points) A 38-in pump is installed for the system below. The pipe (100-cm diameter) has a friction factor of 0.012 and a total length of 20 km. Given that Ke = 0.5 (pipe entrance) and Ke = 1.0 (pipe exit). For water at 80 degrees Fahrenheit, estimate the flow rate (in gpm), the power required (in horsepower, HP), and the net positive suction head required (in ft) to avoid cavitation for the system when the...
