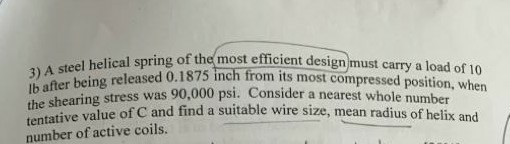

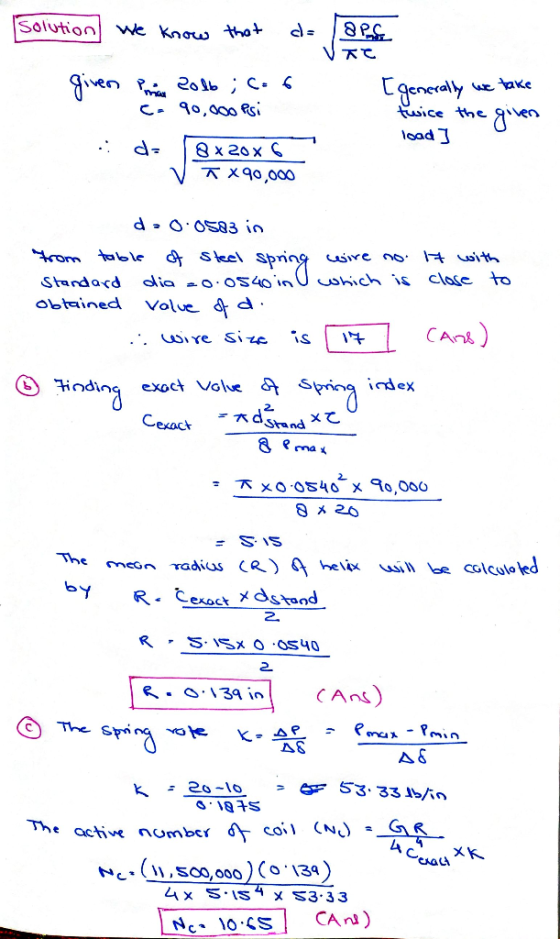

lb after being released 0.1875 inch the shearing stress was 90,000 psi. tentative value of C...
Not the answer you're looking for?
Ask your own homework help question.
Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
2. A helical compression spring is made from No. 8 steel wire and is to carry a 100 lb static load at a deflection of 1 inch. The outside coil diameter of the spring is 0.972 inches. The spring ends...
2. A helical compression spring is made from No. 8 steel wire and is to carry a 100 lb static load at a deflection of 1 inch. The outside coil diameter of the spring is 0.972 inches. The spring ends are squared. Assume the torsional yield strength of the wire is 80000 psi, and the shear modulus is 11.4 Mpsi, determine (a) The static load corresponding to the yield strength. (b) The deflection that would be caused by the load...
2. A helical compression spring is made from No. 8 steel wire and is to carry a 100 lb static load at a deflection of 1 inch. The outside coil diameter of the spring is 0.972 inches. The spring ends are squared. Assume the torsional yield strength of the wire is 80000 psi, and the shear modulus is 11.4 Mpsi, determine (a) The static load corresponding to the yield strength. (b) The deflection that would be caused by the load...
